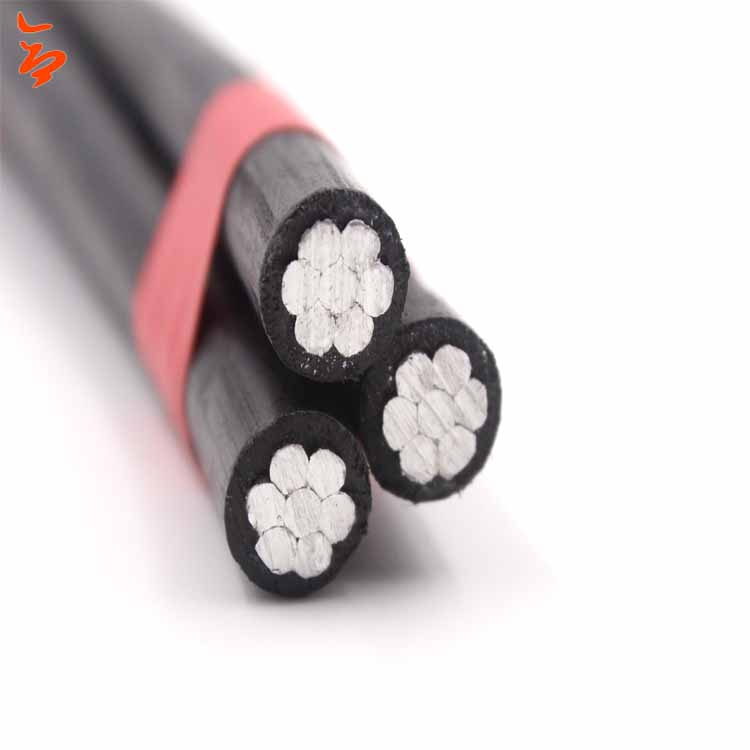

duplex triplex quadruplex service drop bunded ABC cable for secondary distribution cable
Product Description
Our company founded in 2008, with own factory, have more business experience.
Ⅰ Applications
Primarily used for overhead service application such as street lighting,outdoor lighting,and temporary service for construction, To be used at voltage of 600V to 2200V phase-to-phase or less at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross liked polyethylene insulated conductors.
Ⅱ Standards
We could produce the cable according to many standards: ICEA S-76-474,
ICEA S-95-658,ICEA S-61-402,ICEA S-66-524.NFC 33. IEC
we will do our best to meet your requirements
ⅢSpecification
1. Phase conductor: Aluminum wire, 1350-H19
2. Neutral Conductor : Aluminum wire 1350-H19, All Alloy Aluminum Conductor 6201, Aluminum Conductor Steel Reinforced
3. The material of insulation: XLPE,PE,PVC
4. The Voltage: 600V-2200V
Triplex ACSR cable
| Code Word | AWG or Kcmil | Neutral ACSR | Phase AAC |
| Paludina | 2*6 AWG+1*6AWG | 6+1 /1.68 | 1/4.11 |
| Voluta | 2*6 AWG+1*6AWG | 6+1 /1.68 | 7/1.56 |
| Calma | 2*4 AWG+1*4AWG | 6+1 /2.12 (1.52) | 7/1.96 |
| Periwinkle | 2*4 AWG+1*4AWG | 6+1 /2.12 (1.14) | 7/1.96 |
| Conch | 2*2 AWG+1*2AWG | 6+1 /2.67 | 7/2.47 |
| Neritina | 2*1/0 AWG+1*1/0 AWG | 6+1 /3.37 | 7/3.12 |
| Cenia | 2*1/0 AWG+1*1/0 AWG | 6+1 /3.37 | 19/1.89 |
