triplex service drop aluminum insulated conductor for overhead cable
Product Description
1.Application
Service drop cable (ABC CABLE) is mainly used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting, it improves the safety and reliance of electrified wire netting.
2.Construction
Phase conductor: round stranded aluminum or AAAC, ACSR
Neutral conductor:round stranded aluminum or AAAC, ACSR
Lighting conductor: round stranded aluminum or AAAC, ACSR
Insulation :LDPE.HDPE. XLPE.PVC
3.Standard
IEC60502,NFC33209,BS7870,ANSI/ICEA S-76-474 AS/NZS 3560 etc.
''SANHE'' cable can also design and produce for special application requirment.
4.Specification Examples
| Code Name | AWG or KCMIL | Bare Neutral Messenger | Phase conductor | Weight | |||
| AAC | AAC | Insul. thickness (mm) | (kg/km) | ||||
| No. | Dia.(mm) | No. | Dia.(mm) | ||||
| patella | 2x6awg+6awg | 7 | 1.56 | 7 | 1.56 | 1.14 | 150 |
| Oyster | 2x4awg+4awg | 7 | 1.96 | 7 | 1.96 | 1.14 | 224 |
| Clam | 2x2awg+2awg | 7 | 2.47 | 7 | 2.47 | 1.14 | 338 |
| Murex | 2x1/0awg+1/0awg | 7 | 3.12 | 7 | 3.12 | 1.52 | 544 |
| Nassa | 2x2/0awg+2/0awg | 7 | 3.5 | 7 | 3.5 | 1.52 | 671 |
| melita | 2x3/0awg+3/0awg | 19 | 2.39 | 19 | 2.39 | 1.52 | 830 |
| portunus | 2x4/0awg+4/0awg | 19 | 3.25 | 19 | 3.25 | 1.52 | 1476 |

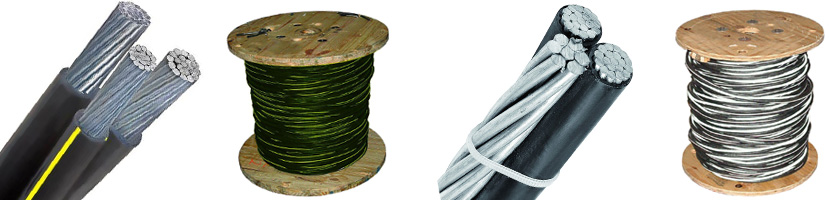

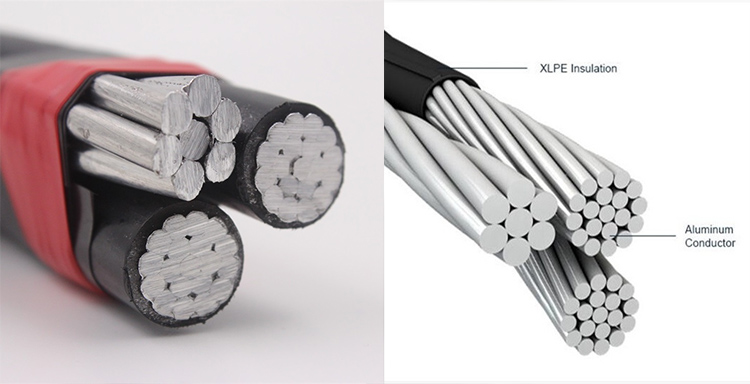

5.Pictures
Company Information
Zhengzhou Sanhe Cable Co ltd ,founded in 2008, with excellent export experience.
The company's products are popular in more than 20 countries and regions
including the Middle East, Africa, South America and Southeast Asia. We have won
a lot of favor and approval of foreign cable importers. SANHE insists on the faith of
"honesty with good quality", the good quality means the most important feature
for us.
