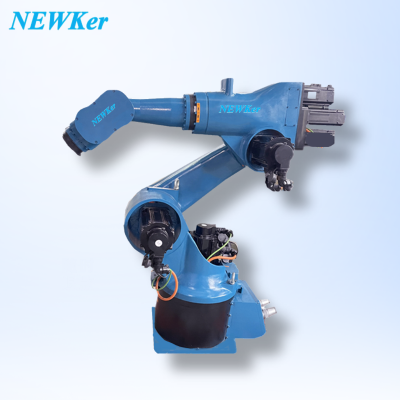

6 Axis Robotic Arm Industrial Robot Arm for Welding/Forging/Palletizing Manipulator Price similar wi

Price ￥5.00
Comments 0
Hits 506
Quantity
+-
stock999Piece

Company integrity file
more>New
Robotic Arm Manipulator 6 Axis Robot Cnc Welding Polishing Carry Robot Arm similar with Abb Kuka 6 Axis Cnc Robot Industrial Mechanical Palletizer/Milling/Welding Robot Arm Kit industrial manufacture robot arm such as 5 axis robotic arm manipulator and 6 axis milling robot arm 6 axis industrial robot arm and more mechanical robotic arm manipulator similar with kuka robotic arm manipulator Diy Industrial High Precision Palletizer Milling Dof Robot Arm Overhead+Robo robotic arm manipulator 6 axis industrial and mechanical milling robot arm similar with kuka robot a

Overview

Essential details

  • Applicable Industries:

  • Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company

  • Showroom Location:

  • Turkey, Viet Nam, Indonesia, Pakistan, India, Russia, Thailand

  • Video outgoing-inspection:

  • Provided

  • Machinery Test Report:

  • Provided

  • Marketing Type:

  • Ordinary Product

  • Warranty of core components:

  • 2 years

  • Core Components:

  • PLC, Gearbox, Motor, CNC, Robot arm, Robot control, OEM, robot arm

  • Condition:

  • New

  • Vertical Travel(mm):

  • 350mm, 700mm, 1300mm, 1500mm

  • Horizonal Travel(mm):

  • 700mm, 1300mm, 1500mm, 2100mm

  • Place of Origin:

  • China

  • Brand Name:

  • NEWKer

  • Weight:

  • 68 kg

  • Dimension(L*W*H):

  • optional

  • Power:

  • 220V

  • Warranty:

  • 1 Year

  • Weight (KG):

  • 60 kg

  • Speed:

  • 1.5m/s

  • Interface:

  • USB+RS232 Communction Port

  • Function:

  • PLC+CNC+Teach

  • Port:

  • 48input 32output

  • CPU:

  • ARM(32bits)+DSP+FPGA

  • User Store Room:

  • 256Mb (Expand to 2G)

  • Program:

  • Teach function, G code

  • After Warranty Service:

  • online support

  • After-sales Service Provided:

  • Video technical support

Supply Ability

  • Supply Ability

  • 10000 Set/Sets per Month

Packaging & delivery

  • Packaging Details

    • 1.Industrial packing(Design Humane CNC ROUTER FOR WOODWORKING NewKer-CNC NEW1000TDca series 5 axis): plastic bag +styrofoam+ carton +wooden pallets
    2.Commercial packing: plastic bag+styrofoam+ carton
    3.As the clients' requirement

  • Port

    • Any port of china

  • Picture Example:

  • package-img

    package-img

  • Lead time:

  • Quantity(sets)1 - 1>1
    Lead time (days)10To be negotiated

Video Description

00:00

00:26

VR

No. of controller shaft

4-8 axiscontrol panelof industrial automatic motoman arc welding robot(j1,j2,j3,j4,j5,j6)

Specify the welding current:

AA/S


Type:

Bus absolute type and servo type

Specify the welding voltage:

VV/SS


The most programminng:

±99999.999

Start welding:

AS*


Encoder of motor:

17bits and 23bits

End welding:

AE*


I/O points:

48*32 I/O

Start swing weld:

WS*


0-10V analog:

2 ways 0-10V analog

End swing weld:

WE


Operation:

Teach,Repaly,Remote

Movement of joint:

MJ or MOVJ or GO


Wifi function:

Connect with phone to send program

Movement od straight line:

ML or MOVL or G1


RS 232 function:

RS232 to connect with PC

Movement of arc:

MC or MOVC or G6


USB function:

Update and send program

Specify the speed:

V=to specify the feeding speed


Program mode:

Teach,G code,Technics parameter

Specify the ratio:

VJ= to specify the feeding ratio


Motion function:

Point to point,straight line,arc

The speed of changing track:(smoothness

PL=


Instructions:

Movement,Logic,Calculation,Technics,G code in CNC

Start parallel translation:

SN*


Coordinate system:

Joint,User,Tool,World

End parallel translation:

SF


PLC function:

Edit the ladder,8000 steps

Read the current position:

PK***


Alarm information:

Emergency,drive,maintenance,error of starting arc and coordinate

Calculate the value of two position:

PX***=PT***-PT***


Limit function:

Soft limit

Start searching:

ST*P*


Algorithm of controller:

1)Vertical multi joint serial tobot;
2)Vertical articulated parallelogram robot; 3)Vertical multi joint L shape wrist robot;
4)Pole coordinate robot;
5)SCARA robot;
6)Delta robot;
7)Special robot;

End searching

SE


Password protection:

Multilevel random password protection

Straight earching instruction:

SX+/-,SY+/-,SZ+/-,


User macro program:

Have

The parallel value:

PX***=PX***+PX*** and PX***=PX***-PX***


Electrical gear function:

Have

G code:

The same as the standard cnc controller


Application:

Welding,palletizing,Painting,Tending,Laser cutting and other special robor arm

Marco program instructions:

If..THEN;WHILE;GOTO;WAT


Product features

Never Crush the machine, the system with memorial function (Abosolute feature)

Needn't install hard limit in this 4-8 joint axis welding robot controller all kit and back to the zero point (Abosolute feature)

Use phone connect with controller by Wifi function, easier and more convenient to send program (NewKer feature)

G code program, only NewKer-CNC robot controller could work with G code program like cnc controller (NewKer feature)

Teach function with technics parameter, easier to operate (NewKer feature)

PLC and macro program are all opened (NewKer feature)

only one cable come out from controller, easier to connect (Bus type feature)

Multilevel random password protection, more safety (NewKer feature)


robot arm robot arm robot arm robot arm robot arm robot arm robot arm robot arm robot arm robot arm
