New intelligent on-off power supply for indoor communication power cabinet ZXDU58S151 V5.0 power cab


Price 1940.00
Comments 0
Hits 980
Quantity
+-
stock9999999Piece

Company integrity file
more>New
ZTE ZXDU58 S151 V5.0 telecom power supply system cabinet without rectifier Power Distribution Unit 48V power supply cabinet APM30H ZTE Telecom Power Supply System Cabinet ZXDU58 B121 New VERTIV/Emerson Netsuer 531C A2-y2 Y1 Y3 Communication Power Supply DC Cabinet 300A Outdoor Power Supply Cabinet AMP30H Efficient 48V Rectifier Module Emerson R48-1800 R48-1800A High Switching Power Supply Cabinet Emerso


Product Description

 New intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinet





ZTE ZXDU58 S151 Features

1. High efficiency and energy saving, saving 8% of electricity costs, rectifier efficiency up to 94%, module sleep technology to further achieve energy savings. The module sleep power consumption is less than 2W, which is the lowest level in the industry.

2. The volume is compact, saving the machine room area up to 50% built-in 3 sets of batteries, saving floor space; front maintenance, front wiring, so that the power supply can be installed against the wall.

3. Easy maintenance, reduce maintenance costs.

4. The simple dynamic environment monitoring function, by configuring the EMU board and the corresponding sensors, can monitor the environmental environment such as ambient temperature, humidity, access control, door magnetism, flooding, smoke, etc., and complete monitoring at a lower cost, which is convenient for the province. money.

5. Strong lightning surge protection capability to improve system reliability and reduce maintenance costs.



ZTE's indoor base station power system ZXDU58 S151 is a -48V intelligent unattended communication power supply with 30A switching rectifier. The rack height is 2.0 meters. The AC input of the system adopts three-phase five-wire system, the rated phase voltage is 220V, and it is equipped with Class C lightning protection. The DC standard configuration has a maximum output of 180A and can be built with 3 sets of batteries. This product is widely used in various communication fields such as switching equipment, microwave communication, mobile base stations and optical fiber transmission.



 Model ZXDU58S151
 AC Input 220/380V ~ 3W/N/PE 50/60Hz Max.24A
 DC Output -48V  ~ 10KW Max.187A
 Recitifer ZXD1500
 Dimensions (H*W*D) 2000*600*600mm
 Product Size 2200*800*800mm
 Weight 125kg
 Operation temperature -33 to 55°C
 Storage temperature -40 to 70°C
 Altitude < 3000m
 Equalizing Charging Temp.Coefficient built-in fan, forced convection



                                                           New intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinetOrder from us!













New intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinetNew intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinetNew intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinetNew intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinet

Product application





 New intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinet

More Products



New intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinet









New intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinet





Company Introduction



New intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinet







New intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinet

                                                 New intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinetClick to send inquiry!

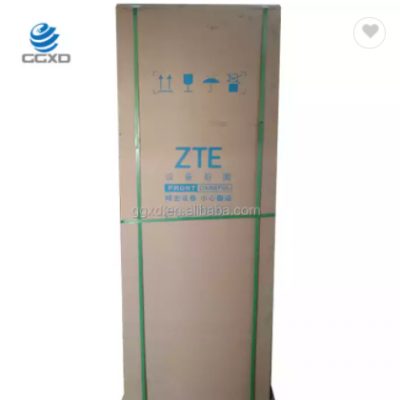

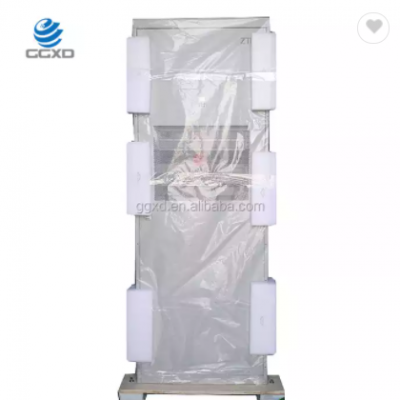

Packaging

New intelligent on-off power supply for indoor communication power cabinet  ZXDU58S151 V5.0 power cabinet
