Arrangement list of secondary socket interlock mechanism 5GP.573.010
No. | Name. | Drawing no. | Qty.(pc/set) |
1 | Bracket | 8GP.043.017.1-4 | 1 |
2 | Roller | 8GP.224.021 | 1 |
3 | Extension spring | 8GP.288.015 | 1 |
4 | Connection rod welding joint | 5GP.174.017 | 1 |
5 | Axis | 8GP.200.020 | 1 |
6 | Openg ring 6 | GB896-88 | 2 |
7 | Bolt | 8GP.900.010 | 1 |
8 | Nut M5 | GB6170-86 | 1 |
9 | Washer 5 | GB93-87 | 1 |
10 | Washer 5 | GB97.1-85 | 1 |

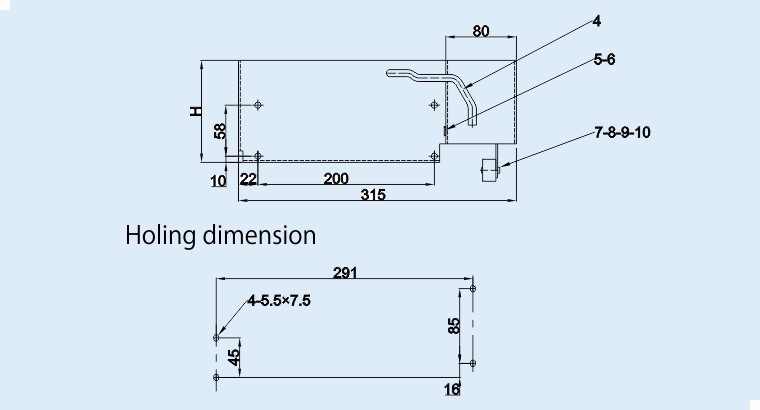

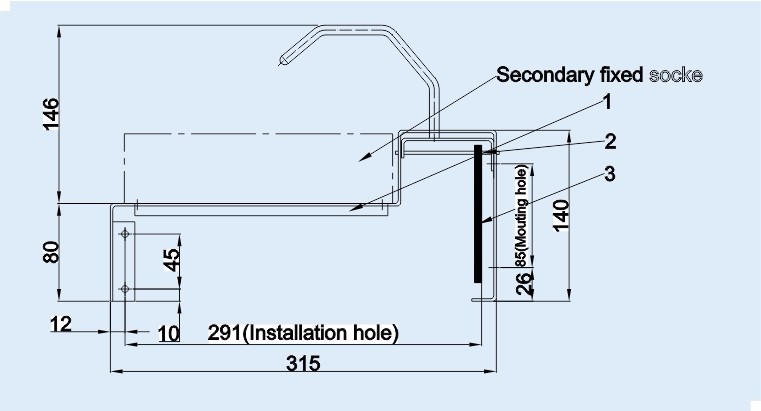

Selection table of secondary socket interlock mechanism 5GP.573.010 middle bracket 8GP.043.017.1-4
Name | code | H(mm) | Remark |
Bracket | 8GP.043-017.1 | 136 | For 1250A VD4 circuit breaker and other same size handcart |
8GP.043.017.2 | 116 | For GPVN Circuit breaker handcart |
8GP.043.017.3 | 126 | For 1600-2500A VD4 circuit breaker handcart and other same size handcart |
8GP.043.017.4 | 80 | For 3150A VD4 circuit breaker handcart and other same size handcart |
8GP.043.017.14 | 100 | For special |
Note:please specify the bracket code when orde
