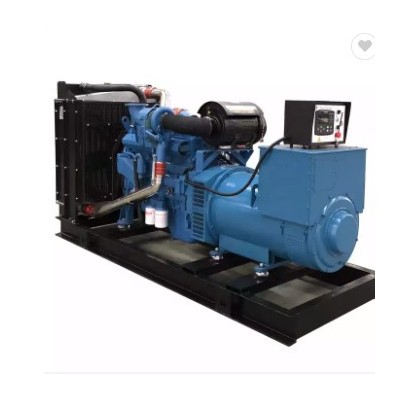

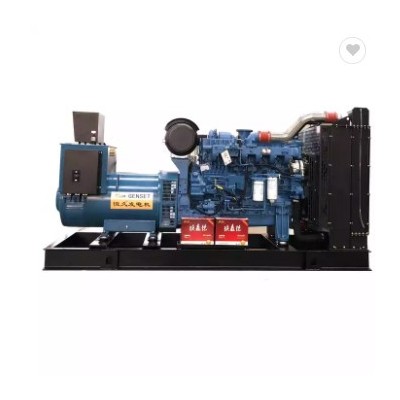

Top Sales 160kw 200kva Diesel Generator Set Factory Direct Sales With Yuchai Of High Quality For Real Estate Use
Diesel Generator Set Data Sheet |
Generator Model | GF160YC |
Power | 160kw/200kva |
Rated Voltage | 400V |
Frequency | 50HZ |
Power Factor | 0.8(Lagging) |
Dimension(L*W*H) | 2950*1050*1665mm |
Weight | 2200kg |
Diesel Engine Data Sheet |
Brand | YUCHAI |
Model | YC6MK285L-D20 |
Number of Cylinder | 6 |
Speed | 1500RPM |
Cycle | Four Stroke |
Cooling Method | Water Cooling |
Bore*Stroke | 120*145mm |
Speed Governor | Electronic |
Power | 212kw |
Lubrication oil Capacity | 195L |
Fuel Consumption | 195g/kw.h |
Starting Method | 24V Electrical Starting |
Alternator Data Sheet |
Brand | HENGTONG |
Model | HTI-160 |
Power | 160kw/200kva |
Connecting Type | 3 Phase and 4 Wires |
Number of Bearing | Single |
Protection Grade | IP23 |
Insulation Class | H |
Exciter Type | Brushless, Self-excited, AVR Controller |
Altitude | ≤1000M |
Controller |
Optional Controller Brand | Smartgen/Deepsea/ComAp etc. |
Control System
Manual Controller
- A current, Voltage, Frequency simulative meters;
- An oil pressure, a water thermometer and indicator lights;
- 4 additional protection functions are provided optional;
- Start/ stop manually.
