Overview

Essential details

• Model Number:

• CR18XSCN12DxxY

• Type:

• Capacitive Proximity Sensor

• Place of Origin:

• Shanghai, China

• Brand Name:

• LANBAO

• Usage:

• Positioning

• Output:

• NPN/PNP

• Description:

• Capacitive sensor

• Mounting:

• Non-flush

• Sensing distance:

• 12mm

• Adjust the distance:

• 3...15mm

• Supply voltage:

• 10-30VDC

• Adjustment method:

• Multi-turn potentiometer

• Standard test object:

• Fe 36*36*1t(Grounded)

• Certificate:

• CE UL

• Protection degree:

• IP 68

• Housing material:

• PBT

• Connection type:

• 2m PVC Cable

Supply Ability

• Supply Ability

• 10000 Piece/Pieces per Week

Packaging & delivery

• Packaging Details

LANBAO M18 Waterproof Non-flush 12mm Capacitive Switch Sensor with 2m Cable
standard cartons

• Port

shanghai ningbo guangzhou shenzhen

• Lead time:

• Quantity(pieces)	1 - 1000	>1000
  Lead time (days)	15	To be negotiated

Video Description

00:00

00:43

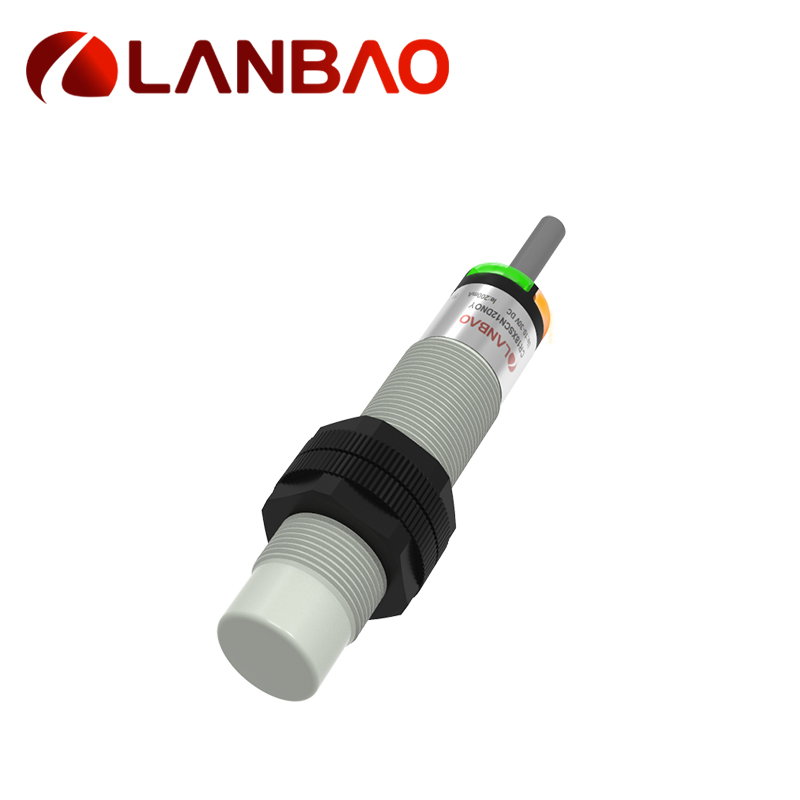

LANBAO M18 Waterproof Non-flush 12mm Capacitive Switch Sensor with 2m Cable

· Integrated housing matches double high-lighted LED indicator
· IP68 protection class which is effectively moisture-proof and dust-proof
· The maximum operating voltage can be 40VDC which can effectively prevent the influence from power ripple
· Enhance detection distance. Sensitivity adjustment adopts multi-turn potentiometer so as to reach higher adjustment accuracy
· High reliability, excellent EMC design with protection against short circuit, overloaded and reverse polarity
· Widely used in both metal and non-metal (plastic, powder, liquid, etc.) material testing

Product Paramenters

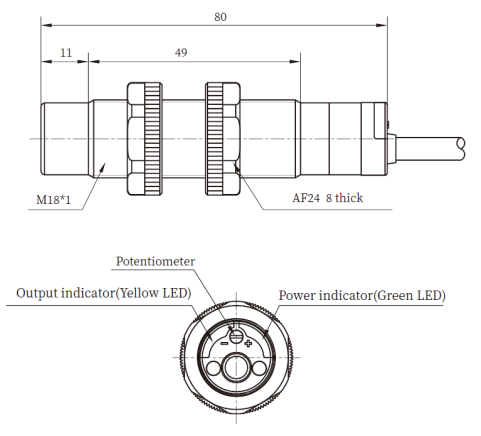

Dimension

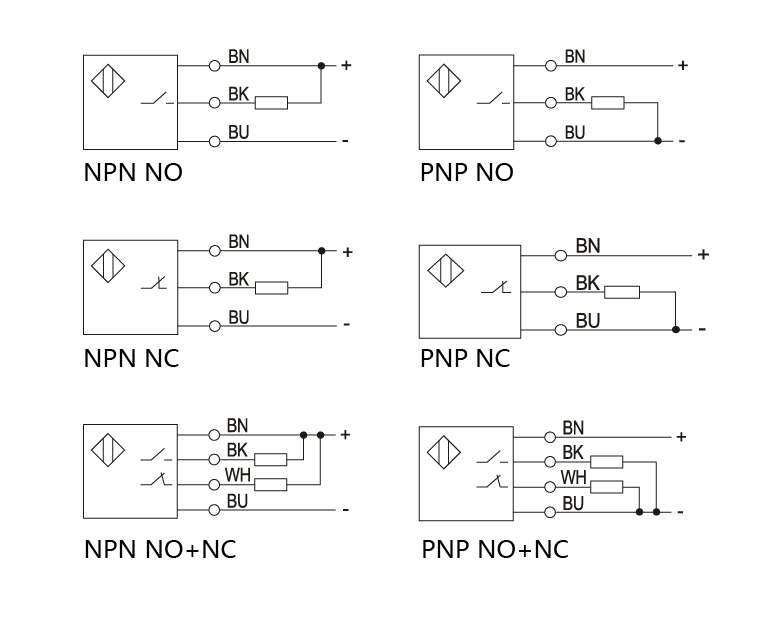

Wiring diagram
