Overview
Essential details
Model Number:
PSE-CC60 PSE-CC60-E2
Type:
Photoelectric Sensor
Place of Origin:
Shanghai, China
Brand Name:
LANBAO
Usage:
Positioning
Output:
NPN NO/NC PNP NO/NC
Description:
Tof Photoelectric Sensor
Detection range:
0.5...60cm
Adjustment range:
8...60cm
Output type:
NPN NO/NC or PNP NO/NC
Hysteresis:
3...20%
Supply voltage:
10...30 VDC
Consumption current:
≤20mA
Load current:
≤100mA
Voltage drop:
≤1V
Adjustment method:
Button adjustment
Light source:
Infrared laser(940nm)
Supply Ability
Supply Ability
10000 Piece/Pieces per Week
Packaging & delivery
Packaging Details
Background reflection Detection 600mm Square 10-30v Npn Pnp No/Nc TOF photoelectric Sensor
standard cartons
Port
shanghai guangzhou ningbo shenzhen
Lead time:
Quantity(pieces) 1 - 1000 >1000 Lead time (days) 15 To be negotiated
Video Description
Background reflection Detection 600mm Square 10-30v Npn Pnp No/Nc TOF photoelectric Sensor
Feature description
* Universal housing, an ideal replacement for a wide range of sensor types;
* IP67, suitable for harsh environments;
* One-key distance setting, accurate and fast setting
* Using TOF principle, the difference between black and white of the product is small, and the detection is stable
Product Paramenters

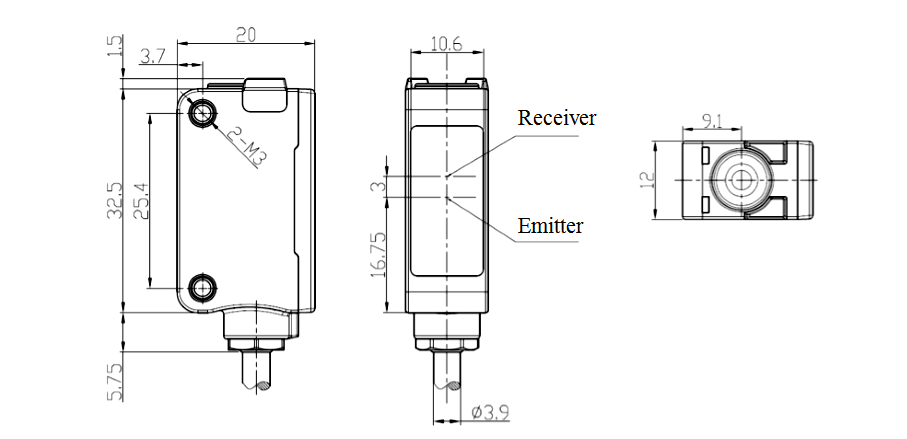

Dimension
Wiring diagram
