Overview
Essential details
Model Number:
CR12X
Type:
Capacitive Proximity Sensor
Place of Origin:
Shanghai, China
Brand Name:
LANBAO
Usage:
Positioning
Output:
NO/NC
Description:
Capacitive sensor
Mounting:
Non-flush
Adjustment method:
Single-turn potentiometer
Supply voltage:
10-30 VDC
Certificate:
CE UL
Protection degree:
IP 67
Housing material:
Nickel copper alloy
Connection type:
M12 connector Or 2m Cable
Sensing distance:
8mm
Adjust the distance:
3...12 mm
3...12 mm:
Fe 24*24*1t(Grounded)
Supply Ability
Supply Ability
10000 Piece/Pieces per Week
Packaging & delivery
Packaging Details
LANBAO M12 Long Distance NPN/PNP Capacitive Proximity Sensor with M12 Connector
standard cartons
Port
shanghai ningbo guangzhou shenzhen
Lead time:
Quantity(pieces) 1 - 1000 >1000 Lead time (days) 15 To be negotiated
Video Description

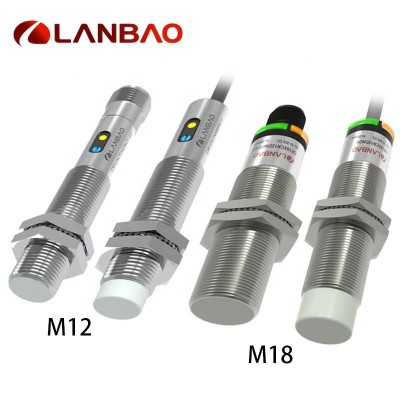

LANBAO M12 Long Distance NPN/PNP Capacitive Proximity Sensor with M12 Connector
Product Features
· One-piece housing with high-brightness LED indicator
· IP67 protection class which is effectively moisture-proof and dust-proof
· Enhance detection distance. Sensitivity adjustment adopts multi-turn potentiometer so as to reach higher adjustment accuracy
· High reliability, excellent EMC design with protection against short circuit, overloaded and reverse polarity
· Widely used in both metal and non-metal (plastic, powder, liquid, etc.) material testing
Model specification | |||
NPN NO | CR12XCN08DNOY-E2 | PNP NO | CR12XCN08DPOY-E2 |
NPN NC | CR12XCN08DNCY-E2 | PNP NC | CR12XCN08DPCY-E2 |
Specifications | |||
Installation type | Non-flush | Indicator | Output indication:Yellow LED |
Rated distance Sn | 8mm *1 | Switching frequency | 25Hz |
Ensure distance Sa | ≤5.76mm | Ambient temperature | When working:-25…70℃(No icing, No condensation) |
Adjust the distance | 3…12mm | When storing:-30…80℃(No icing, No condensation) | |
Adjustment method | Single-turn potentiometer | Environment humidity | 35...95%RHNo icing, No condensation) |
Standard test object | Fe 24*24*1t(Grounded) *2 | Vibration resistant | 10...55Hz,Dual amplitude 1mm(2 hours |
Supply voltage | 10...30VDC | each in X, Y, and Z directions) | |
Load current | ≤200mA | Impulse withsand | 30g/11ms,3 times each for X,Y,Z direction |
Residual voltage | ≤2V | High pressure resistant | 1000V/AC 50/60Hz 60s |
Consumption current | ≤20mA | Insulation resistance | ≥50MΩ(500VDC) |
Switch point offset [%/Sn] | ≤±10% | Shape specification | M12*1*80mm |
Temperature drift [%/Sr] | ≤±20% | Protection degree | IP67 |
Hysteresis range [%/Sr] | 3...20% | Housing material | Nickel copper alloy |
Repetitive error [R] | ≤5% | Connection type | M12 connector |
Circuit protection | Short circuit protection, Overload protection, | Accessories | M12 nuts×2, Slotted screwdriver, Operation manual |
Reverse polarity protection | |||
Note: *1 the factory default sensing distance is Sn±10% | |||
*2 unit:mm | |||
Dimension unit:m
Wiring diagram
Packaging & Shipping
Packing
Packaging is designed according to specific products for better protection.
