Overview
Essential details
Type:
Photoelectric Sensor
Place of Origin:
Shanghai, China
Usage:
Positioning, Position Sensor
Description:
Proximity Photoelectric Sensor
Application:
Diffuse reflection
Detection distance:
10cm 40cm 100cm
Product name:
Photoelectric Switch
Light source:
Infrared light (940nm)
Output indicator:
Yellow LED
Connection:
2m PVC cable / M12 connector
Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
Picture Example:
Lead time:
| Quantity(pieces) | 1 - 50 | >50 |
| Lead time (days) | 30 | To be negotiated |
Video Description
00:00
02:27

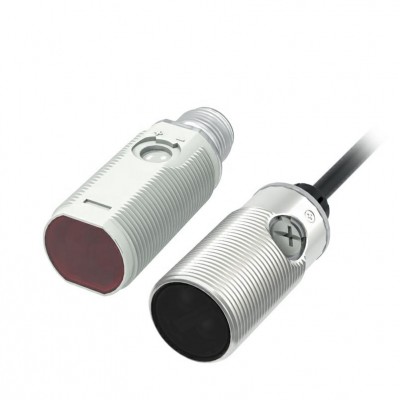

LANBAO 10-30V DC Photoelectric Optical Proximity Position Sensor With infrared light
Product Features
♦18mm threaded cylindrical mounting, easy to install:
♦Short case for small installation space;
♦Big knob design for easy adjustment
♦IP67 protection, suitable for harsh environments;
♦Small detection blind zone, appliable to detection of objects in bright background;
Product Paramenters
NPN NO/NC | PSM-BC10DNB | PNP NO/NC | PSM-BC10DPB |
NPN NO/NC | PSM-BC10DNB-E2 | PNP NO/NC | PSM-BC10DPB-E2 |
NPN NO/NC | PSM-BC40DNB | PNP NO/NC | PSM-BC40DPB |
NPN NO/NC | PSM-BC40DNB-E2 | PNP NO/NC | PSM-BC40DPB-E2 |
NPN NO/NC | PSM-BC100DNB | PNP NO/NC | PSM-BC100DPB |
NPN NO/NC | PSM-BC100DNB-E2 | PNP NO/NC | PSM-BC100DPB-E2 |
Detection type | Diffuse reflection | Hysteresis | 3...20％ |
Rated distance | 10cm or 40cm or 100cm | Indicator | Green LED: power, stable |
Light source | Infrared (940nm) |
| Yellow LED: output , short circuit or overload |
Output | NPN NO/NC or PNP NO/NC | Anti-ambient light | Anti-sunlight interference ≤ 10,000lux; |
Response time | ≤0.5ms |
| Incandescent light interference ≤ 3,000lux |
Supply voltage | 10...30 VDC | Operating temperature | -25...55 ºC |
Consumption current | ≤20mA | Storage temperature | -35...70 ºC |
Load current | ≤200mA | Protection degree | IP67 |
Voltage drop | ≤1V | Certification | CE |
Circuit protection | Short-circuit, overload, reverse polarity protection | Material | Housing: Nickel copper alloy；Filter: PMMA |
Connection | 2m PVC cable or M12 4-core connector | Annex | M18 nut (2PCS), instruction manual |
Distance adjustment | Single-turn potentiometer |
NO/NC adjustment | White wire is connected to the positive pole, NO mode; White wire is connected to the negative pole, NC mode |
Remarks:①Detection object is 90% white card with size 20cm * 20cm;
②The green LED becomes weaker, which means that the signal is weaker and the sensor is unstable; The yellow LED flashes, which
means that the sensor |
is shorted or overloaded; |
Dimension
Wiring diagram
