Products Description

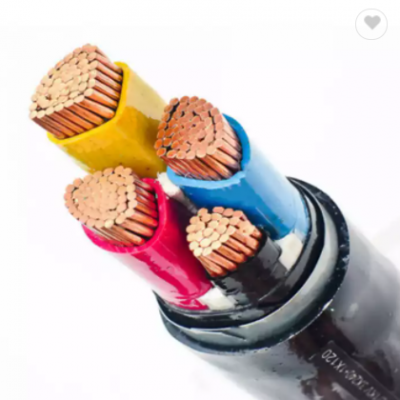

0.6/1kv multi-core PVC Cable Steel Wire Armored NYY N2xry Na2xy Na2xry Cable

APPLICATION :European name of the BS5467 cable. Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary control
cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

CHARACTERISTICS :
Voltage Rating Uo/U 0.6/1kV
Temperature Rating Fixed: -25°C to +90°C
Minimum Bending Radius
1.5mm² to 16mm2 -Fixed: 6 x overall diameter
25mm2 and above - Fixed: 8 x overall diameter

ConSTRUCTION
Conductor
Class 2 stranded copper conductor
Insulation
XLPE (Cross-linked Polyethylene)
Bedding
PVC (Polyvinyl Chloride)
Armour
SWA (Steel Wire Armour)
Sheath
PVC (Polyvinyl Chloride)
Core Identification
2 core: Brown Blue
3 core: Brown Black Grey
4 core: Brown Blue Black Grey
5 core: Green/Yellow Brown Blue Black Grey

STANDARDS
BS 5467, IEC/EN 60502-1, IEC/EN 60228 Flame Retardant according to IEC/EN 60332-1-2

If you want to more details, please don't hesitate to send the inquiry to us.

Package and Shipment

Quailty Control

about Us

00:00

02:17

►Company Overview
Founded in 1988, Henan Guowang Cable Co., Ltd. is located in Xinzheng New Technology Industrial Zone, covering an area of 40,000 square meters and has own modern production workshops, hundreds of professional and technical employees, owning unique geographic location and optimum investment environment. Guowang focuses on the production and innovation of cables, our main products include: Aluminum series, Aerial insulated series, Low voltage power cable series, High voltage power cable and Rubber cable. We are obtaining vigorous development with an amazing speed in China and also becoming a very influential leader in cable area step by step.

Our Advantages
