Product Description

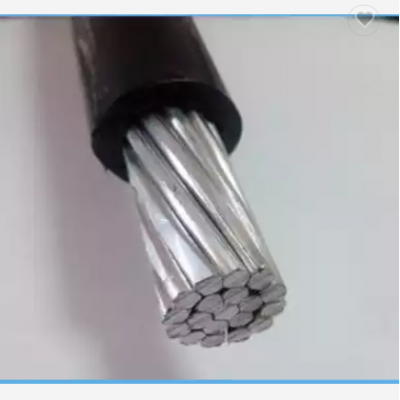

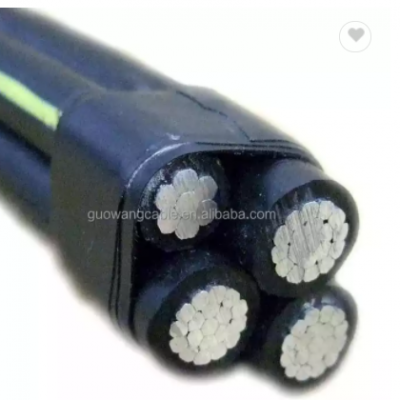

Factory Price 0.6/1kv Service Drop Abc Cable Aluminium Conductor Abc Aerial Bundled Cable
1.Application
To supply 120 volt aerial service for temporary service at construction sites, as a Service Drop (power pole to service entrance),
as a secondary cable (pole to pole) or street lighting. For service at 600 volts or lower at a maximum conductor temperature of
75ºC for Polyethylene insulated cables or 90ºC for Cross-linked (XLPE) insulation.
2.Construction
Conductor:Concentric strand or compressed 1350-H19 conductor. Concentric strand AAC, ACSR or AAAC alloy neutral messenger
Insulation: Polyethylene or Cross-linked Polyethylene insulation (XLPE)
3.Standards
ASTM B-230, B-231, B-232, and B-399
ICEA S-76-474
* B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
* B-231 Aluminum Conductors, ConcentricLay-Stranded.
* B-232 Aluminum Conductors, ConcentricLay-Stranded, Coated Steel Reinforced (ACSR).
* B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
* B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
* Service Drop cable meets or exceeds all aplicable requierements of ANSI/ICEA S-76-474.
4.Installation
As a Service Drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.
Note:The structure and specifications of the cable are not unique, we can customize according to your requirements, please contact our sales staff to inform you of the cable specifications you need, we will give you the most professional quotation suggestions.
