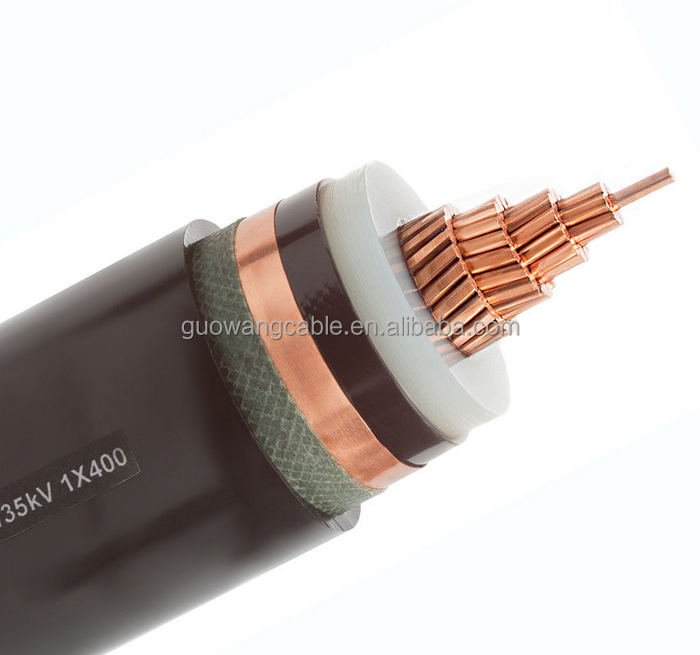

Products Description
12/20kv Freetox Halogen-Free N2XSOH Xlpe Cable Prices 3-1x95 mm2 3-1x120 mm2
xlpeable prices/power cab
Application:Medium voltage power distribution; direct application in places of high influx of public.
Construction:
1. Conductor: Compacted soft copper, class 2.
2. Internal semiconductor: Extruded composite.
3. Insulation: Cross-linked polyethylene XLPE-TR (Tree-retardant).
4. External semi-conductor: Strippable extruded compound.
These last three components extruded in CV (continuous vulcanization) of triple extrusion.
5. Screen: Copper strips.
6. External cover: HFFR thermoplastic compound.
Main features:Conductor temperature of 90ºC for normal operation, 130ºC for overload of emergency and 250ºC for short circuit conditions.
The outer shell has following characteristics: Does not spread the fire, low emission of dense smoke and

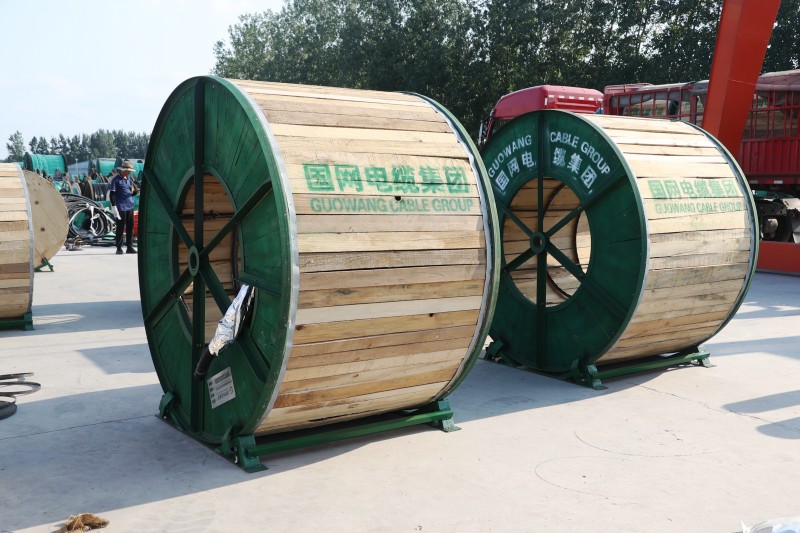

Free of halogens. Adequate resistance to oils.Section:From 50 mm2 to 400 mm2Packaging:On non-returnable wooden spools.Outer cover: Red.
Rated Voltage: | 3.6/6kV,6/10kV, 6.35/11kV (12kV), 8.7/15kV, 12/20kV, 18/30kV,19/33kV |

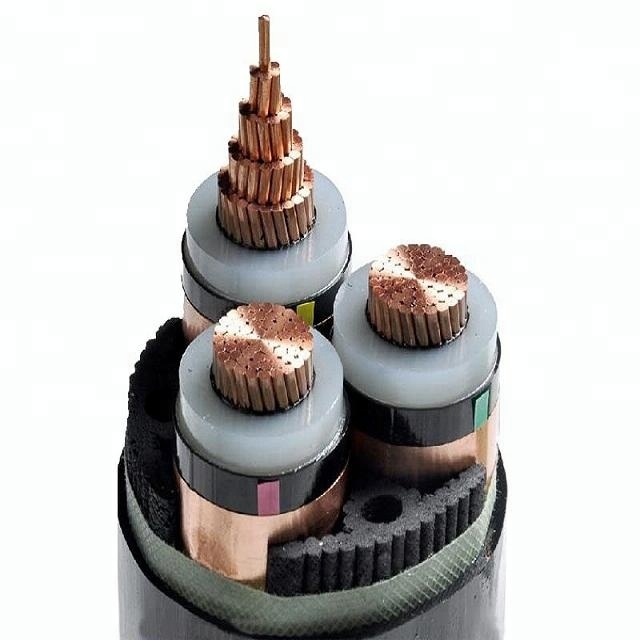

Core Number: | Single Core or Three Core (1C or 3C) |
Available Dimensions: | 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2. |
Codes Available: | N2XSY, N2XSEY, NA2XSY, NA2XSEY, N2XSRY, NA2XSRY, N2XSEBY, N2XSEYBY, NA2XSEBY, N2XSERY, NA2XSERY, N2XSEYRGbY, NA2XSEYRGbY,
N2XS(F)2Y, NA 2XS(F)2Y, N2XS(FL)2Y, N2XSH, N2XSYRY |
YJV, YJLV, YJSV, YJLSV |
Application: | For power networks, outdoors and in cable ducting. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected during installation. |

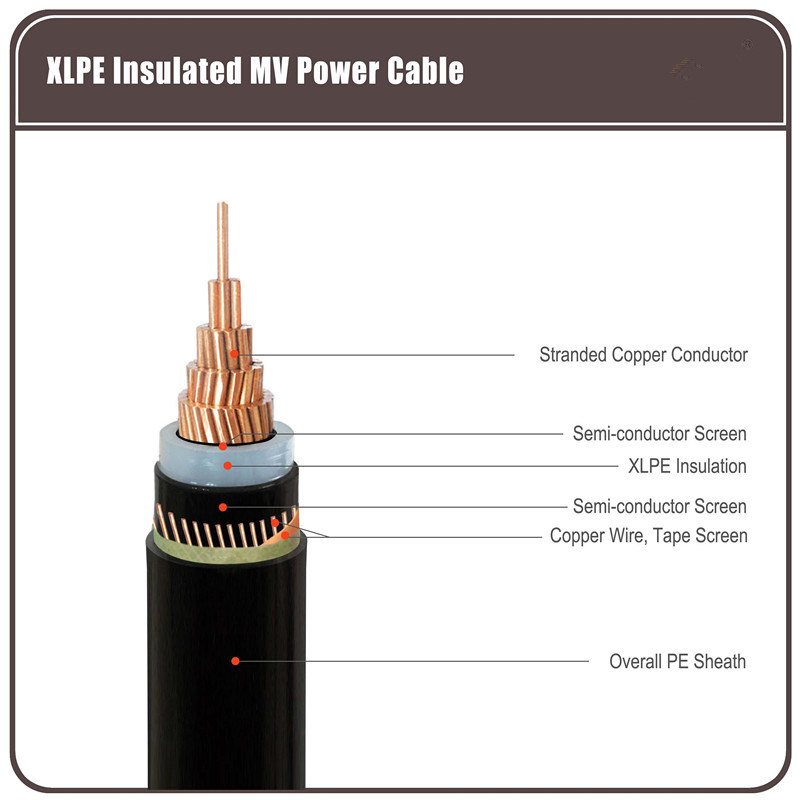

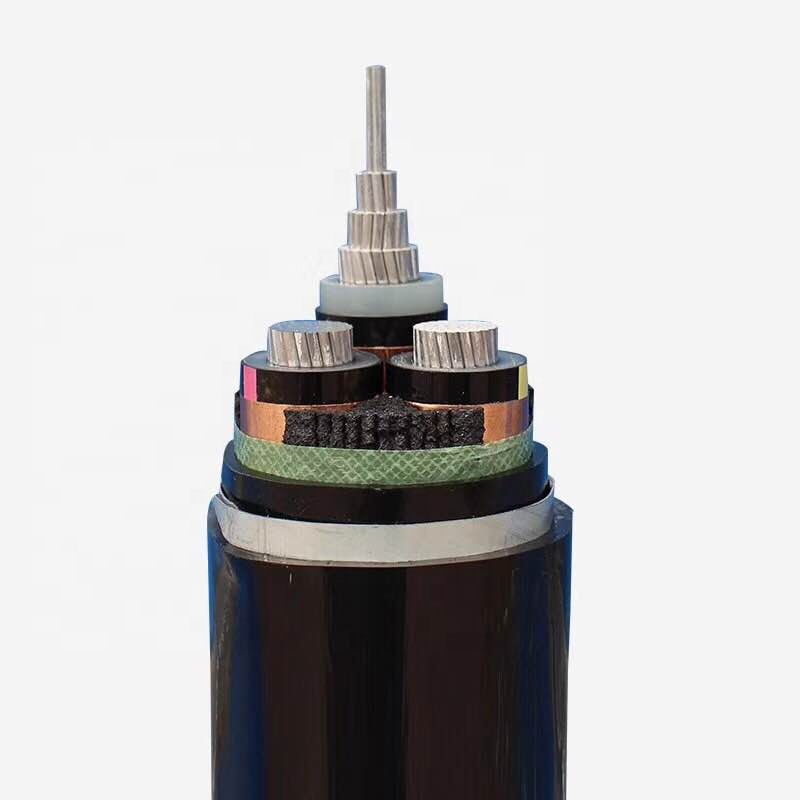

Construction: |
|
Conductor: | Stranded round compacted copper or aluminum conductor (Cu / Al ), copper wire annealed. |
Conductor Screen: | Semi-conducting material |
Insulation: | XLPE (Cross-linked Polyethylene) |
Insulation Screen: | Semi-conducting material |
metallic Screen: | Copper tape screen or copper wire screen (CTS / CWS ) |
Filler: | PP rope |
Separator: | Binding tape |
Bedding: | PVC (Polyvinyl Chloride) |
Armouring: | Single Core: No Multi-core: No |
Sheath: | PVC (Polyvinyl Chloride), flame retardant PVC, PE, LSOH, HFFR |
Colour: | Red or Black |
Temperature Rating: | 0°C to 90°C |
Minimum Bending Radius: | Single Core: 15 x overall diameter Three Core: 12 x overall diameter (Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former) |
If want to know about more details and import process,pls don't hesitate to contact me.

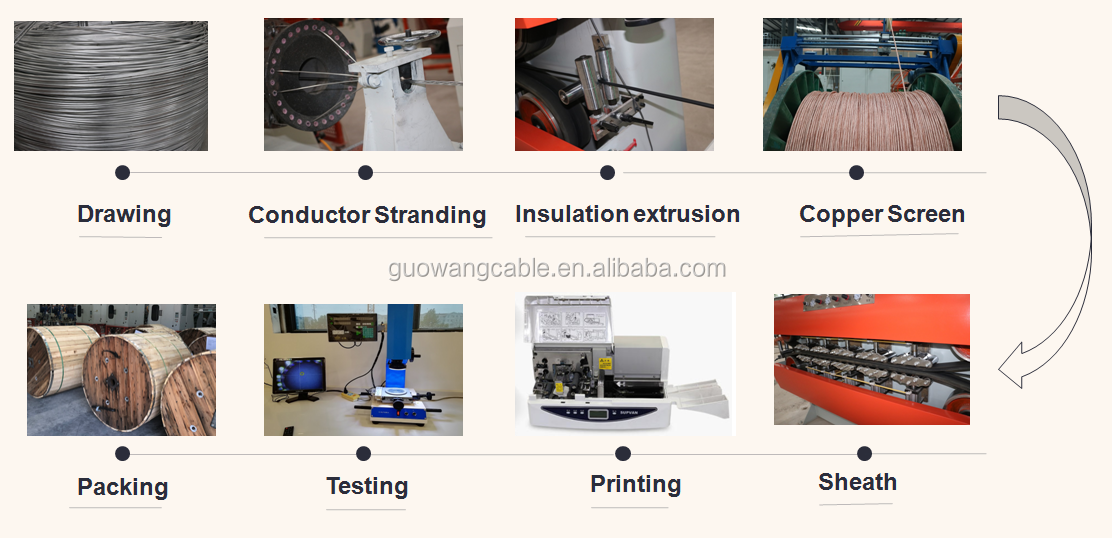

Production Process
High Quality ht nyy cable China 3-core Custom Coiled Submarine Power Cable Manufacturer

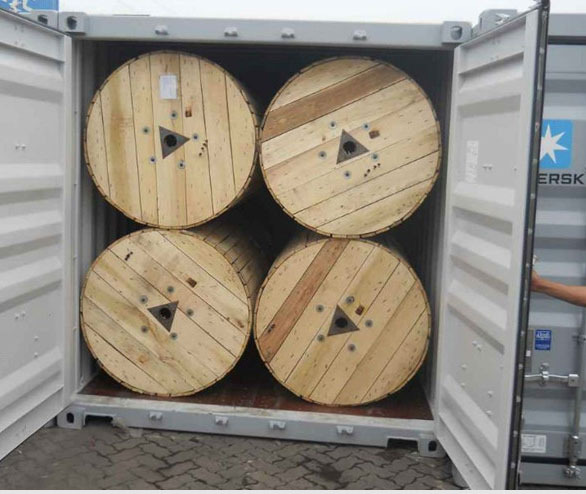

Package and Shipment

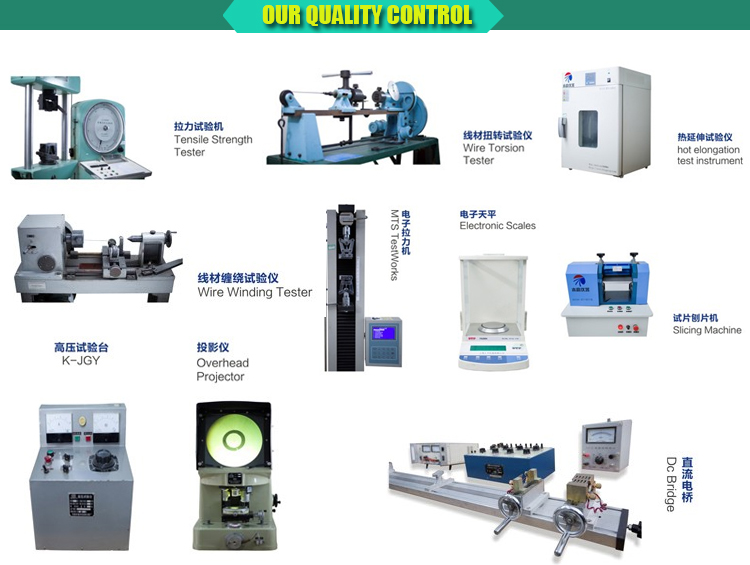

Quailty Control
