Core Number:

Single Core or Three Core (1C or 3C)

Available Dimensions:

25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2.

Codes Available:

N2XSY, N2XSEY, NA2XSY, NA2XSEY, N2XSRY, NA2XSRY, N2XSEBY, N2XSEYBY, NA2XSEBY, N2XSERY, NA2XSERY, N2XSEYRGbY, NA2XSEYRGbY,
N2XS(F)2Y, NA 2XS(F)2Y, N2XS(FL)2Y, N2XSH, N2XSYRY

YJV, YJLV, YJSV, YJLSV, YJV72, YJLV72, YJSV72, YJLSV72, YJV22, YJLV22, YJSV22, YJLSV22, YJV32, YJLV32, YJSV32, YJLSV32

Application:

For power networks, underground, outdoors and in cable ducting. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected during installation.

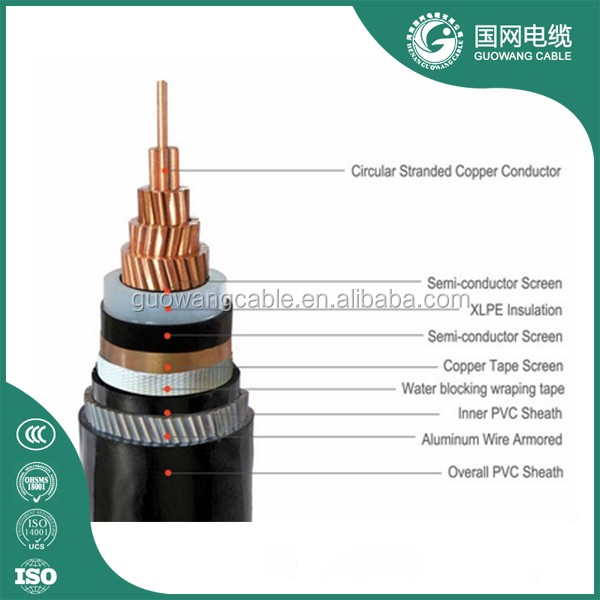

Construction:

Conductor:

Stranded round compacted copper or aluminum conductor (Cu / Al ), copper wire annealed.

Conductor Screen:

Semi-conducting material

Insulation:

XLPE (Cross-linked Polyethylene)

Insulation Screen:

Semi-conducting material

metallic Screen:

Copper tape screen or copper wire screen (CTS / CWS )

Filler:

PP rope

Separator:

Binding tape

Bedding:

PVC (Polyvinyl Chloride)

Armouring:

Single Core: Aluminium Wire Armoured (AWA) Multi-core: Steel Wire Armoured (SWA) or Steel Tape Armoured (STA)

Sheath:

PVC (Polyvinyl Chloride), flame retardant PVC, PE, LSOH, HFFR

Colour:

Red or Black

Temperature Rating:

0°C to 90°C

Minimum Bending Radius:

Single Core: 15 x overall diameter Three Core: 12 x overall diameter (Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)
