Overview
Essential details
Warranty:
1 Year
Place of Origin:
Guangdong, China
Brand Name:
Techfine
Model Number:
CG10K
Phase:
Single Phase, Single Phase
Protection:
Overvoltage
Weight:
49.8KG
Type:
On-line
Application:
COMPUTER
Input Voltage range:
110-300VAC
Input Frequency range:
40Hz -70Hz
Power Factor:
0.9
Output Volatge:
220VAC
Output Frequency (Battery mode):
50HZ/60HZ
Transfer Time AC to DC:
0MS
Bypass mode:
yes
Waveform:
Pure Sine Wave
Maximum Charging Current:
1-10A (adjustable)
Supply Ability
Supply Ability
10000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
Package by strong kraft box.
Port
Any port of China
Picture Example:
Lead time:
Quantity(pieces) 1 - 10 >10 Lead time (days) 7 To be negotiated
High frequency UPS 1~10KVA(S)
*Pure sine wave, Zero transfer time, Ture online leading technology.

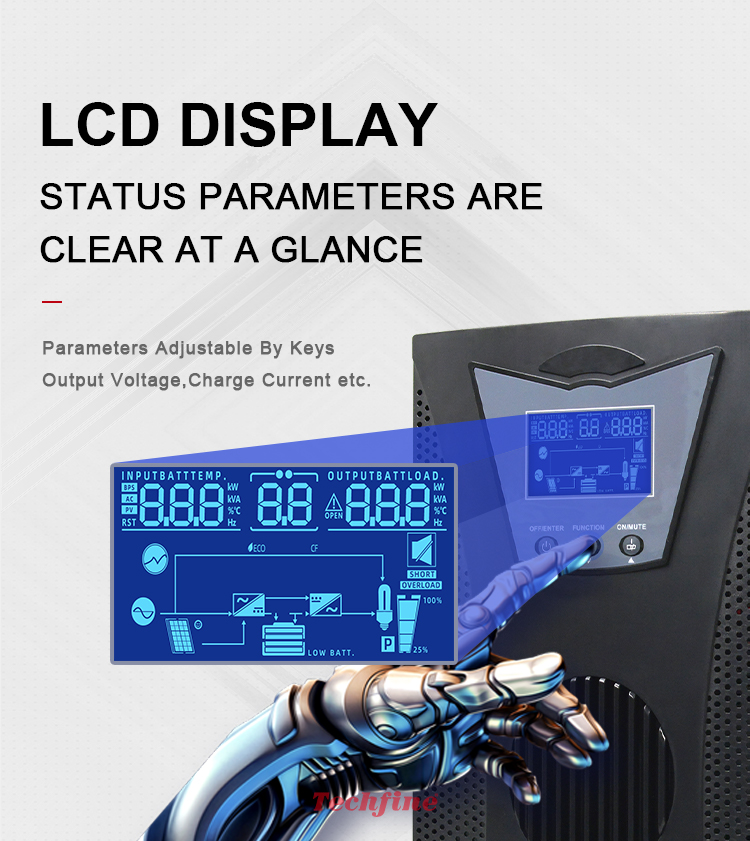

*Parameters Adjustable By Keys,Output Voltage,Charge Current tc.
*Dual PCB Designed,more reliable.
*OTA Update Function With Commuication Port.
*Smart CPU & Intelligent Power Management.
*Wide Input Frequency Range, Adjustable from 40-70Hz.
Product Detail
We put our experience and research into UPS
technology upgrade for more reliable.
Flexible Setting The Charging Amps, Charging Voltage,AC Output Voltage And So On. Load level, battery capacity, AC Mode, battey mode, bypass mode, fault indication

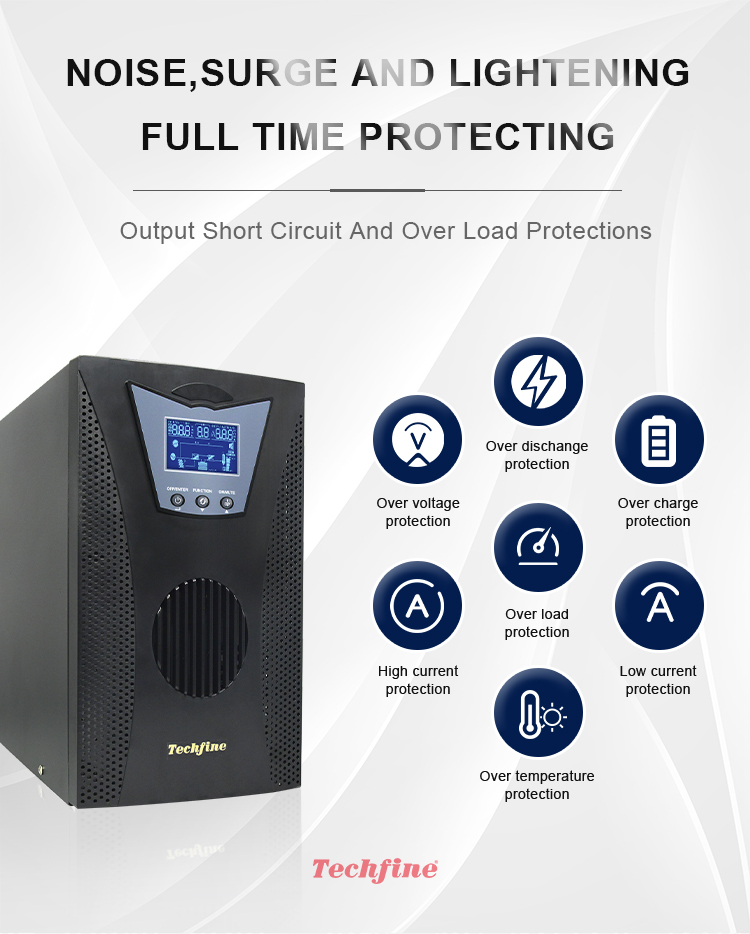

Long Service Life With Various Protections.Your Equipments Safeguard.
