Product Description
Emerson Netsure 801 series Telecom DC Power Supply System
Telecom Rectifier system Netsure 801 series

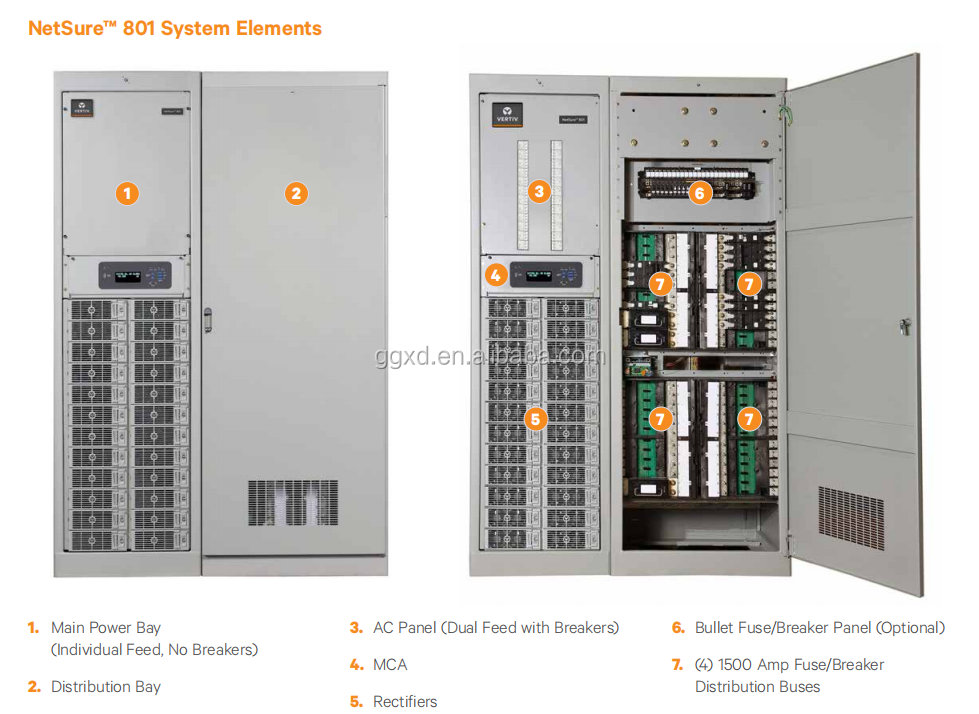

The modular NetSure™ 801 power system with 5800 watt rectifiers provides up to 16,800 amps of power for -48 volt systems. The basic components of the system include 2640 amp power bays which house the rectifiers and MCA chassis, and 6000 amp distribution bays. The cabled architecture allows the placement of the bays anywhere the user desires without regard to any specific order. This also makes it more user friendly in applications where existing obstacles, such as support columns, need to be accommodated. The total plant size is defined by the maximum capacity of the Main Battery Termination Bars (MBTB).
The NetSure 801 power system contains a powerful, microprocessor-based meter, control and alarm system capable of monitoring and controlling up to 168 rectifiers. The MCA provides a 4 line, 40-character alphanumeric display, which can be activated at the touch of a keypad. Each rectifier bay can accommodate up to 24 plug’n’play rectifiers, which are controlled by the MCA. Additional bays can be added as load requirements increase.

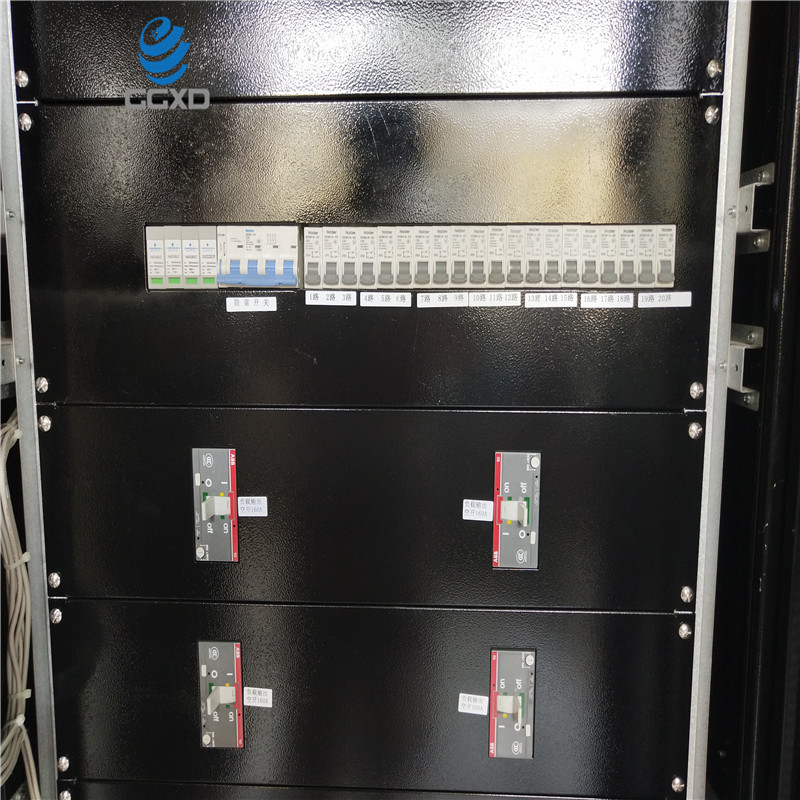

The NetSure 801 power system offers 6000 amp modular distribution bays. Each bay can be configured with up to 70 positions of fuses and circuit breakers from 1-800 amps. Multiple bays may be used to support load levels in excess of 16,800 amps. Contact a Vertiv application expert at 1-800-800-1280.
Application
The NetSure 801 system is ideal for wireline, wireless and data center applications such as switch sites, co-location, MTSO and data processing centers.
