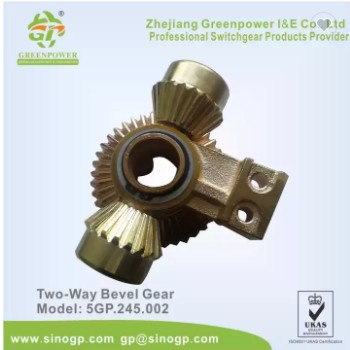

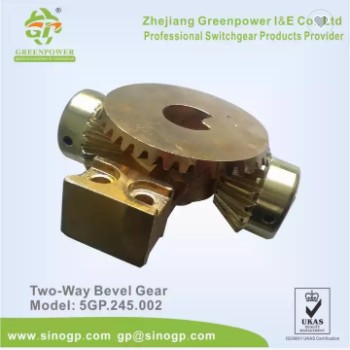

Earthing switch Bevel Gear Assembly interlocking device
Two-way (total tooth bevel gear), was adopted to realize the back door interlock (block), and there are two kinds of forms:
A) 5GP. 577.1002 for one-way interlocking, grounding switch just can open the back door after closing (block), the back door (block) is turned on, still can switch operation. The interlock function with 5GP. 360.010.
B) 5GP. 577.1002.1 for two-way interlock, grounding switch just can open the back door after closing (block), the back door (block) is turned on, were unable to operate Earthing switch. The interlock function with 5GP. 363.010.1
Earthing switch operation mechanism interlock device (for two-way bevel gear drive operation)5GP.577.1002/5GP.577.1002.1 arrangement list
No. | Name | Drawing no. | Qty(pc/set) | No. | Name | Drawing no. | Qty(pc/set) |
1 | Bearing | 8GP.263.011 | 1 | 21 | Bevel gear assembly | 5GP.245.002.1 | 1 |
2 | stopper plate | 8GP.151.084 | 2 | 22 | link part | 8GP.143.108.2 | 1 |
3 | axis sleeve | 8GP.210.014.1 | 2 | 23 | link sleeve | 5GP.259.001.1 | 1 |
4 | Fan-shaped plate | 8GP.151.041 | 1 | 24 | axis sleeve | 8GP.211.060 | 2 |
5 | axis sleeve | 8GP.210.061 | 1 | 25 | operation rod (matching 5GP.577.1002) | 8GP.200.011.1for cabinet depth 1500 | 1 |
6 | Fan-shaped plate | 8GP.151.039 | 1 | 8GP.200.011.2 for cabinet depth 1660 |
7 | axis sleeve | 8GP.211.062 | 1 | Operation rod (matching 5GP.577.1002.1) | 8GP.200.012.1 for cabinet depth 1500 |
8 | Bolt M5*12 | GB70-85 | 1 | 8GP.200.012.2 for cabinet depth 1660 |
9 | Fan-shaped plate | 8GP.151.042 | 1 | 26 | stopper sleeve | 8GP.211.057 | 2 |
10 | Fan-shaped plate | 8GP.151.043 | 1 | 27 | support base | 8GP.043.019.7 | 1 |
11 | axis sleeve | 8GP.210.014.3 | 1 | 28 | perssure spring | 8GP.282.201(for 5GP.577.1002.1) | 1 |
12 | stopper sleeve | 8GP.210.322 | 1 | 29 | locking sleeve | 8GP.211.059(for 5GP.577.1002) | 1 |
13 | operation rod | 8GP.174.214 | 1 | 8GP.211.201(for 5GP.577.1002.1) |
14 | supporting plate | 8GP.161.058 | 1 | 30 | supporting plate | 8GP.161.874 | 1 |
15 | supporting plate | 8GP.161.059 | 1 | 31 | fixed part | 8GP.143.501 | 1 |
16 | slider | 8GP.143.010 | 2 | 32 | tag | 8GP.860.010 | 1 |
17 | Bolt M6*25 | GB12-88 | 2 |
|
|
|
|
18 | support base | 5GP.043.022 | 1 |
|
|
|
|
19 | cover | 8GP.017.011.2 | 1 |
|
|
|
|
20 | Tooth plug plate | 8GP.151.044 | 1 |
|
|
|
|
