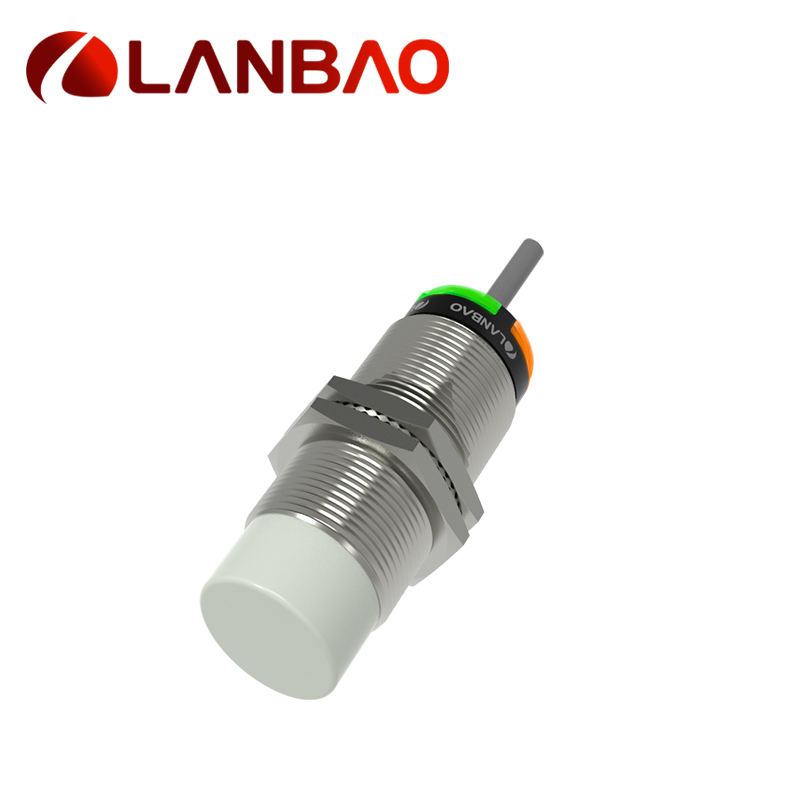

LANBAO CR30X Series Plastic Metal Capacitive Switch feed sensor for poultry

Overview

Essential details

• Model Number:

• CR30XCN

• Type:

• Capacitive Proximity Sensor

• Place of Origin:

• Shanghai, China

• Brand Name:

• LANBAO

• Usage:

• Positioning

• Output:

• PNP/NPN NO/NC, Digital Sensor

• Description:

• Capacitive sensor

• Output ways:

• PNP/NPN NO/NC

• Residual voltage:

• ≤2V

• Load current:

• ≤200mA

• Frequency:

• 25Hz/35Hz

• Housing material:

• Nickel copper alloy/PBT

• Connection:

• 2m PVC cable/M12 connector

• Adjustment method:

• Multi-turn potentiometer (Electrical adjustment>10)

• Circuit protection:

• Short circuit protection, Overload protection, Reverse polarity

Supply Ability

• Supply Ability

• 5000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

Package: 100pcs/CTN,
Gross weight: 9kgs/CTN,
Volume: 0.01CBM/CTN.

• Port

Shanghai

• Picture Example:

•

• Lead time:

• Quantity(pieces)	1 - 100	101 - 1000	1001 - 10000	>10000
  Lead time (days)	7	15	30	To be negotiated

Video Description

00:00

01:34

LANBAO CR30X Series Plastic metal Capacitive Switch feed sensor for poultry

Product Features
1、Integrated housing matches double highilghted LED indicator 2、IP67 protection class which is effectively moisture-proof and dust-proof 3、Enhance detection distance. Sensitivity adjustment adopts multi-turn potentiometer so as to reach higher adjustment accuracy 4、High reliability, excellent EMC design with protection against short circuit, overloaded and reverse polarity 5、Widely used in both metal and non-metal (plastic, powder, liquid, etc.) material testing

Product Paramenters

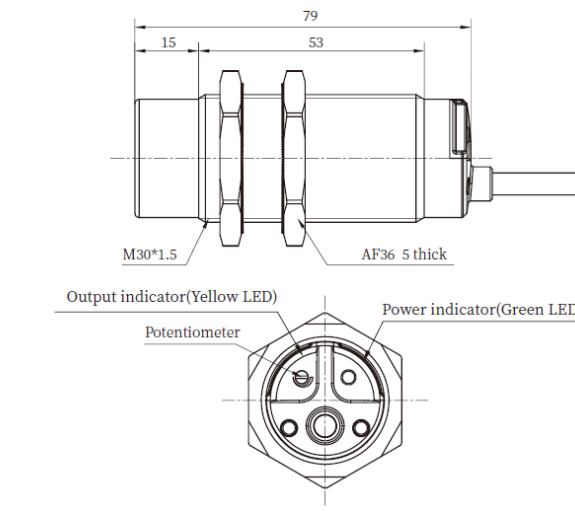

Dimension

Wiring diagram
