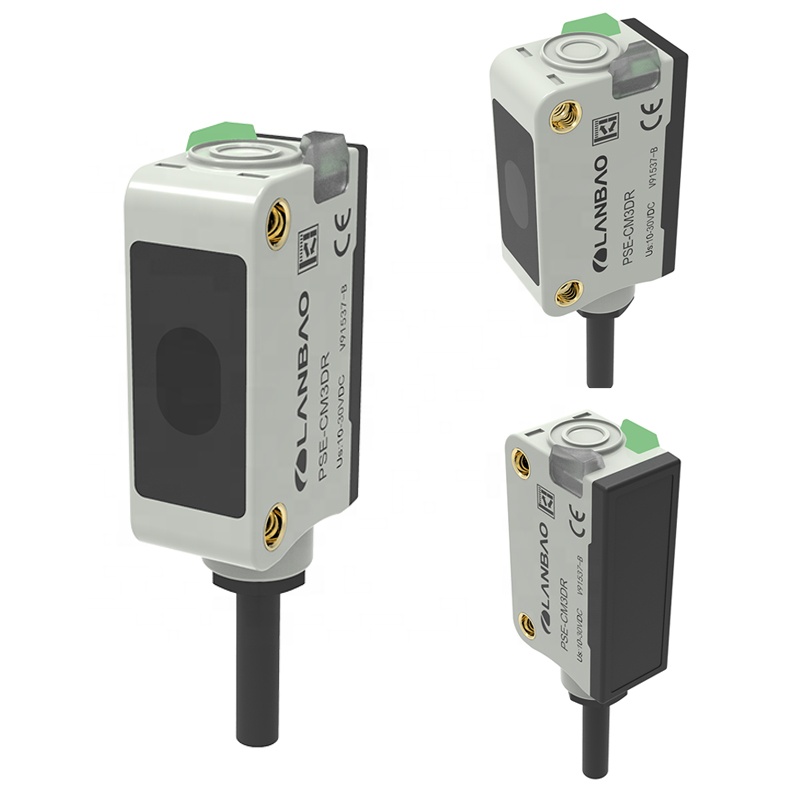

LANBAO 2022 NEW 300cm IP67 Square RS485 Npn Pnp No Nc Proximity Photoelectric TOF Sensor

Overview

Essential details

• Model Number:

• PSE-CM3DR

• Type:

• Photoelectric Sensor

• Place of Origin:

• Shanghai, China

• Brand Name:

• LANBAO

• Usage:

• Positioning

• Output:

• NPN NO/NC PNP NO/NC

• Description:

• Tof Photoelectric Sensor

• Detection range:

• 0.5...100cm

• Adjustment range:

• 8...100cm

• Output type:

• NPN NO/NC or PNP NO/NC

• Hysteresis:

• 3...20%

• Supply voltage:

• 10...30 VDC

• Consumption current:

• ≤20mA

• Load current:

• ≤100mA

• Voltage drop:

• ≤1V

• Adjustment method:

• Button adjustment

• Light source:

• Infrared laser(940nm)

Supply Ability

• Supply Ability

• 10000 Piece/Pieces per Week

Packaging & delivery

• Packaging Details

LANBAO 2022 NEW 300cm IP67 Square RS485 Npn Pnp No Nc Proximity Photoelectric TOF Sensor
standard cartons

• Port

shanghai guangzhou ningbo shenzhen

• Lead time:

• Quantity(pieces)	1 - 1000	>1000
  Lead time (days)	15	To be negotiated

Video Description

00:00

03:12

LANBAO 2022 NEW 300cm IP67 Square RS485 Npn Pnp No Nc Proximity Photoelectric TOF Sensor

Feature description

* Universal housing, an ideal replacement for a wide range of sensor types;
* IP67, suitable for harsh environments;
* One-key distance setting, accurate and fast setting
* Using TOF principle, the difference between black and white of the product is small, and the detection is stable

Product Paramenters

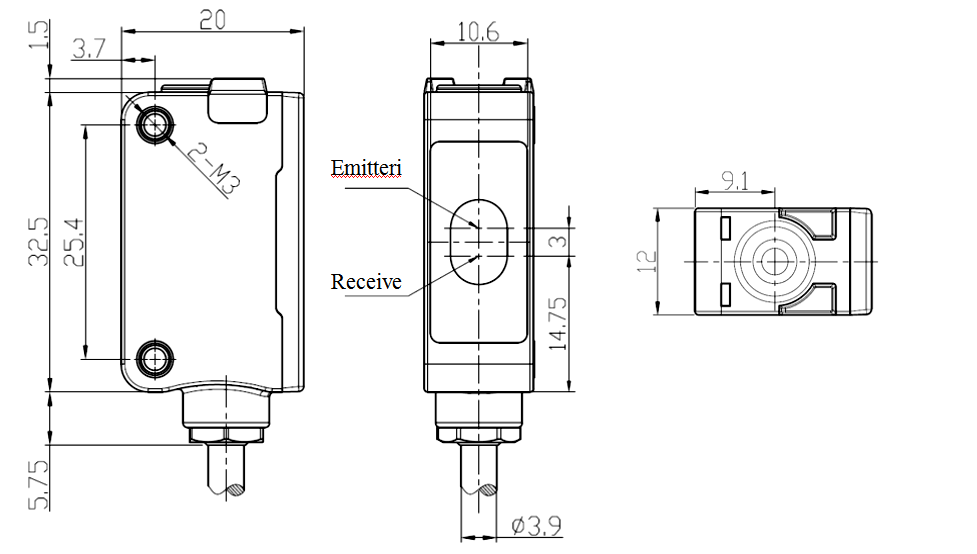

Dimension
