Overview

Essential details

Model Number:
SPM

Type:
Mark Color Sensor, Position Sensor

Place of Origin:
Shanghai, China

Brand Name:
LANBAO

Usage:
Positioning

Output:
PNP NPN, Switching Transducer

Description:
Color Mark Sensor

Switching compose:
Emitter and Receiver

Light Source:
red light /Blue light/green light/white light

housing material:
PBT

connection:
cable

sensing distance:
10±2mm

supply voltage:
12-24VDC

insulation resistance:
≥50MΩ(500VDC)

protection degree:
IP65

Supply Ability

Supply Ability
5000 Piece/Pieces per Week

Packaging & delivery

Packaging Details

LANBAO color mark sensors (SPM-TNR-RG)
Standards packing by carton

Port

Shanghai Ningbo Shenzhen Guangzhou

Picture Example:

Lead time:
Quantity(pieces) 1 - 100 101 - 1000 1001 - 10000 >10000
Lead time (days) 7 15 30 To be negotiated

Video Description

00:00

03:00

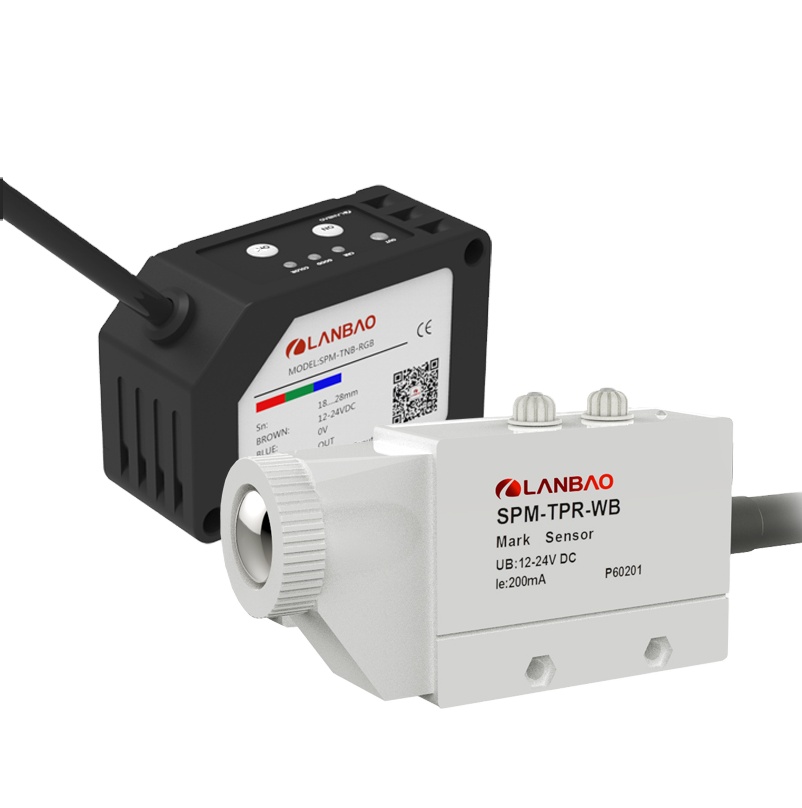

LANBAO color mark sensors (SPM-TNR-RG)

* Multiple circuit protection measures to ensure stable and safe use of the product: reverse polarity protection surge
protection，Short circuit protection
* Clear indication method: yellow LED display can check sensor status
* Selection of excellent components and strict production control process to ensure long life and high reliability of the product
* Economical use cost, easy operation and wide application

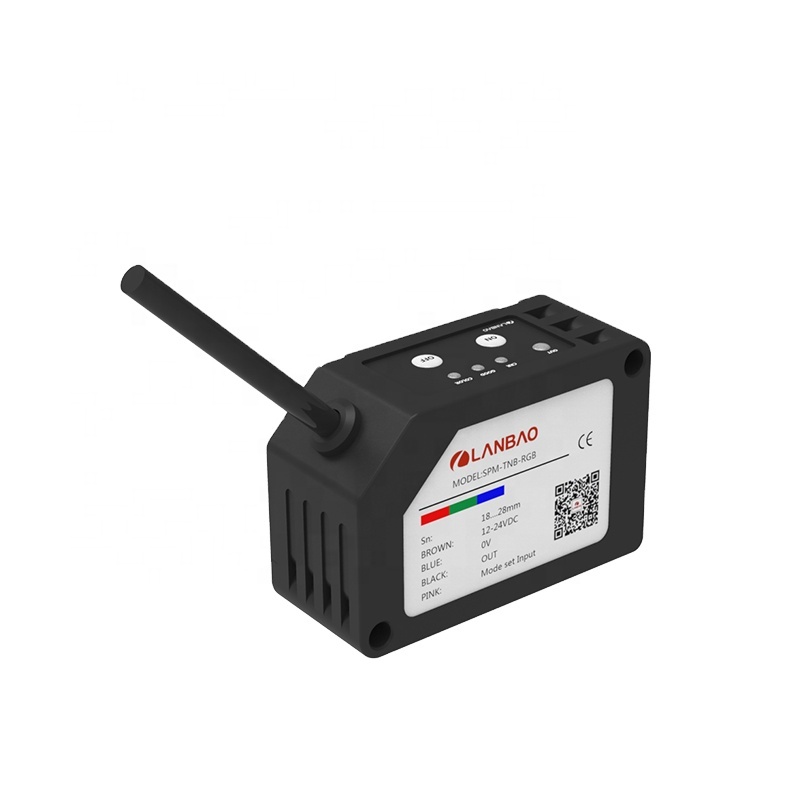

Product Paramenters

Model specification
NPN	SPM-TNR-RGB
PNP	SPM-TPR-RGB

Specifications
Detection distance	18...28mm
Supply voltage	24VDC±10% Ripple P-P＜10%
Light source	Composite LED:Red/Green/Blue(Light source wavelength: 640nm/525nm/470mm)
Current consumption	Power＜850mW(Supply voltage is 24V、Consumption current＜35mA)
Mode switch input	Color mark mode: Low(ON) 0...0.6VDC; Leakage current is below 0.5mA; Input impedance is about 10kΩ.	Color mark mode: Low(OFF) 0...0.6VDC or open
	Color mode: High(OFF) 12... +VDC or open	Color mode: High(ON) 12...+VDC; Leakage current is below 3mA; Input impedance is about 10kΩ.
Output type	NPN open-collector transistor:the max inflow current is 50mA;The applied voltage is below 30VDC(Between output and 0V);Residual voltage is less than 1.5V(When inflow current is 50mA)*	PNP open-collector transistor:the max inflow current is 50mA;The applied voltage is below 30VDC(Between output and +V);Residual voltage is less than 1.5V(When inflow current is 50mA)*
Output operation	Color mark mode: ON when color mark detection; Color mode: ON when consistent
Protection circuit	Short circuit protection
Response time	＜200μs
Ambient temperature	-10...55℃(No condensing、 No condensation)
Environment humidity	35...85%RH(No condensation)
Housing material	Housing: PBT; Operation panel: PC; Operation button: Silica gel; Lens:PC
Connection method	2m cable(0.2mm² 4-pins cable)
Weight	about 104g
*Specified measurement conditions: ambient temperature +23℃

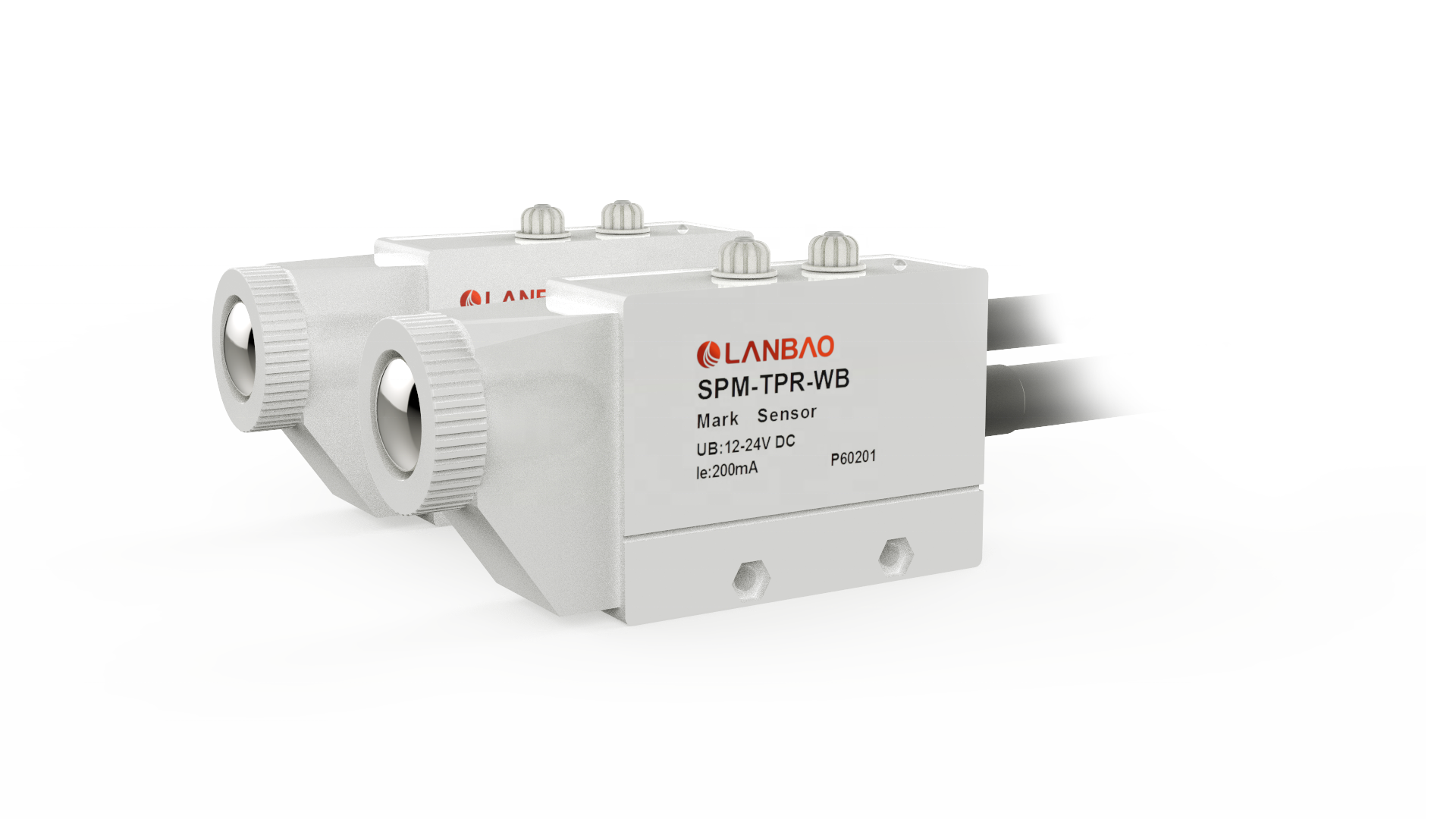

Model specification
NPN NO+NC	SPM-TNR-WB SPM-TNR-RG
PNP NO+NC	SPM-TPR-WB SPM-TPR-RG

Specifications
Light source	Visible white/blue light Visible red/green light	Protection circuit	Surge,Short circuit,and reverse polarity protection
Type	Focused	Output indication	Yellow LED
Switch composition	Transmitter and receiver integrated	Ambient temperature	-25℃…55℃
Detection distance	10±2mm	Environment humidity	35-85%RH
Supply voltage	12…24VDC	Withstand voltage	1000V/AC 50/60Hz 60s
Spot diameter	＜1.5mm	Insulation resistance	≥50MΩ(500VDC)
Response time	＞1ms	Vibration resistance	Complex amplitude 1.5mm 10…50Hz
Hysteresis range	1…15％		(2 hours each in X, Y, and Z directions)
Repetitive error	≤3％	Protection degree	IP65
Load current	≤200mA	Housing material	PBT
Residual voltage	≤2.5VDC	Connection type	2m PVC Cable
