LANBAO 2021 new 10-30VDC plastic square photoelectric optic sensor with detection of various colors

Overview

Essential details

• Model Number:

• PSE-SC

• Type:

• Photoelectric Sensor, photoelectric sensors

• Place of Origin:

• Shanghai, China

• Brand Name:

• LANBAO

• Usage:

• positioning sensor

• Output:

• PNP NO/NC

• Description:

• photoelectric sensor

• Detection distance:

• 5cm

• Supply voltage:

• 10...30VDC

• Load current:

• 200mA

• Light source:

• Red light(640nm)

• Voltage drop:

• ≤1.5V

Supply Ability

• Supply Ability

• 10000 Pack/Packs per Week

Packaging & delivery

• Packaging Details

LANBAO 2021 new 10-30VDC plastic square photoelectric optic sensor with detection of various colors
standard packaging

• Port

shanghai

• Lead time:

• Quantity(pieces)	1 - 1000	>1000
  Lead time (days)	15	To be negotiated

Video Description

00:00

00:43

LANBAO 2021 new 10-30VDC plastic square photoelectric optic sensor with detection of various colors

Product Features
· Long-shape light spot design, can stably detect various hole of PCB
· Highlight 360° indicator, easy to identify working conditions
· One-click setting NO/NC, simple and fast
· Small difference between black and white, suitable for detecting target in various colors

Product Paramenters

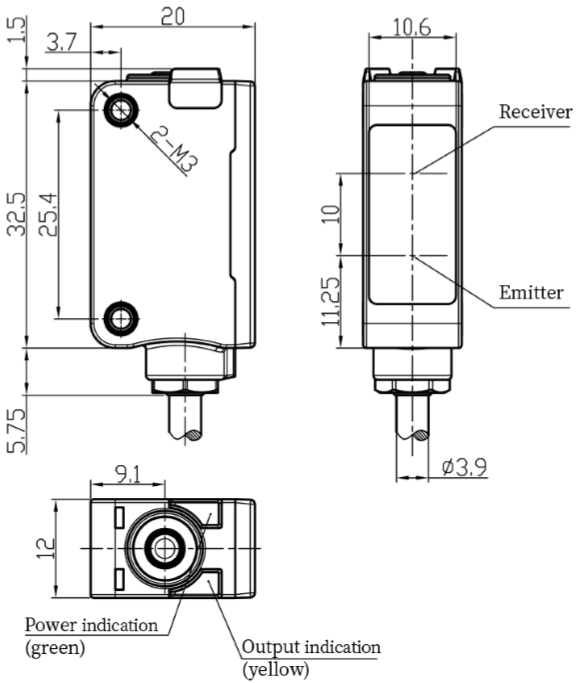

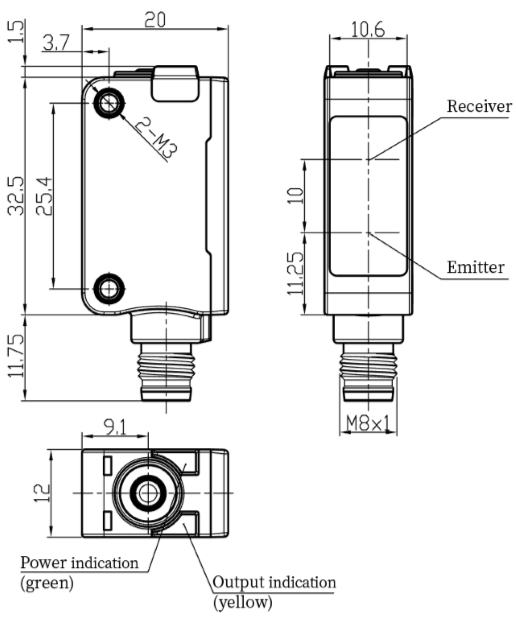

Dimension

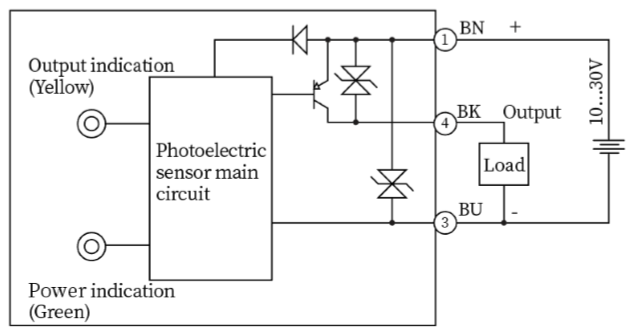

Wiring diagram
