Custom 6mm 10 mm dc 1500v pv photovoltaic cable wire solar panel

Overview

Essential details

• Place of Origin:

• Guangdong, China

• Brand Name:

• Owire/ OEM

• Model Number:

• 4MM

• Insulation Material:

• PVC

• Type:

• High Voltage

• Application:

• Power Station

• Conductor Material:

• Copper

• Jacket:

• PVC

• Product name:

• Solar Cable

• Color:

• Black Red

• Conductor:

• Copper Core

• Core:

• 56 CORE

• Rated voltage:

• 600/1000V

• Insulation:

• XLPE PE PVC

• Certificate:

• ISO9001/ISO14001 /OHSAS18001/CCC

• Package:

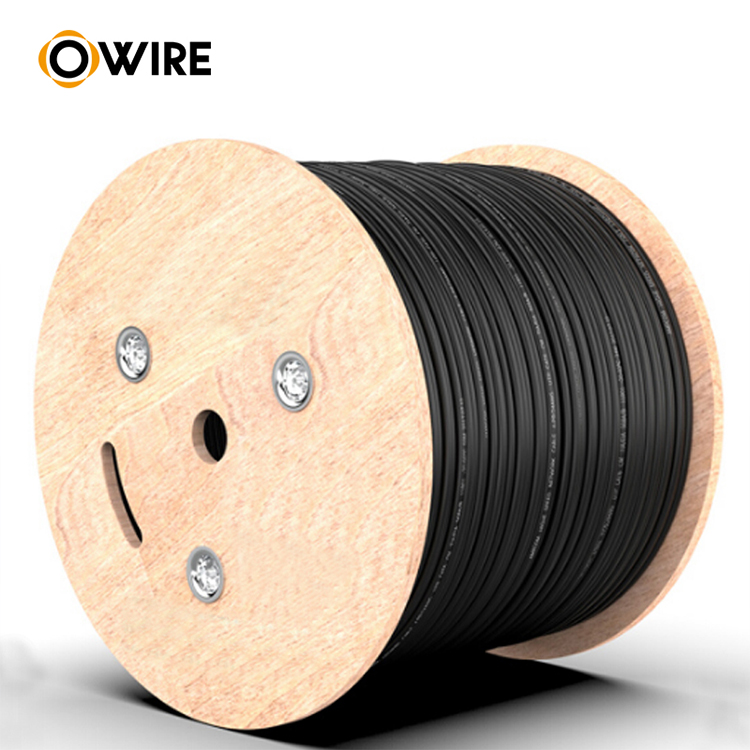

• Roll

• Length:

• 1000m/roll

• MOQ:

• 100

Supply Ability

• Supply Ability

• 500 Roll/Rolls per Day

Packaging & delivery

• Packaging Details

Package details: 1000ft(305m)/carton 305m/carton, 2cartons/box 950 carton/20ft container 2100 carton/40HQ (can design according to customer requirement),

• Port

shenzhen

• Picture Example:

•

• Lead time:

• Quantity(meters)	1 - 5000	>5000
  Lead time (days)	14	To be negotiated

OEM ODM 4.85 mm twin xlpe 4mm2 pv1-f1*4mm2 tuv dc pv photovoltaic solar cable for pv panel

Product Description

Main features

4mm 6mm 0.6/1KV solar pv cable with Tinned copper conductor, XLPO insulation, LSZH sheath

which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.

It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.

Specification

More details of 4 mm solar cable

4 square single core photovoltaic cable

●Nominal cross section: 4mm2

●Model: PV1-F

●Rated current: 55A

●Number of cores: NO. 1
●Conductor: Copper wire structure NO./mm 56/0.28

●Outer diameter of conductor stranded: 2.60mm

●Insulation Small wall thickness:0.5mm

●Sheath small wall thickness: 0.5mm

●Outer diameter of finished wire: 6.1±0.1mm

●Conductor resistance (20℃): ≤5.09Ω/km

●Test voltage kV/min: 6.5/5Nobreakdown

●Rated temperature: -40~﹢90℃

●Conductor temperature: ﹢120℃

●Reference short-circuit allowable temperature: 200℃5S

●Service life:＞25 years (-40~﹢90℃)

●Rated voltage: DC: 1.8kv ACU. /U:0.6/1kv

●Working environment temperature℃: -40~﹢90

●Working voltage AC/DC (KV): 0.6~1.0/1.8

●Weather resistance: UV

●Flame retardant: single vertical burning (IEC60332-1)
●Daylight resistance test: HD605/A1

●Ozone resistance test of finished cable: EN50396

●Smoke density: IEC61034, EN50268-2
●Release of halogen acid: IEC670754-1 EN50267-2-1

●Weight: 0.08Kg/m

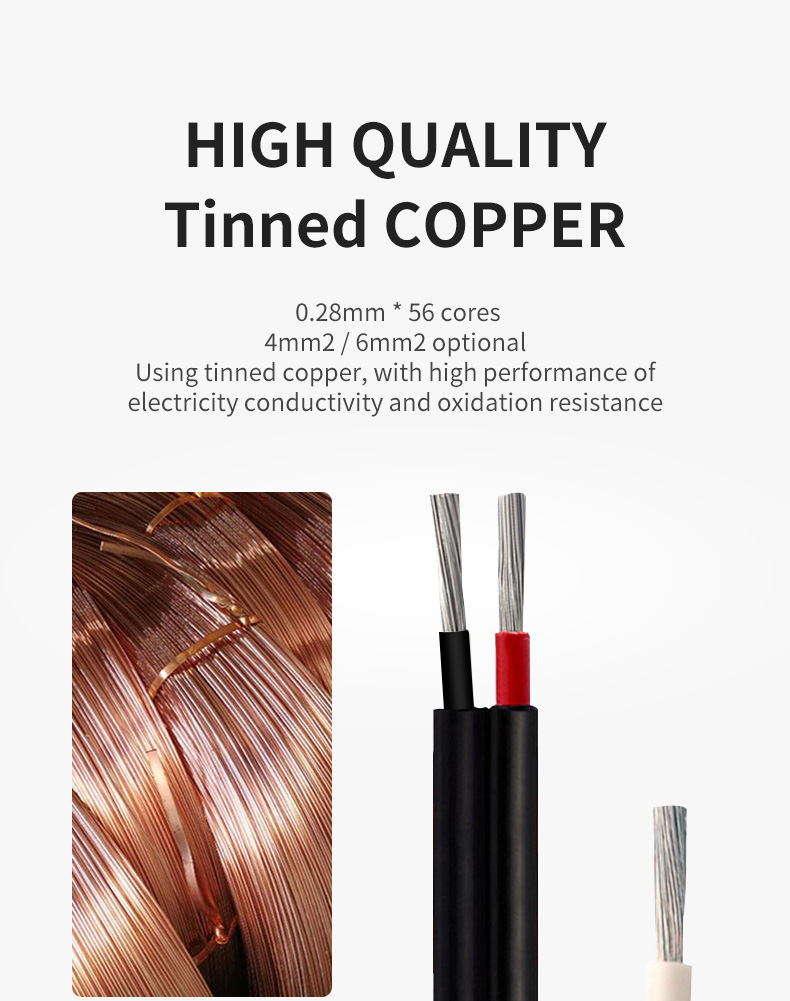

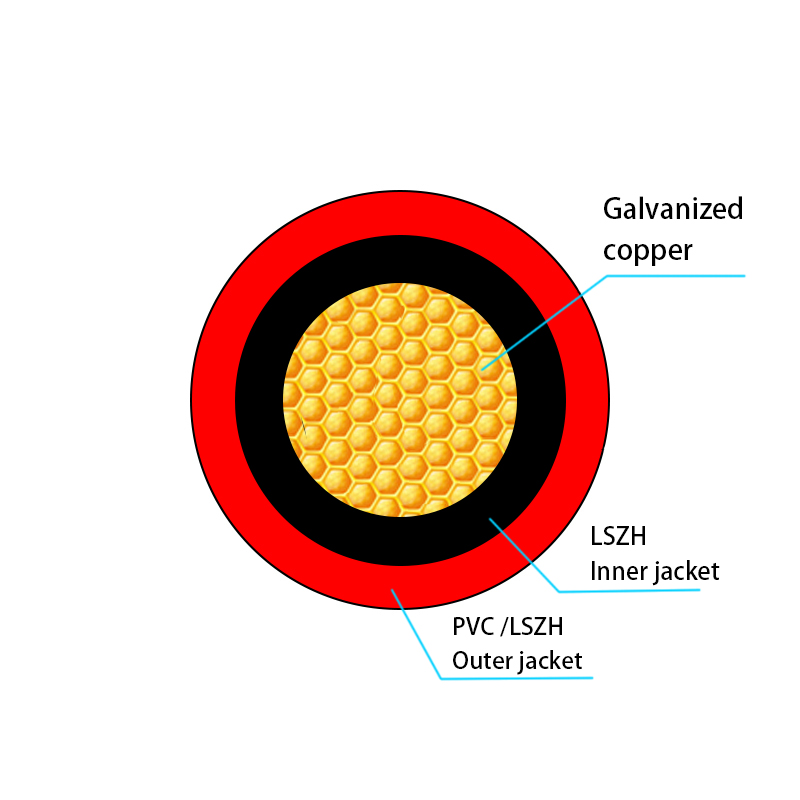

Our solar electric cable using galvanized copper ,Has good electrical conductivity and can withstand higher currents;

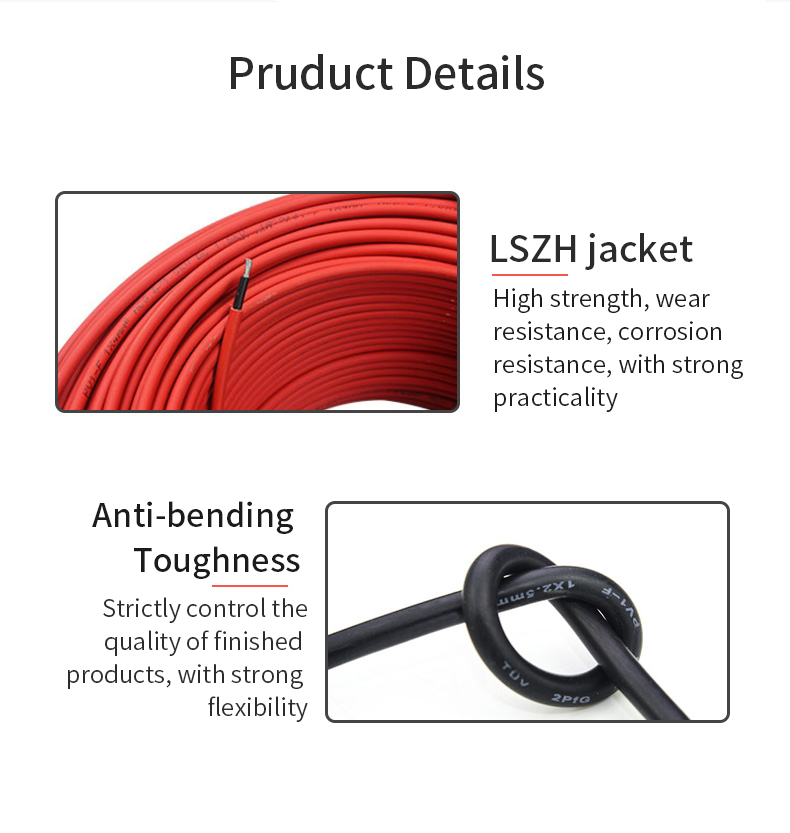

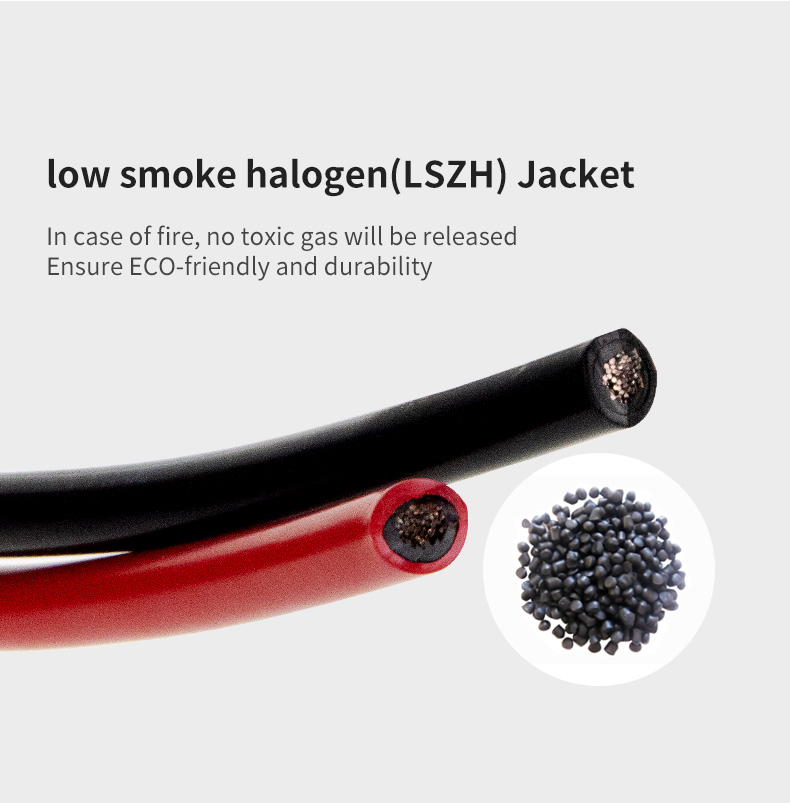

LSZH jacket Durable, high temperature resistant, waterproof,

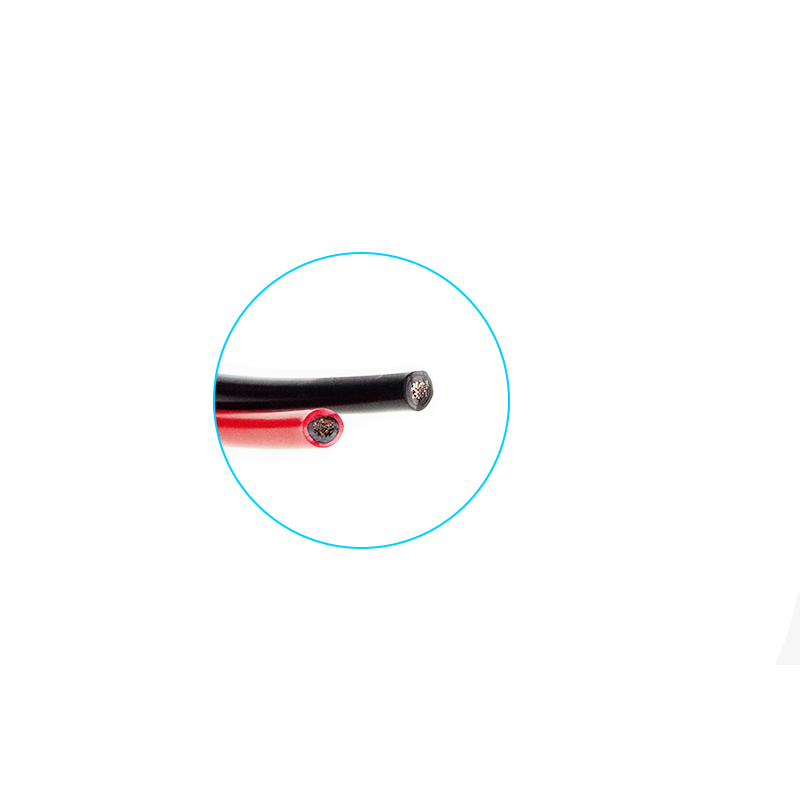

As you can see from the picture, the quality of our finished product is very good, and the sheath is evenly wrapped around theconductor
