Hook up Wire 16 AWG UL1569 PVC Insulated Wire Electrical Cable
2024-10-22 18:043410
| Price | ￥0.10/Piece |
| Min quantity | 10Piece |
| Quantity | 20000Piece |
Product Description

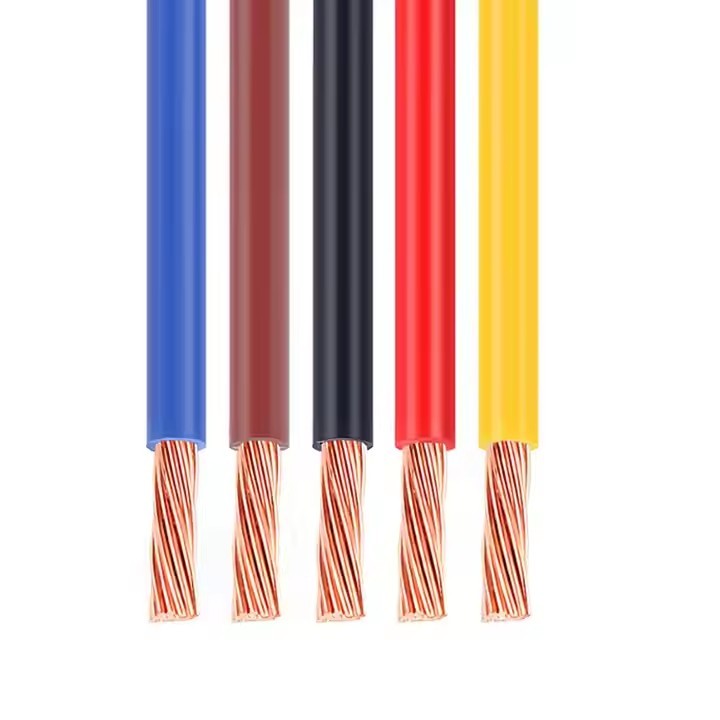

Hook up Wire 16 AWG UL1569 PVC Insulated Wire Electrical Cable
Product Description:
Rated temperature: 80℃ or 90℃ or 105℃
Rated voltage: 300V
Reference Standard: UL Subject 758, UL1581 C22.2 NO.210.2
Tinned or bare, stranded or solid copper conductor,30-10 AWG
Colour-coded lead free PVC insulation
Uniform insulation thickness to ensure easy stripping and cutting
Passes UL VW-1 FT1 vertical flame test
Application: For internal wiring of appliances and electronic equipment
| Conductor | Insulation | Maximum Resistance at 20 ℃ Ω/km | |||
| AWG | No./mm | Dia. mm | Nom. Thick. mm | Nom.Dia. mm | |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.30 | 139 |
| 24 | 11/0.16 | 0.61 | 0.41 | 1.43 | 88.9 |
| 22 | 17/0.16 | 0.76 | 0.41 | 1.58 | 57.5 |
| 20 | 7/0.32 | 0.96 | 0.41 | 1.78 | 34.6 |
| 18 | 41/0.16 | 1.18 | 0.41 | 2.00 | 23.3 |
| 16 | 26/0.254 | 1.49 | 0.41 | 2.32 | 15.1 |
| 14 | 41/0.254 | 1.87 | 0.41 | 2.70 | 9.2 |
