50HZ low rpm 250kw diesel generator set with stamford alternator powered by Weichai marine engine / 150HZ low rpm 250kw diesel generator set with stamford alternator powered by Weichai marine engine / 250HZ low rpm 250kw diesel generator set with stamford alternator powered by Weichai marine engine / 3

50HZ low rpm 250kw diesel generator set with stamford alternator powered by Weichai marine engine

2024-11-12 18:072340
Price ¥16.00/Piece
Min quantity 10Piece
Quantity 20000Piece



Generator Set Data

Generator Model

ONW-250GM

Rated Frequency

50HZ/60HZ


Rated Voltage

220/380V (Can be adjusted)


Prime Power

250kW/312kVA

Standby Power

275kW/330kVA

Engine Data

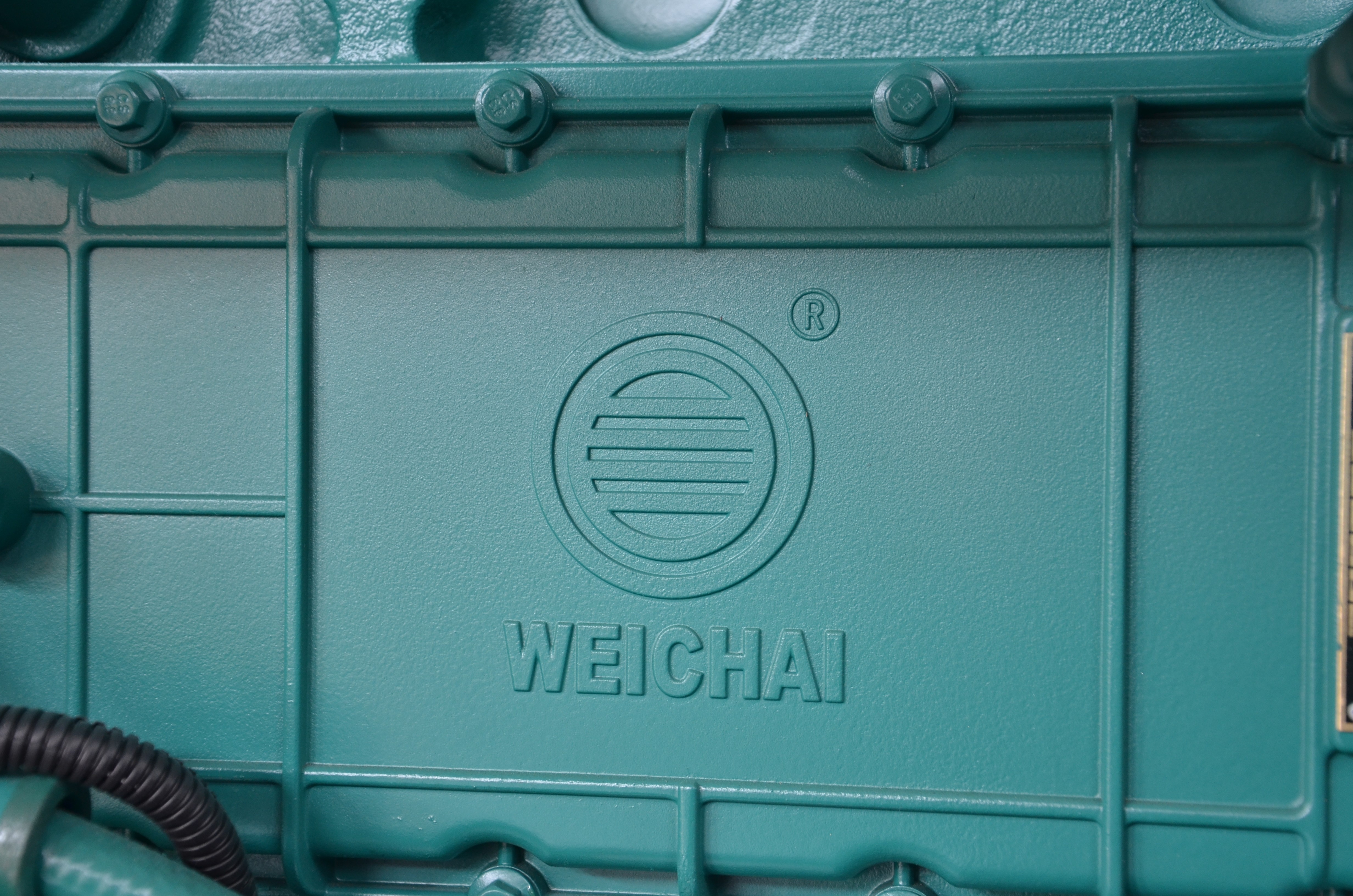

Engine Model

WP12CD317E200

Number of Cylinders

12 cylinders


Prime Power/Speed

250KW / 1500(1800)rpm


Standby Power/Speed

275KW / 1500(1800)rpm

Speed Governor

electrical

Cooling System

Forced water cooling cycle

Fuel Consumption at 100% Load

0.225g/kW*h

Alternator Data

Optional brands

Stamford/Leroy Somer/Marathon

Prime power

250kW

Frequency/speed

50(60)Hz / 1500(1800)rpm


Voltage adjust range

≥5%


Voltage regulation NL-FL

≤±1%

Exciter type

Single bearing, Brushless, Self-excited

Insulation Grade

H

Protection Grade

IP23

Control Panel Data

Optional brands

Deespea / Smartgen
