STEP low cost robotic arm Palletizing Industrial Robot 180kg Payload / 1STEP low cost robotic arm Palletizing Industrial Robot 180kg Payload / 2

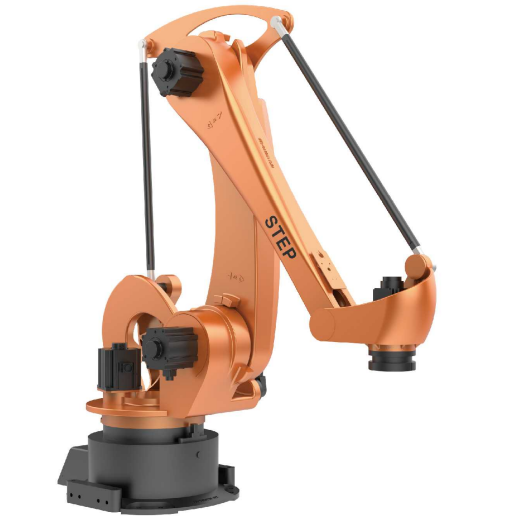

STEP low cost robotic arm Palletizing Industrial Robot 180kg Payload

2022-11-10 16:179440
Price ￥23256.00/Piece
Min quantity 1Piece
Quantity 10000000Piece

Products Show

Product Parameter

Product model

SP180/3200

Wrist Rated Payload

180KG

Max Working Radius

3238mm

DOF

4

Max Speed

J1:140°/s

J2: 80°/s

J3: 120°/s

J4: 340°/s

//Max Operation Area

J1:170°/s

J2: -43-+88°/s

J3: -65-+75°/s

J4: ±360°/s

/

Wrist Allowable Torque

/

Wrist Allowable Inertia

J4: 70 kgm²

Weight

1530KG

Position Repeat Accuracy

±0.3mm

Ambient Temperatuer

0-40℃

Company Profile
