40.5KV High Voltage Metal-Clad Withdrawable Switchgear Panel Steel Material Rated Voltage 12KV & 24K

Product Information

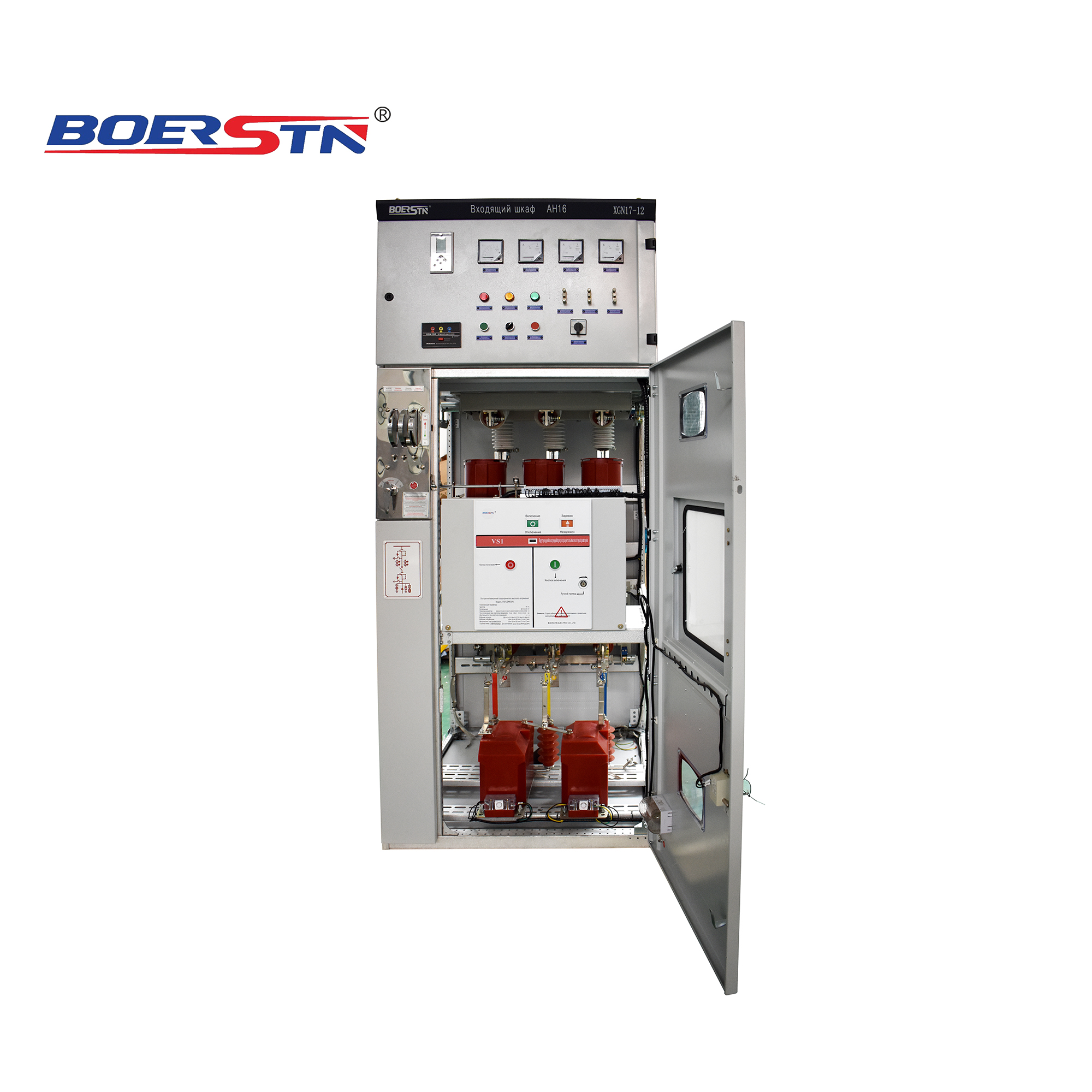

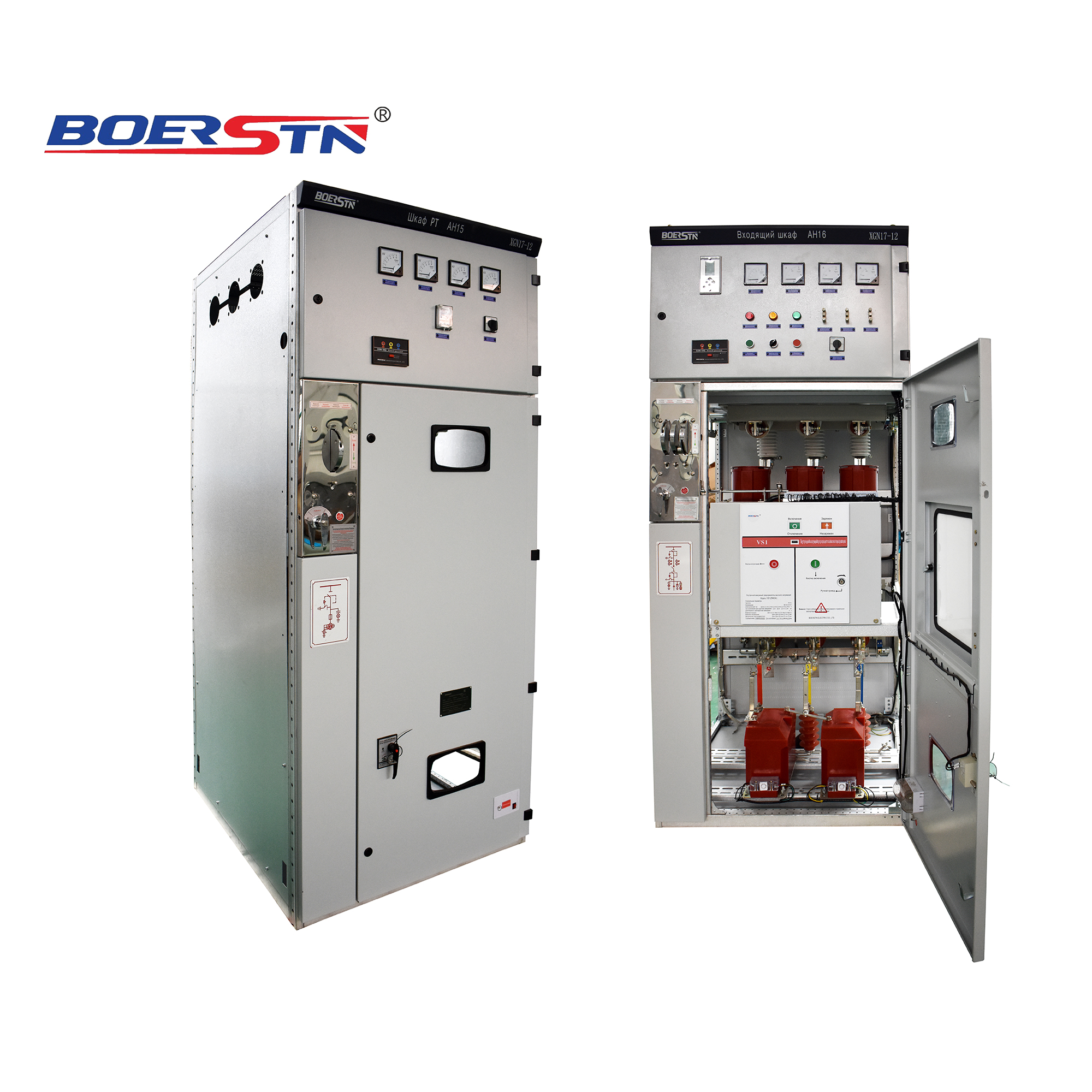

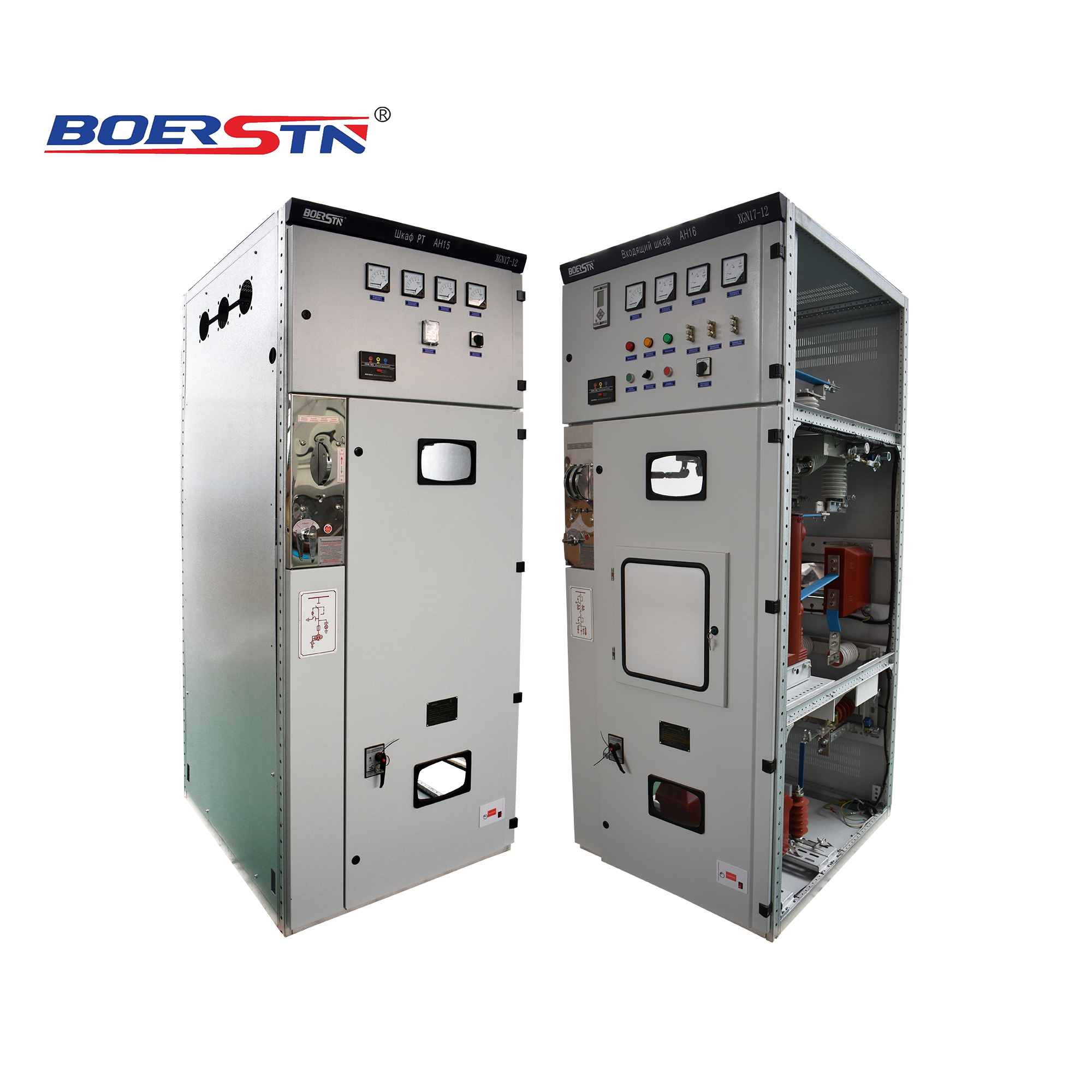

HXGN17 series box type fixed metal enclosed switchgear ,the main primary elements used in the equipment are all redesigning,compared with the currently used handcart switchgear and GG-1 (A) F type switchgear, it has higher insulation level and protection level, and the internal does not use any form of interphase and the relative clapboard and insulation gas, the secondary circuit does not use secondary plugs ; It is widely used in 7.2~40.5kV electric power distribution system, as acceptance and distribution of high voltage power equipment. This product meets the requirements of "five prevention".The products meet IEC298 standards "3~40.5kV AC metal closed switch", .The switchgear meet the requirements of standard IEC62271-200,IEC62271-100 etc.
 * ServiceConditions
1. Ambient temperature：-30℃~ +50℃；
2. Altitude: Not exceed 2500m above sealevel；
3. Ambient humidity: Daily average RH ≤ 95%; Monthly average RH ≤90%
Water vapor pressure:Daily average RH ≤ 2.2kPa; Monthly average RH ≤ 1.8kPa;
There may be condensation, when the temperature plunged with filth, the products apply to the following two conditions more severe than normal
(1). Condensation not frequently(average monthly not more than two times) with mild pollution; (2). There is no condensation (average yearly not more than two times) with serious pollution;
4.No violent vibration, bumps and vertical gradient not more than 8° of place
Note：1. Allow to -30℃ to storage and transportation。
2. When the area of altitude exceed 1000m , according to the JB/Z102 «high voltage electrical appliances using the technical requirements of the altitude» , when the altitude is not more than 2000m, low pressure auxiliary equipment does not need to take any measures.
3. When the actual use conditions is different with the above mentioned information,the user and the manufacturer should be negotiated
