Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China.

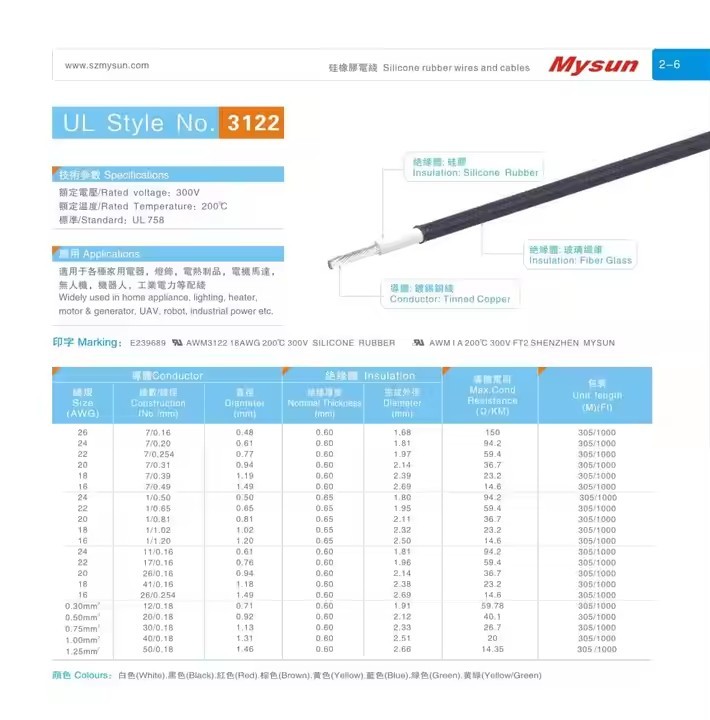

(Conductor) | Insulation | Max.Cond
Resistance
(Ω/KM) | Unit Length
(M)/(Ft) |
Size
(AWG) | Construction
(No./mm) | Diameter
(mm) | Nominal Thickness
(mm) | Diameter
(mm) |
26 | 7/0.16 | 0.48 | 0.60 | 1.68 | 143 | 305/1000 |
24 | 7/0.20 | 0.61 | 1.81 | 89.3 |
22 | 7/0.254 | 0.77 | 1.97 | 56.4 |
20 | 7/0.31 | 0.94 | 2.14 | 35.2 |
18 | 7/0.39 | 1.19 | 2.39 | 22.2 |
16 | 7/0.49 | 1.49 | 2.69 | 14 |
24 | 1/0.50 | 0.50 | 0.65 | 1.80 | 89.3 | 305/1000 |
22 | 1/0.65 | 0.65 | 1.95 | 56.4 |
20 | 1/0.81 | 0.81 | 2.11 | 35.2 |
18 | 1/1.02 | 1.02 | 2.32 | 22.2 |
16 | 1/1.20 | 1.20 | 2.50 | 14 |
24 | 11/0.16 | 0.61 | 0.60 | 1.81 | 89.3 | 305/1000 |
22 | 17/0.16 | 0.76 | 1.96 | 56.4 |
20 | 26/0.16 | 0.94 | 2.14 | 35.2 |
18 | 41/0.16 | 1.18 | 2.38 | 22.2 |
16 | 26/0.254 | 1.49 | 2.69 | 14 |
0.30mm² | 12/0.18 | 0.71 | 0.60 | 1.91 | 59.78 | 305/1000 |
0.50mm² | 20/0.18 | 0.92 | 2.12 | 40.1 |
0.75mm² | 30/0.18 | 1.13 | 2.33 | 26.7 |
1.00mm² | 40/0.18 | 1.31 | 2.51 | 20 |
1.25mm² | 50/0.18 | 1.46 | 2.66 | 14.35 |
