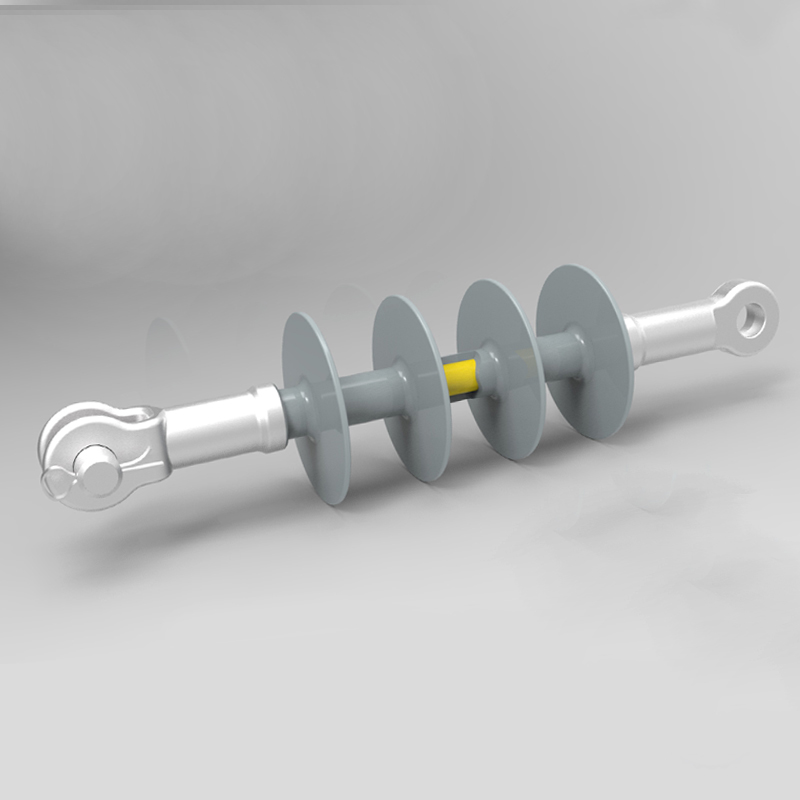

138KV High Voltage Long Rod Polymer Composite Suspension Insulators
| Price | ￥15.00/Piece |
| Min quantity | 1Piece |
| Quantity | 999Piece |
| Deliver | In 7 days |
Overview
Essential details
Place of Origin:
Jiangsu, China
Brand Name:
THIM
Model Number:
FXBW4-110/70
Type:
Insulator, Suspension Insulator
Material:
Composite Polymer
Application:
High Voltage, High voltage line facilities
Rated Voltage:
110KV
Tensile Strength:
70KN
Product name:
138KV High Voltage Long Rod Polymer Composite Suspension Insulators
Color:
Customized
Size:
Customized Size
Insulator fittings:
Ball, Socket, Tongue, Clevis, Flange and so on
Feature:
Light Weight suspension electric composite high voltage insulator
Certification:
IEC,ISO,ASTM,ANSI,GB/T
Sample:
Sample Available
OEM:
Available
Supply Ability
Supply Ability
100 Piece/Pieces per Day Long Rod Polymer Composite Suspension Insulators
Packaging & delivery
Packaging Details
the package of 138KV High Voltage Long Rod Polymer Composite Suspension Insulators
Port
shanghai
138KV High Voltage Long Rod Polymer Composite Suspension Insulators
    |
Our main products are as follows:
1.10kv -750kv silicone rubber insulator
2.Diam.5-180mm Insulator core rod(epoxy resin rod)
3.Many kinds of insulator fittings such as ball,socket,Tongue,Clevis,Flange and so on.
4.Silicone rubber
our website : http://thim.en.alibaba.com/
Product Description
Type | No. Of Sheds | “X” Length inches (mm) | Diameter Inches (mm) | Leakage Distance Inches (mm) | Dry Arc Distance inches (mm) | Lighting withstand voltage | Wet power frequency voltage | Coupling size | SML Pounds (kN) | |
D | d | |||||||||
FXBW-10/70 | 4 | 310 | 105 | 75 | 350 | 152 | 90 | 40 | 16 | 70 |
FXBW-36/40 | 9 | 440 | 130 | 90 | 950 | 320 | 230 | 150 | 16 | 40 |
FXBW-36/100 | 9 | 483 | 130 | 90 | 950 | 320 | 230 | 150 | 16 | 100 |
FXBW-35/70 | 12 | 660 | 135 | 110 | 1600 | 526 | 230 | 150 | 16 | 70 |
FXBW-35/100 | 12 | 680 | 135 | 110 | 1600 | 526 | 230 | 150 | 16 | 100 |
FXBW-66/70 | 20 | 980 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 70 |
FXBW-66/100 | 20 | 1000 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 100 |
FXBW-66/120 | 20 | 1040 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 120 |
FXBW-110/70 | 26 | 1190 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 70 |
FXBW-110/100 | 26 | 1210 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 100 |
FXBW-110/120 | 26 | 1250 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 120 |
FXBW-220/120 | 54 | 2470 | 150 | 120 | 6300 | 2130 | 1000 | 395 | 16 | 120 |
FXBW-220/210 | 56 | 2470 | 170 | 120 | 6300 | 2155 | 1000 | 395 | 20 | 210 |
>> see more
1. Shed connected with core by integral foring.
2. The thinkness of housing > 3mm,unifirm to IEC Standard.
3. Acid resistant,hight temperature resistant of epoxy fiberglass core.
4. metal end fittings,core and sheds connected by new crimping process.
5. Hot galvanization and technology of rareearth aluminum coating to avoid coating shedding prolonging the service life.
(1)Small volume,light weight,sheds have good elasticity, not broken, convenient transportation and installation, economy.
(2)High mechanical strength FRP ROD has high tensile strength, small size, light weight, high tensile strength.
(3)High antifouling property,good aging resistance performance, high anti pollution flashover voltage, good electric corrosion resistance.
(4)Easy installation,greatly reduce mainternance charges and manual labor intensity.
(5)Simple production process,short delivery time.
Testing Equipment
We have a strict quality assurance system, first-class production equipment and inspection instrument, and multiple technical talented persons. The quality of our products accords with IEC,ISO,ASTM,ANSI,GB/T,Q/G-DW,JB/T,DL etc.
