Free sample 10mm 25mm 50mm 70mm 95mm flexible copper wire cable price per meter
2022-11-07 16:328370
| Price | N/A |

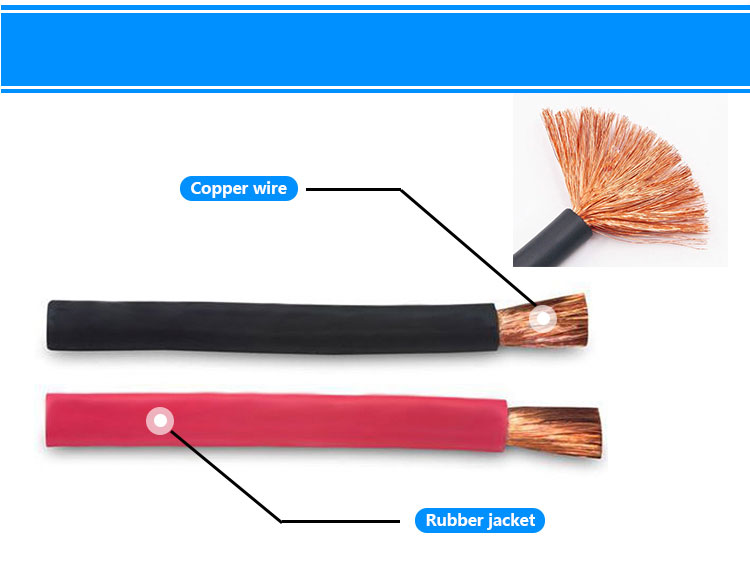

Product Description
Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012Main of cables features
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
Application:
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, householdelectrical applance,insurment and telecommunication equipment.
Conductor ( mm2) | Conductive Core | Thickness of Section Sheath (mm) | Average Outer Diameter (mm2) | 20oC Conductor Resistance≤(Ω/km) | Reference Weight(kg/km) | ||||||
| Number/Diameter of Core(mm) | Min | Max | YH | YHF | |||||||
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 146 | 153.51 | 146 | 153.51 | |||
| 16 | 513/0.20 | 2 | 9.2 | 11.5 | 218.9 | 230.44 | 218.9 | 230.44 | |||
| 25 | 798/0.20 | 2 | 10.5 | 13 | 316.6 | 331.15 | 316.6 | 331.15 | |||
| 35 | 1121/0.20 | 2 | 11.5 | 14.5 | 426 | 439.87 | 426 | 439.87 | |||
| 50 | 1596/0.20 | 2.2 | 13.5 | 17 | 592.47 | 610.55 | 592.47 | 610.55 | |||
| 70 | 2214/0.20 | 2.4 | 15 | 19.5 | 790 | 817.52 | 790 | 817.52 | |||
| 95 | 2997/0.20 | 2.6 | 17 | 22 | 1066.17 | 1102.97 | 1066.17 | 1102.97 | |||
| 120 | 1702/0.30 | 2.8 | 19 | 24 | 1348.25 | 1392.55 | 1348.25 | 1392.55 | |||
| 150 | 2135/0.30 | 3 | 21 | 27 | 1678.5 | 1698.72 | 1648.5 | 1698.72 | |||
| 185 | 1443/0.40 | 3.2 | 22 | 29 | 1983.8 | 2020.74 | 1983.8 | 2020.74 | |||
