Factory Direct Price wire flat cable BVVR Multicore Low Voltage Electrical Cable Wire 2.5mm House Wi / 1Factory Direct Price wire flat cable BVVR Multicore Low Voltage Electrical Cable Wire 2.5mm House Wi / 2Factory Direct Price wire flat cable BVVR Multicore Low Voltage Electrical Cable Wire 2.5mm House Wi / 3

Factory Direct Price wire flat cable BVVR Multicore Low Voltage Electrical Cable Wire 2.5mm House Wi

2024-12-30 18:553390
Price ¥0.79/Piece
Min quantity 10Piece
Quantity 20000Piece



Product quality control system

We have 4 steps to make sure the product with fine quality. 1.Self-inspection(Operators of each process will do self-inspection during their work); 2.Mutual-Inspection(Operator in next working process will do inpection for previous processes); 3.Perform In-process quality audit(Inspectors from quality department will do spot inspection during production); 4.Special inspection(inspectors from quality department will do special inspection for the final product) Competitive price and flexible payment terms (All kinds of payment are available, such as L/C, T/T, Westerm Union and so on)

Nominal section(mm²)

Number of conductors

Toplimit of overall diameter(mm)

Maximum DC resistance(20℃)(Ω/km)

Minimum insulation resistance(70℃)(MΩ.km)

Recommended value of carrying capacity(A)

Reference weight(kg/km)

2x0.75

1

4.6x7.1

24.5

0.012

13

42

2x1.0

1

4.8x7.4

18.1

0.011

16

49

2x1.5

1

5.3x8.5

12.1

0.011

20

65

2x2.5

1

6.2x10.1

7.41

0.01

27

97

2x4

1

6.7x11.1

4.61

0.0085

38

140

2x6

1

7.5x12.5

3.08

0.007

50

192

2x10

2

9.5x16.2

1.83

0.0065

69

306

3x0.75

1

4.6x9.6

24.5

0.012

9.5

60

3x1.0

1

4.8x10.1

18.1

0.011

11

70

3x1.5

1

5.3x11.7

12.1

0.011

13

95

3x2.5

1

6.2x14.0

7.41

0.01

21

142

3x4

1

7.0x15.8

4.61

0.0085

27

213

3x6

1

7.5x17.5

3.08

0.007

34

284

3x10

2

9.5x23.0

1.83

0.0065

55

457

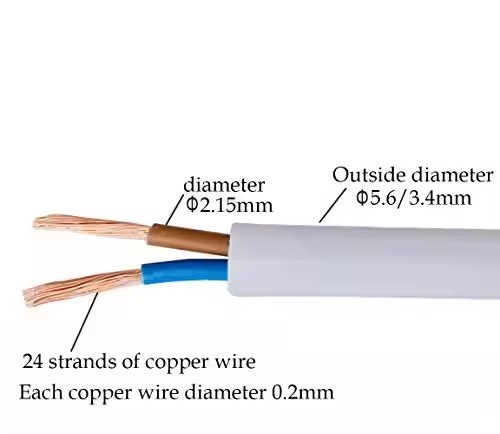

Product Details

1. High purity oxygen-free copper


   Using 99.9% high-purity copper core, stable conduction and strong current load capacity.

 2. Double insulating flame retardant layer

 The double-layer material adopts polyvinyl chloride as the isolation layer, and the cable eccentricity is low to prevent breakdown and avoid fire. To improve the flexibility, corrosion resistance and cold resistance of the cable.

The outermost insulating layer is made of new flame retardant material, which does not burn away from open fire, has no pungent odor, and is not easy to wear when laying wires
