3 Phase Pad-mounted Box Transformer Substation Compact Cubicle Transformer Substation Electrical Sub

Box-type substation is also called prefabricated substation. It combines high-voltage switchgear, distribution transformers and low-voltage power distribution devices into a single factory prefabricated indoor and outdoor compact power distribution equipment according to a certain wiring scheme, which organically combines functions such as transformer step-down and low-voltage power distribution. Installed in a moisture-proof, rust-proof, dust-proof, rat-proof, fire-proof, anti-theft, heat-insulation, fully-enclosed, and movable steel structure box. Box-type substations are divided into European-style box-type substations, American-type box-type substations, and underground box-type substations.

Products Description

YBD Buried Type Box Substation

Buried box-type substation is mainly composed of buried transformer and outdoor switchgear of advertising light box. The buried transformer is a new type of compact substation equipment composed of a transformer, a high-voltage load switch, a fuse, etc., which is installed in a pit, does not occupy the surface space, and can be submerged in water for a period of time. The outdoor switchgear of advertising light box is a hybrid structure integrating billboards and outdoor switchgear, and is installed on the ground.The inside of the box is an outdoor high and low voltage power distribution cabinet, and both sides are advertising light boxes, which have excellent visual effects. The fully buried type is also called an underground substation. Its box has excellent anti-corrosion and compression resistance, and has absolute air tightness.

Product Features:

1.It can greatly save land, without land acquisition and civil construction, and save infrastructure investment. 2.There are no obstacles on the ground, which does not affect the environment, and does not affect people's vision and scenery. 3.The fully buried type installed on the lawn and green belt can also be designed with some decorative ornaments on the ground, such as sculptures, rockery, etc.; if the ground requires no obstacles (including ventilation ducts), you can choose a square type prefabricated substation. 4.The power distribution equipment of the fully buried prefabricated substation is set underground, which is safe and reliable. 5.The ground is not affected by transformer noise. 6.As the underground is relatively shady and cool, the temperature rise of the transformer is relatively stable during operation. 7.The internal space of the fully buried prefabricated substation is relatively spacious, and the maintenance operation will not cause interference on the ground, and will not interfere with the surrounding environment.

Transformer:S series of oil immersed transformer.

Product Standard:

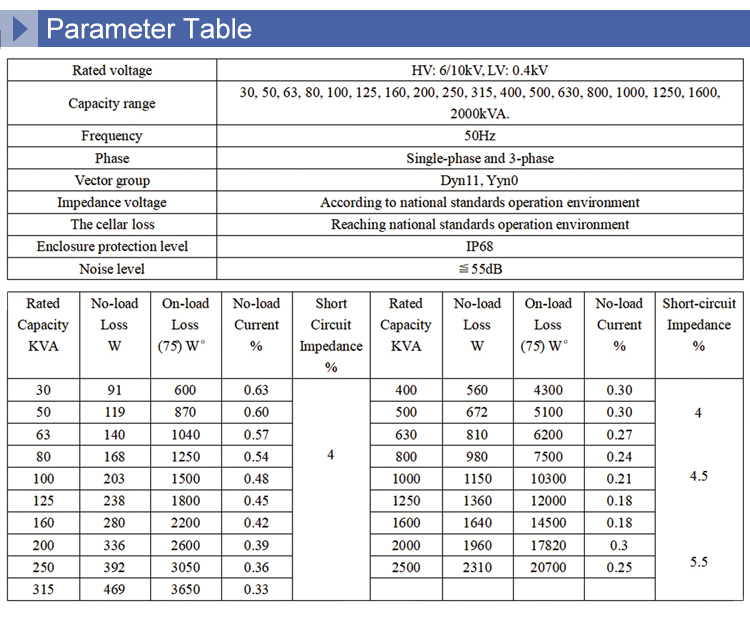

1.GB10941.2-1996 "Power Transformer" 2.GB109435-2003 "Power Transformer" 3.GB/T6451-1999 "Three-phase Oil-immersed Transformer Technical Parameters and Requirements" 4.GB/T15164-1994 "Guidelines for the Load of Oil-immersed Power Transformers" 5.JB/T10544-2006 "Underground Transformer" 6.GB/T15164-1994 "Guidelines for the Load of Oil-immersed Power Transformers" 7.JB/T10544-2006 "Underground Transformer" B Insulation Level L175AC35/AC59 Protection Class: IP68
