2024 new QingOu Wholesale Pure Copper Braided 2 Core 3 Core Electric Wire Coils PVC Insulated Cable
| Price | ￥0.25/Piece |
| Min quantity | 10Piece |
| Quantity | 20000Piece |
How to ensure that the product is shipped normally? And is it a product that I purchased? Please select online order at the time of payment. If you choose to pay, you will no longer have to worry.
Usage
Usage
Applicable to the cables and wires of rated yolatage300V/500V and less than 300/500V AC for power plant, householdelectrical applance,insurment and telecommunication equipment.
Specification,size and technological parameter
Specification,size and technological parameter
Cross-sectional area(mm) | Number/diameter of core(mm) | Maximum outer diameter(mm) | Maximum outer diameter(mm ) | Reference weight(kg/km) | Reference weight(kg/kg) | Conductor resistance at 20℃≤(Ω/km) | Conductor resistance at 20℃≤(Ω/km) | |||
alumimum | copper | copper | alumimum | alumimum | copper | |||||
2*1.5 | 2*1/1.38 | - | 5.4*8.4 | 65.9 | 12.1 | - | - | |||
2*2.5 | 2*1/1.78 | 6.2*9.8 | 6.0*9.8 | 95.7 | 64.9 | 11.8 | 7.41 | |||
2*4 | 2*1/2.25 | 6.8*11.0 | 7.2*11.5 | 146.0 | 80.7 | 7.39 | 4.61 | |||
etc. | ||||||||||

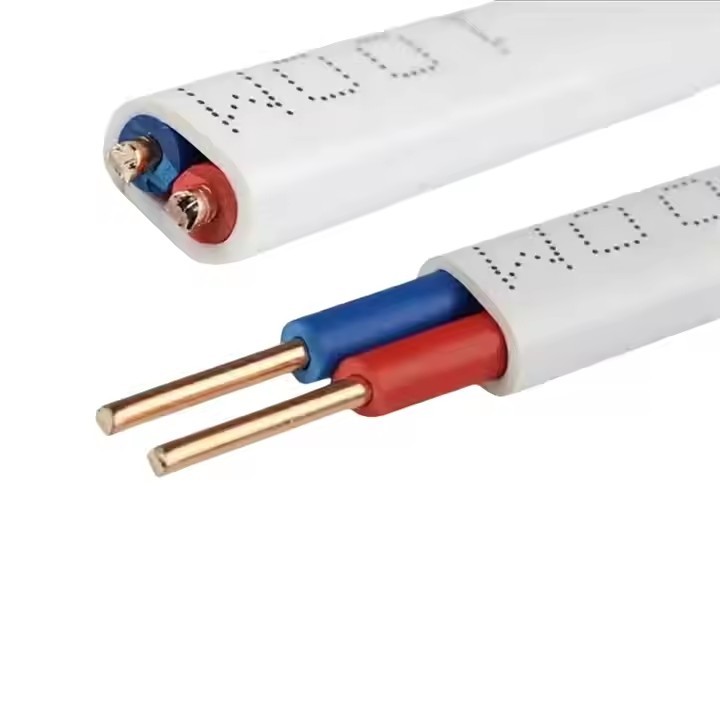

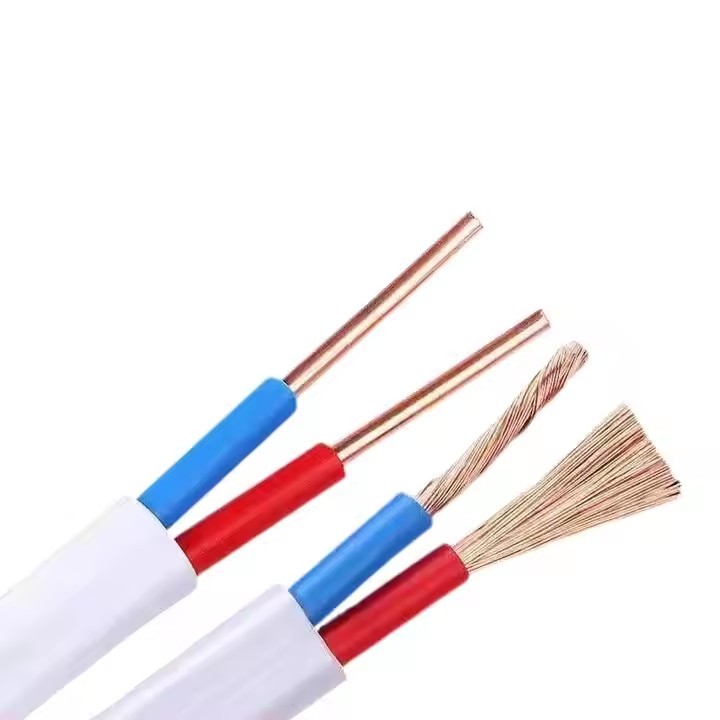

Details drawing
Details drawing
