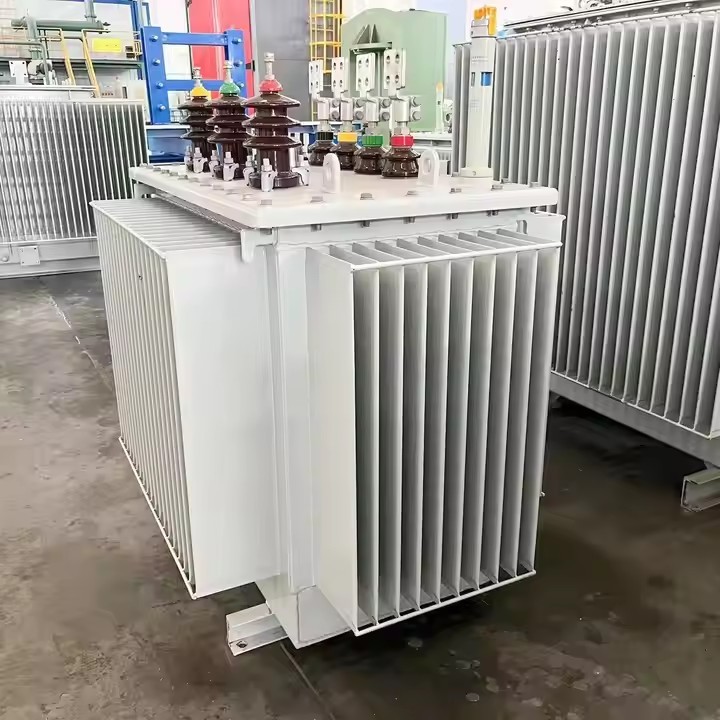

Manufacturer Price 50KVA 100 KVA 200KVA 11KV to 400V 50hz Dyn11 Three Phase Oil-immersed Transformer

2025-02-13 17:273340

Rated Capacity (kVA)	Voltage Combination (kV)			Connection group symbol	No-load loss (W)	Load loss (W)	No-load current %	Short-circuit impedance %
Rated Capacity (kVA)	H.V. (kV)	High voltage tapping	L.V. (kV)	Connection group symbol	No-load loss (W)	Load loss (W)	No-load current %	Short-circuit impedance %
30	6 6.3 10 10.5	±2x2.5 ±5	0.4	Dyn11 Yzn11 Yyn0	100	630/600	1.5	4.0
50					130	910/870	1.3
63					150	1090/1040	1.2
80					180	1310/1250	1.2
100					200	1580/1500	1.1
125					240	1890/1800	1.1
160					280	2310/2200	1.0
200					340	2730/2600	1.0
250					400	3200/3050	0.9
315					480	3830/3650	0.9
400					570	4520/4300	0.8
500					680	5410/5150	0.8
630				Dyn11 Yyn0	810	6200	0.6	4.5
800					980	7500	0.6
1000					1150	10300	0.6
1250					1360	12000	0.5
1600					1640	14500	0.5
2000					1940	18300	0.4	5.0
2500					2290	21200	0.4	5.0
We provide you with customized services, if you have any questions about the parameters table, please click here.
