Low Noise Car Hookup Cable 1.5sq Red and Black Loud Speaker Audio Cable 2 Core Speaker Cable / 1Low Noise Car Hookup Cable 1.5sq Red and Black Loud Speaker Audio Cable 2 Core Speaker Cable / 2Low Noise Car Hookup Cable 1.5sq Red and Black Loud Speaker Audio Cable 2 Core Speaker Cable / 3

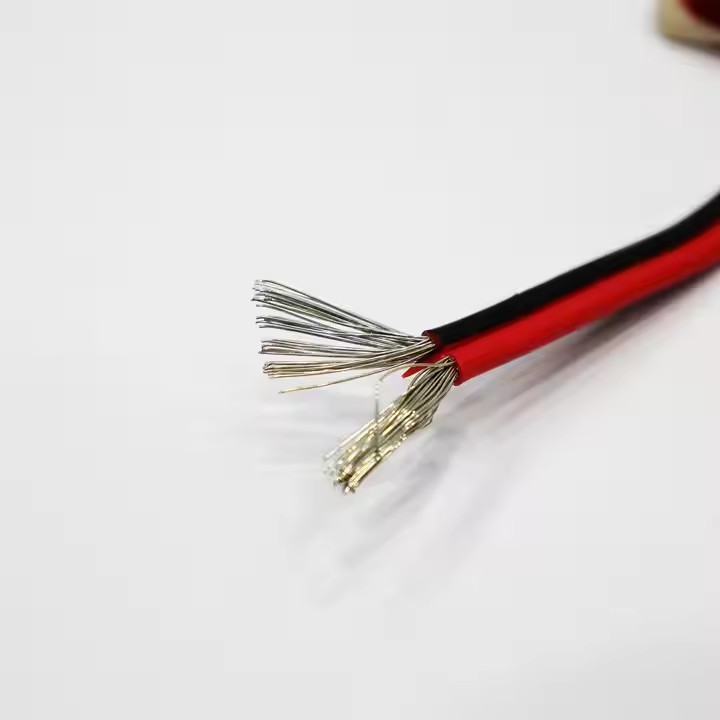

Low Noise Car Hookup Cable 1.5sq Red and Black Loud Speaker Audio Cable 2 Core Speaker Cable

2025-04-07 14:112330
Price ￥0.65/Piece
Min quantity 10Piece
Quantity 20000Piece






Products Description

The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012 Main of cables features

1,Uo/U is 450/750V,300/500,

2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.

Application: Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power plant, householdelectrical applance,insurment and telecommunication equipment.

Nominal section
(mm²)

Toplimit of overall diameter
(mm)

Maximum DC resistance
(20℃)

Minimum insulation resistance
(70℃)

Recommended value of carrying capacity
(A)

Reference weight
(KG,KM)

2X0.3

2.3X4.3

69.2

0.016

7.4

12.6

2X0.4

2.5X4.6

48.2

0.014

9

16

2X0.5

3.0X5.8

39.0

0.013

10

22

2X0.75

3.2X6.4

26.0

0.011

13

29

2X1

3.3X6.6

19.5

0.01

16

35
