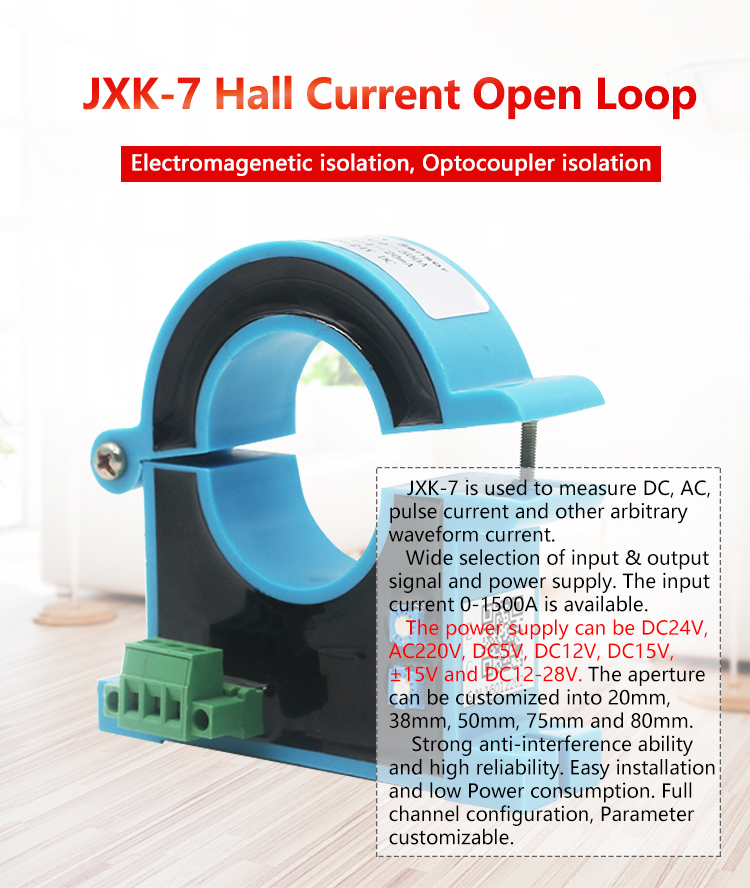

JXK-7 Open Loop AC/DC Current Transmitters 0-10A-1500A Input Hall Effect Current Sensor
2022-11-14 15:079870
| Price | ￥45.00/Piece |
| Min quantity | 1Piece |
| Quantity | 10000000Piece |
| Technical Parameter | |
| Installation | Plane screw fixation |
Original Side rated current | 50A;100A;200A;500A;800A;1000A;Customized |
Original Side Measuring Range | 100A~1200A |
Rated Output | 5V;DC0~20mA;DC4~20mA;Customized |
| Auxiliary Power Supply | DC12V;DC24V;DC±12V;DC±15V |
| Load Capacity | Voltage Output:5mA; Current Output:6V |
| Temperature Drift | ≤500PPM/℃ |
| Consumption Current | ≤25mA |
| Respond Time | <200ms |
Isolation Pressure Resistance | 2.5kV/50Hz,1Min |
| Frequency Bandwidth | DC~20KHz |
| Offset Voltage | ≤20mvV |
| Zero Point Output | ≤0.15mA |
| Working Temperature | -10℃~+70℃ |
| Storage Temperature | -25℃~+85℃ |
| Di/Dt Follow | >50A/uS |

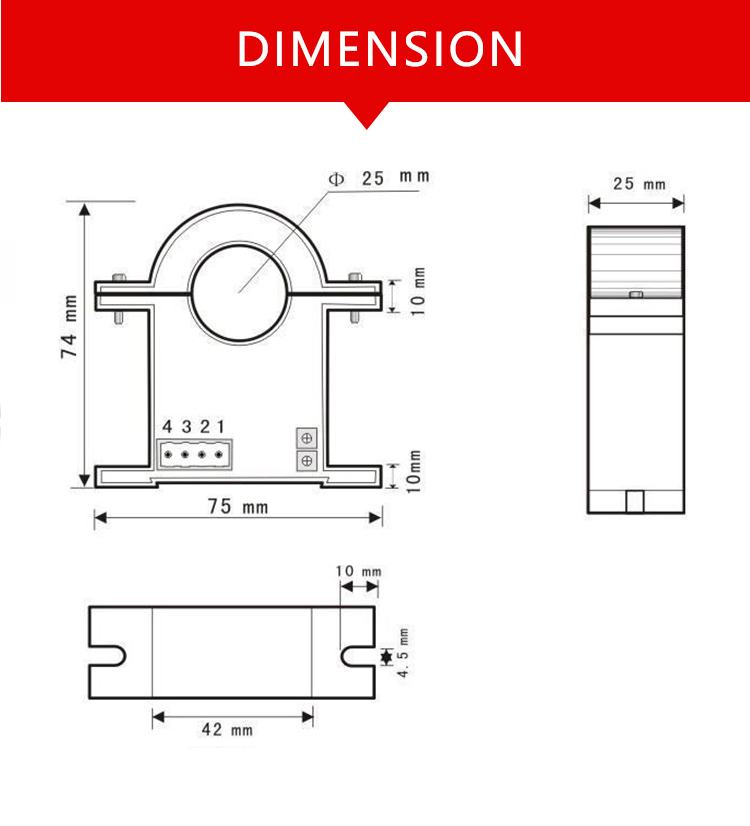

Dimension

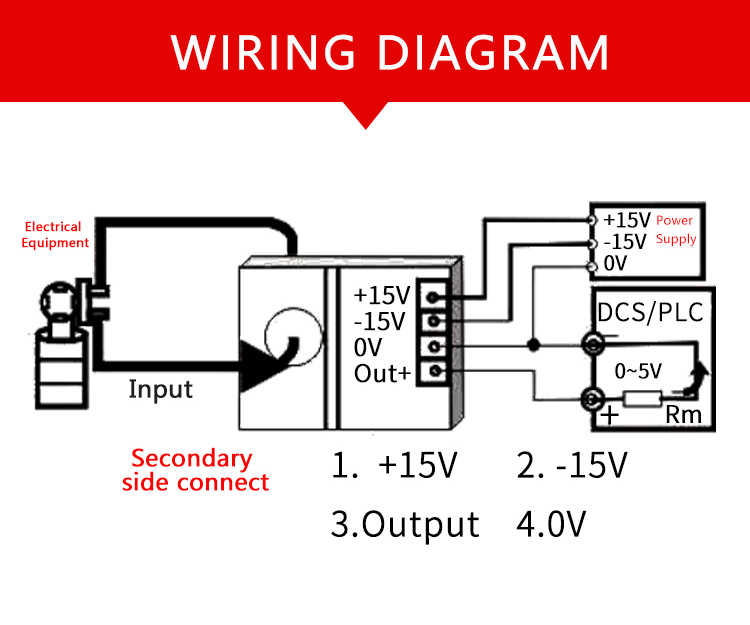

Wiring Diagram

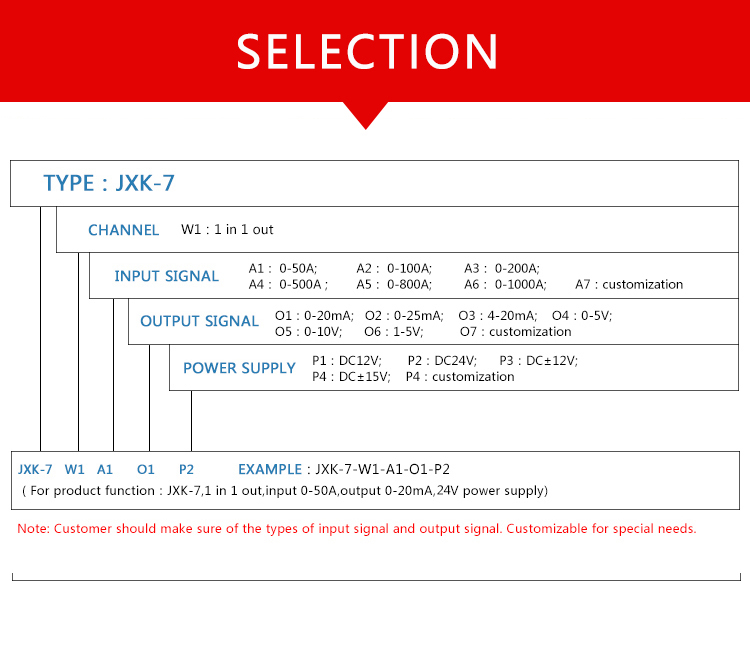

Selection

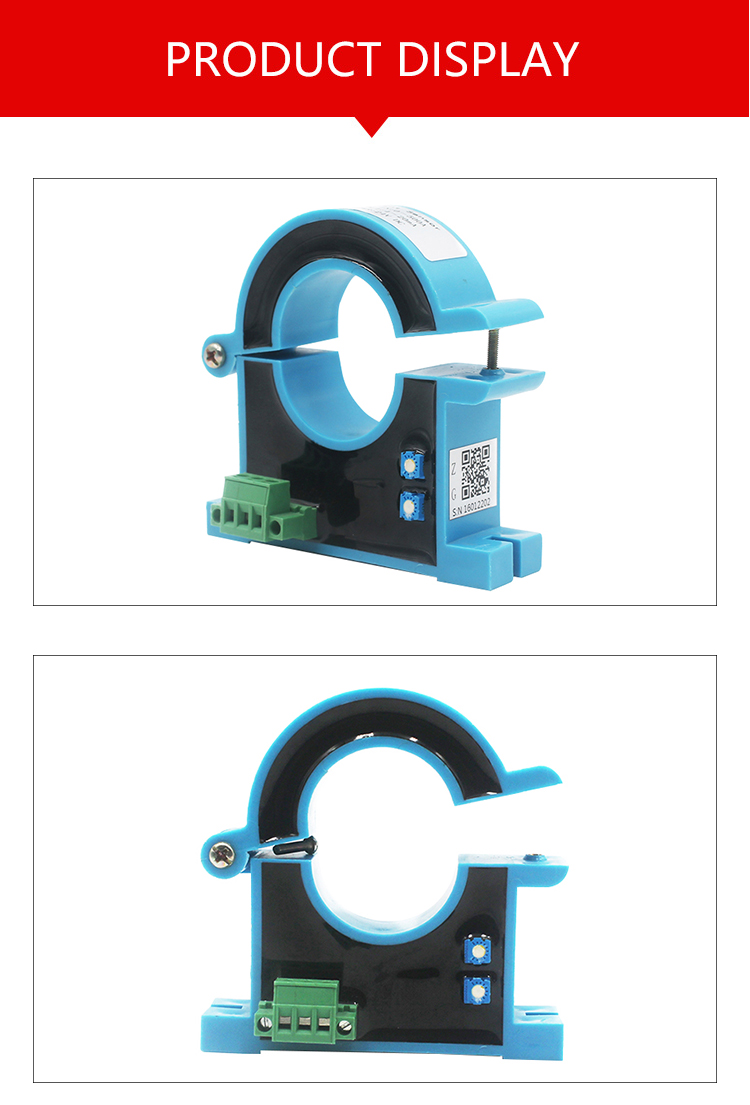

Product Display
Certification
Application
Company&Factory
Shipping&Payment
