JXK14 open loop hall effect current sensor with ce high accuracy current transducer 0-10v

Packaging & delivery

• Packaging Details

Each unit has original individual box, all boxes are packed in standard packages.

• Port

Shanghai

• Lead time:

• Quantity(pieces)	1 - 50	51 - 200	>200
  Lead time (days)	5	8	To be negotiated

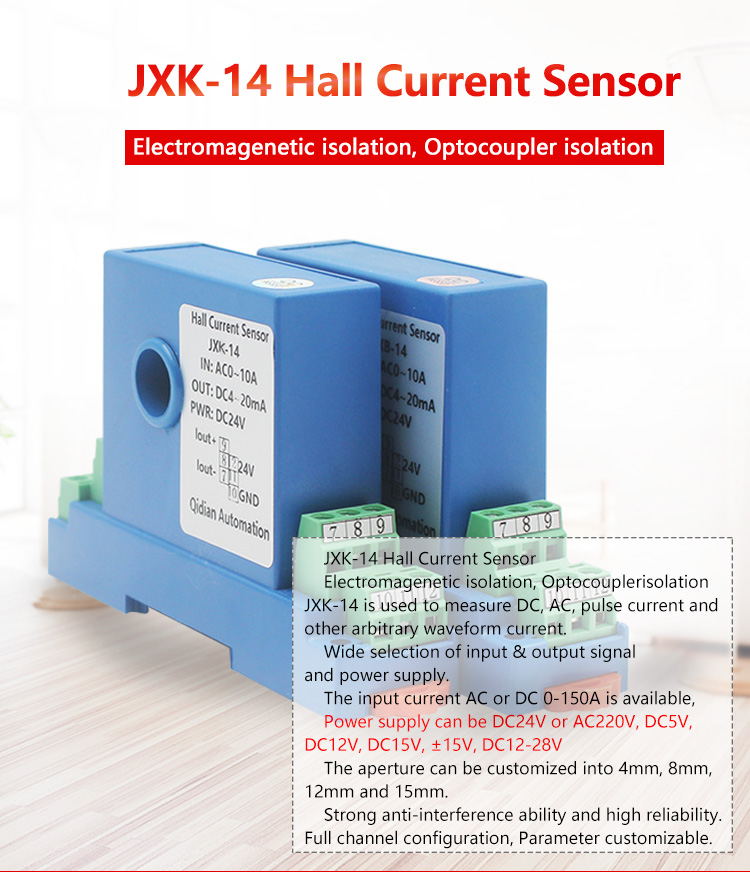

JXK14 open loop hall effect current sensor with ce high accuracy current transducer 0-10v

Introduction

<1>Working principle:  open loop direct measurement.

<2>Product uses:  Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>Product advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<4>Product application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.Full channel configuration,Parameter customizable.

Technical Parameter

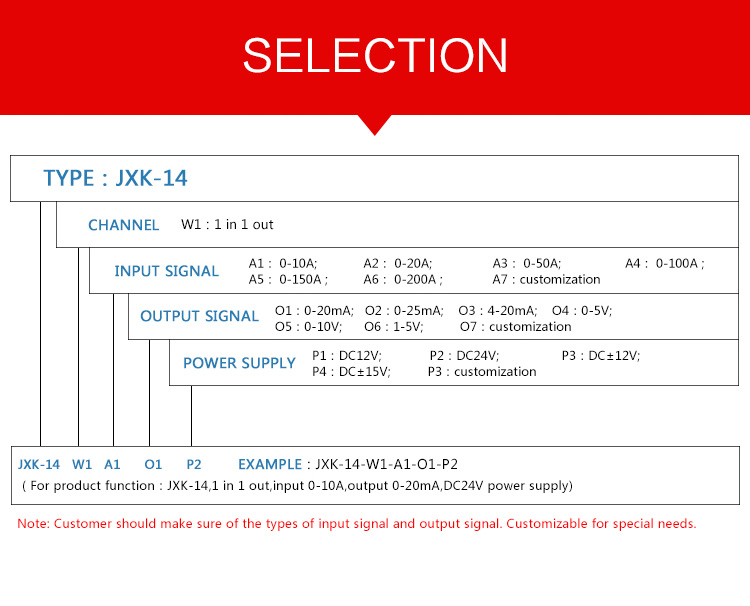

Product Selection

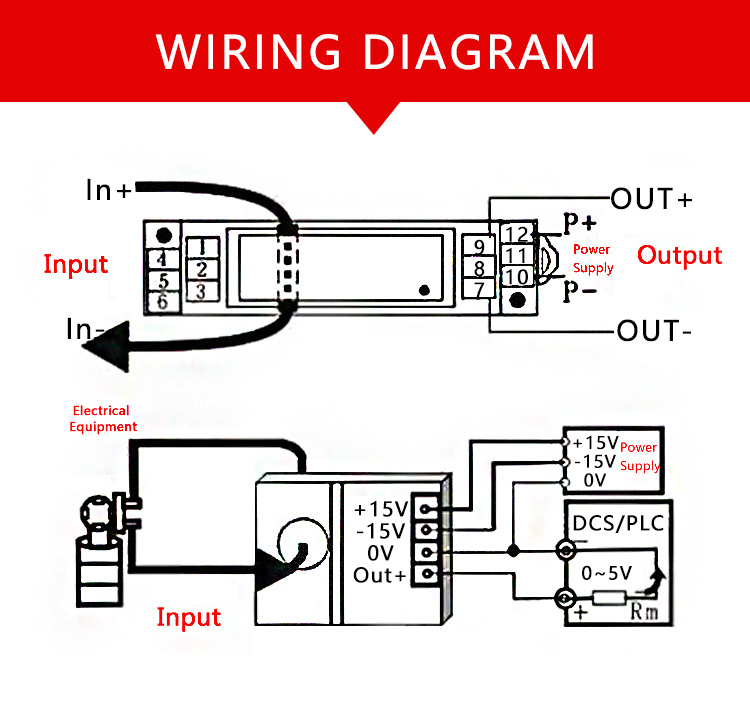

Wiring Diagram

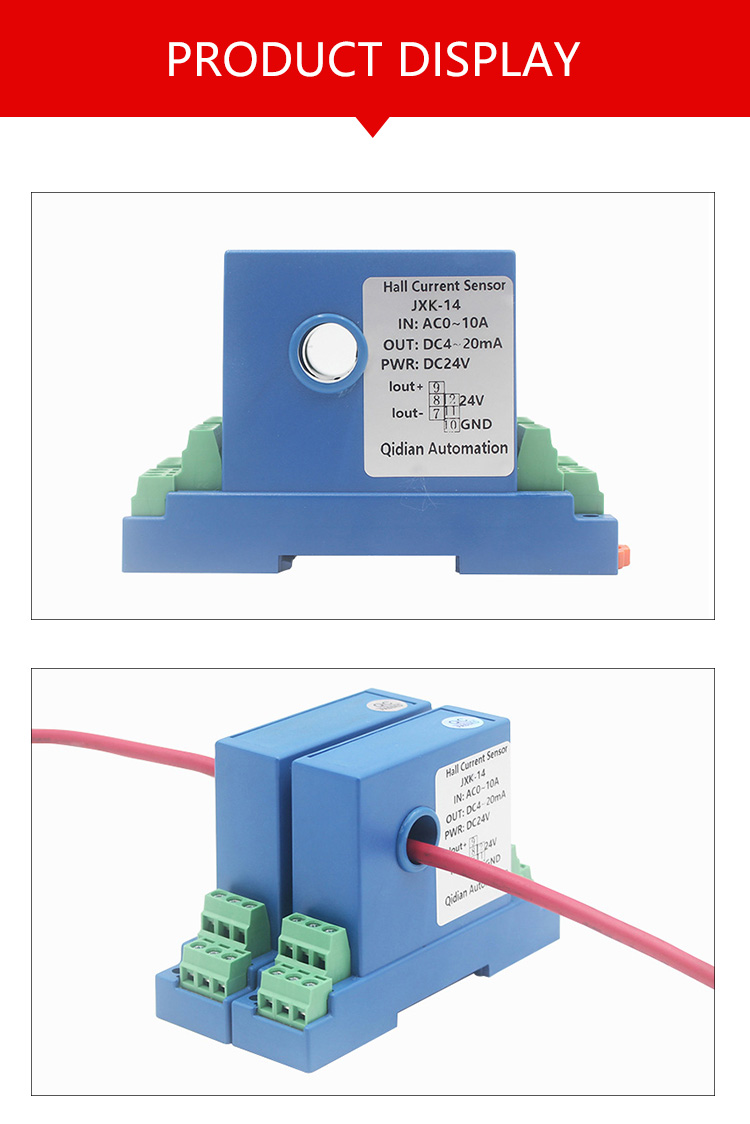

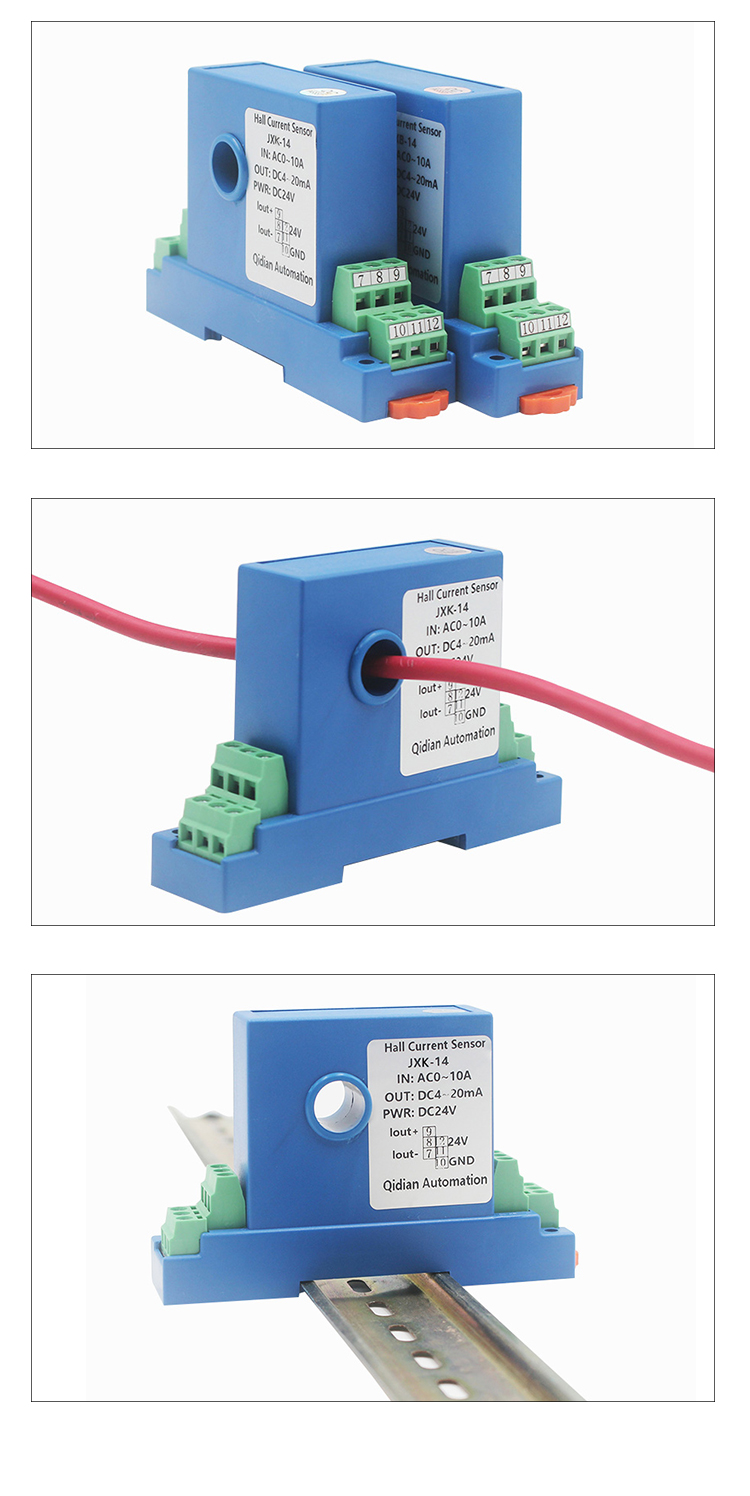

Product Display
