Ac / dc currency transmitter din rail 0-50A input hall current transducer output 4-20ma current sens

Packaging & delivery

• Packaging Details

Each has original individual box,all boxes are packed in standard packages.

• Port

SHANGHAI

• Lead time:

• Quantity(pieces)	1 - 10	11 - 100	>100
  Lead time (days)	7	20	To be negotiated

JXK14 AC/DC current transmitter adopts the Hall principle, which directly converts AC high-current signals from industrial sites
into standard analog signals, and the input and output signals have a linear relationship.
<1>. Working Principle: Open loop direct measurement
<2>. Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>. Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input
and no insertion loss.

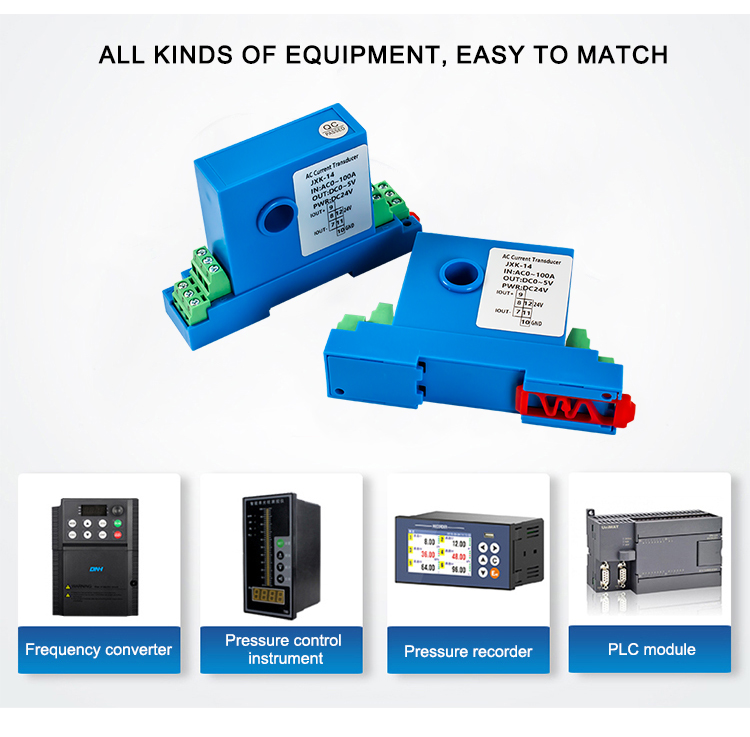

<4>. Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply
monitoring,electric locomotive, low level starting protection.
<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<6>. Full channel configuration, parameter customizable.

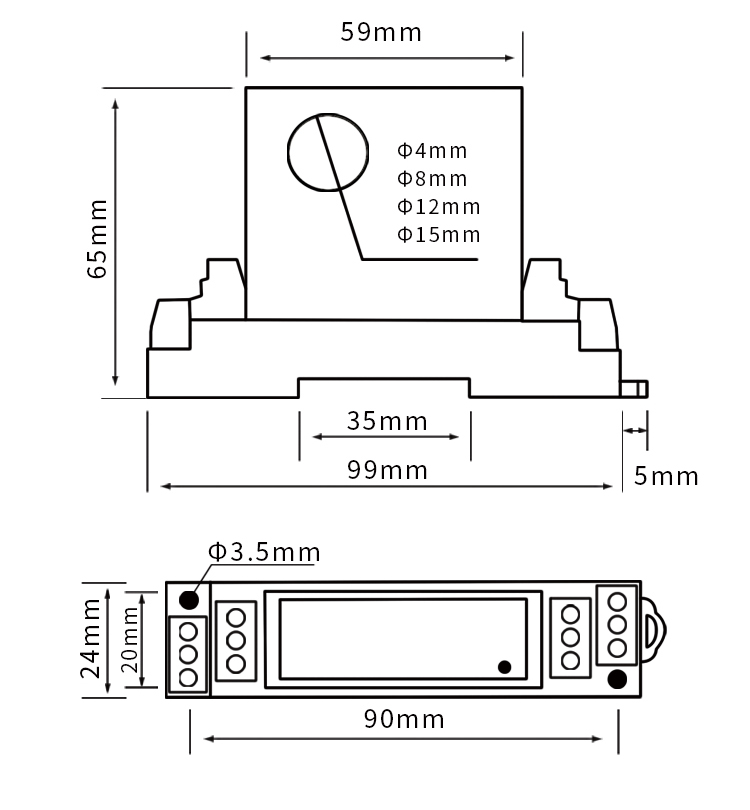

Product size

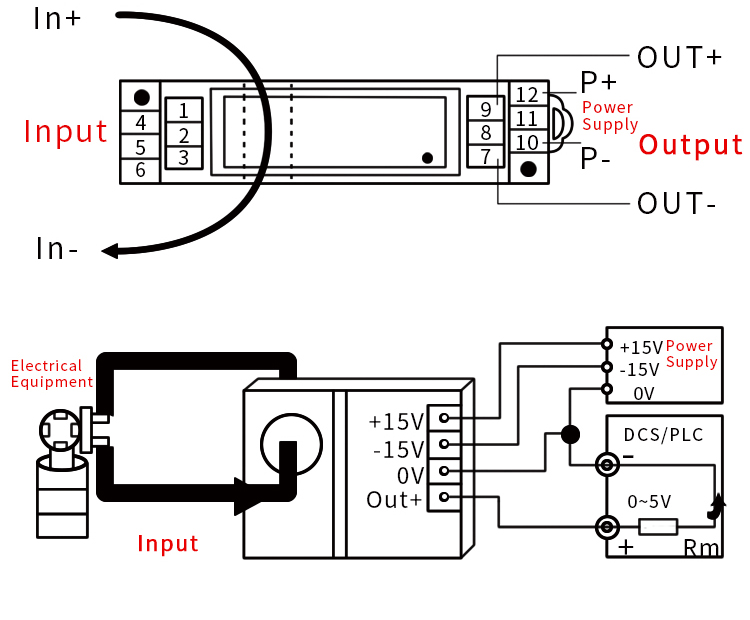

Wiring Digram

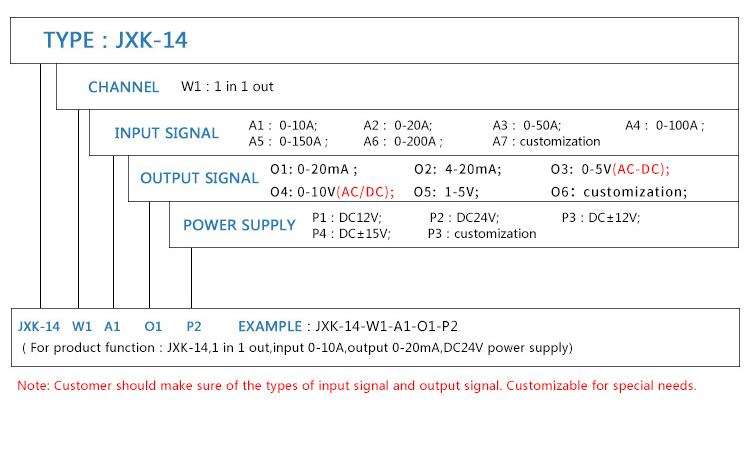

Selection
