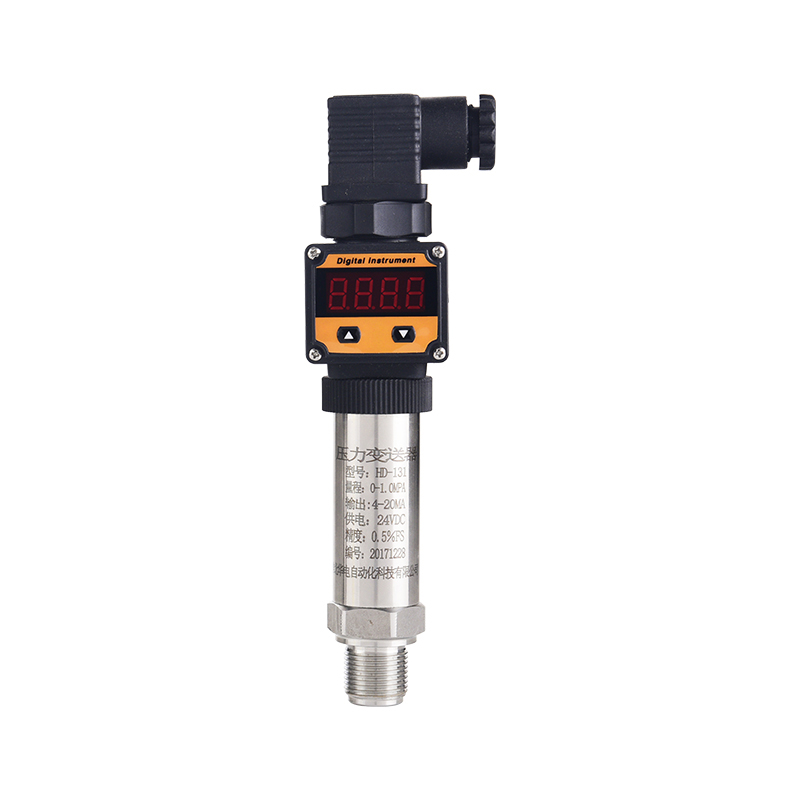

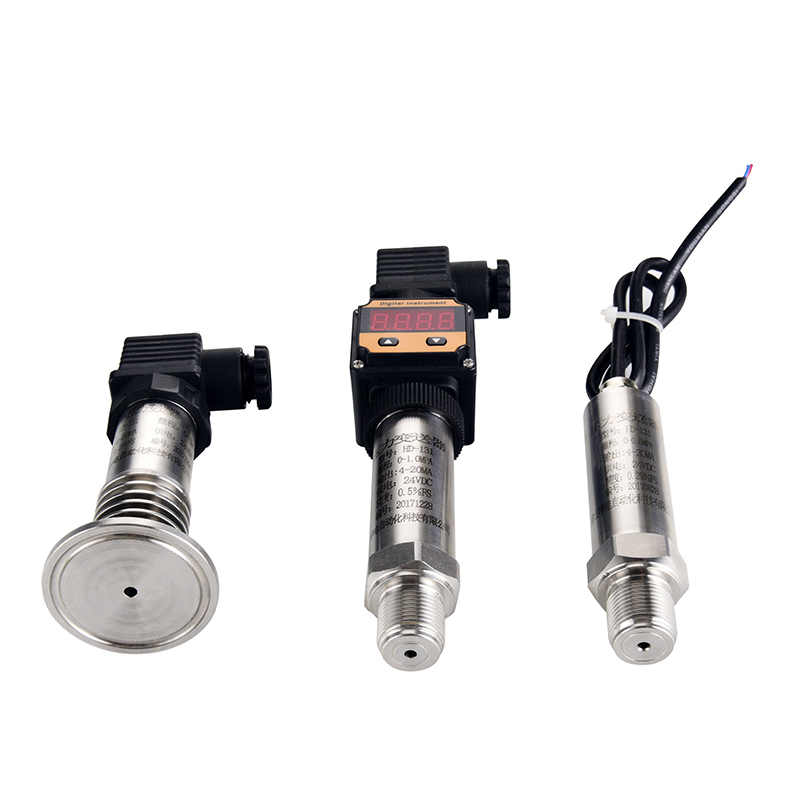

Digital display 4-20mA Pressure Transducer QD-131 0-10V Pressure Transmitter Pressure Sensor
| Price | ￥86.00/Piece |
| Min quantity | 1Piece |
| Quantity | 10000000Piece |
Digital display 4-20mA Pressure Transducer QD-131 0-10V Pressure Transmitter Pressure Sensor
Ordering Guide
We will recommend you suitable products and offer you product selection, please note the parameters:
(1) Pressure range? 0-4kPa-20kPa,~70kPa....100Mpa (option).
(2) Application and medium? Is it Liquid or Gas, or other?

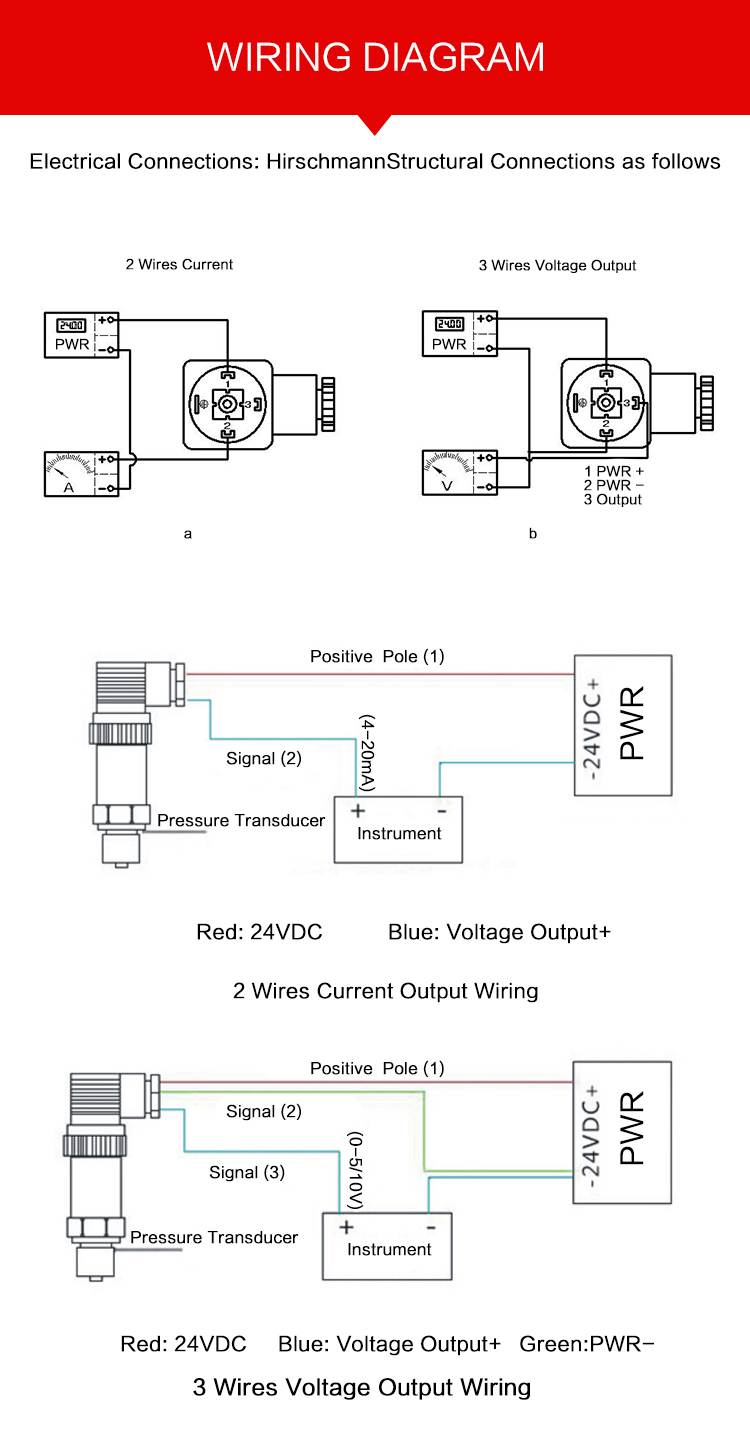

(3) Electronic connection? Direct lead, M12,Hirschmann,or Customized.
(4) Pressure port:M20*1.5,G1/4,1/4NPT,or customized?
(5) Your Quantity? For Delivery Cost.

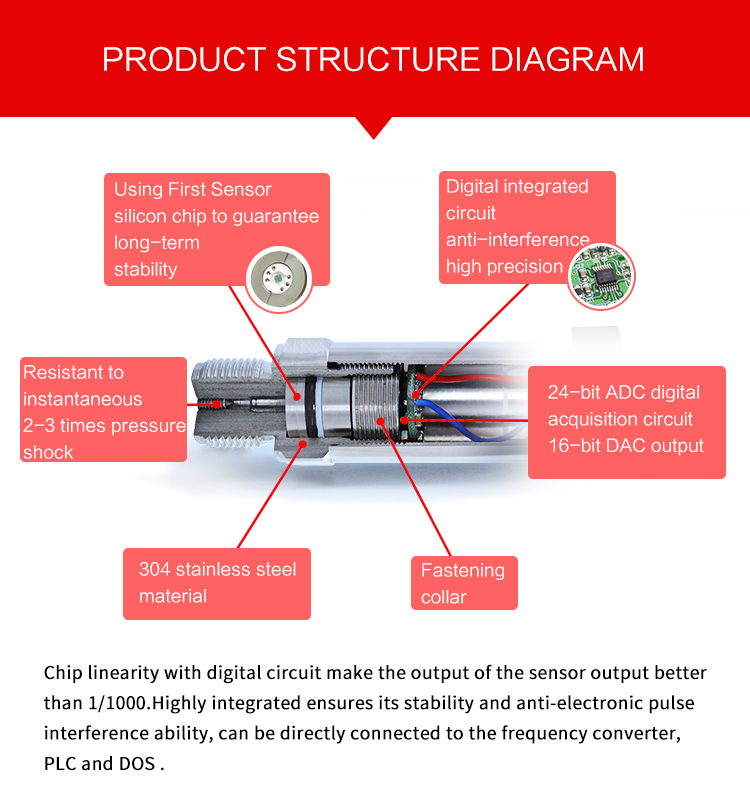

Product Description
Technical Specification
| Model | HD-131 |
| Measuring range | 0~100KPa |
| Pressure type | Gauge pressure, Absolute pressure |
| Overload | 150%F.S. |
| Output signal | 4~20mA, 0~5V, 0~10V, 1~5V |
| Power supply | 12~36VDC |
| Response time | <3ms |
| Accuracy | 0.1%FS,0.25%FS(standard), 0.5%FS |
| Long-term stability | ±0.1%F.S/year ±0.2%F.S/year |
| Load resistance | RL=(U-12V)/0.02A (4~20mA current output) U—loop voltage(V) |
| Operating temperature | -30~80℃ |
| Sorage temperature | -40~120℃ |
| Zero Tempe Drift | 0.2%FS/10℃ |

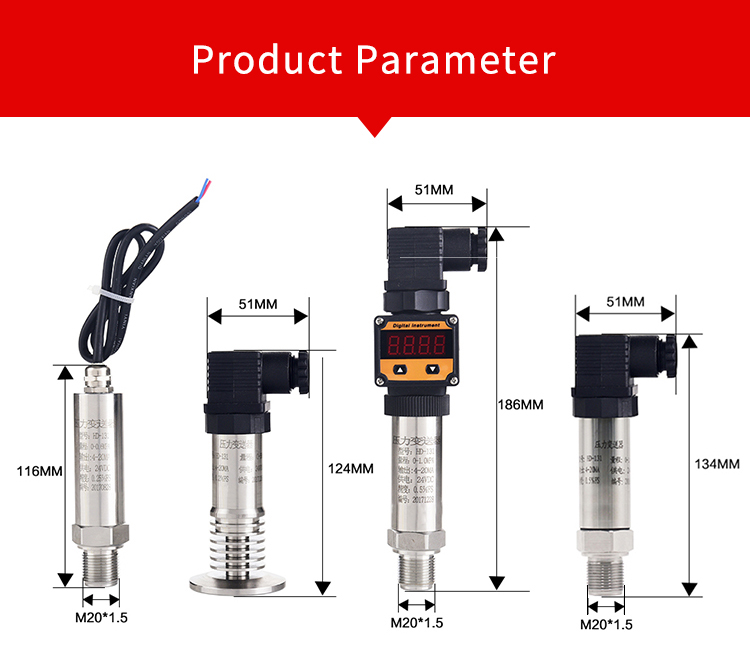

| Pressure connection | M20×1.5,G1/2,G1/4,1/2NPT(customer tailor) |

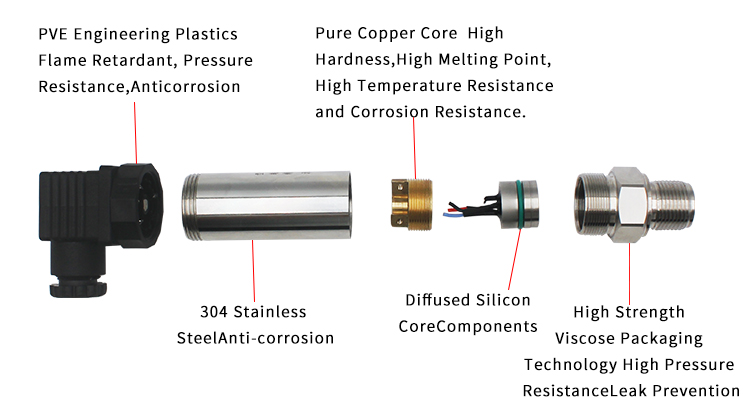

| Material | Stainless steel shell; internal sensor 316L |
| Protection grade | IP64 |
Digital display 4-20mA Pressure Transducer QD-131 0-10V Pressure Transmitter Pressure Sensor
Notes: Please contact us if you need more detailed protocol.

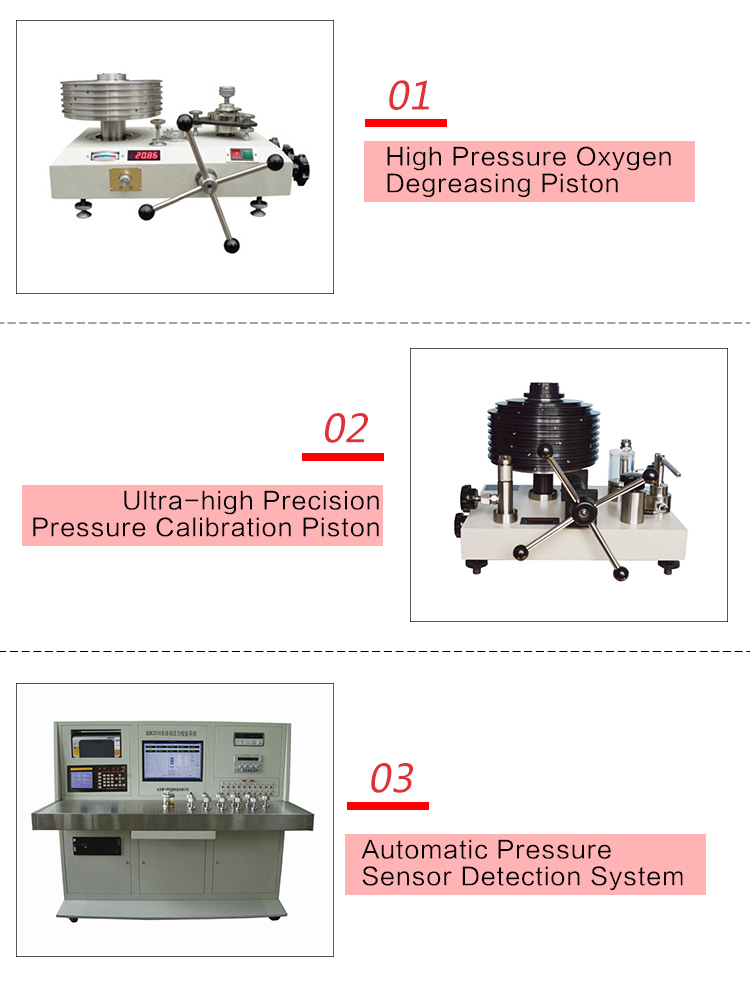

Certificates
