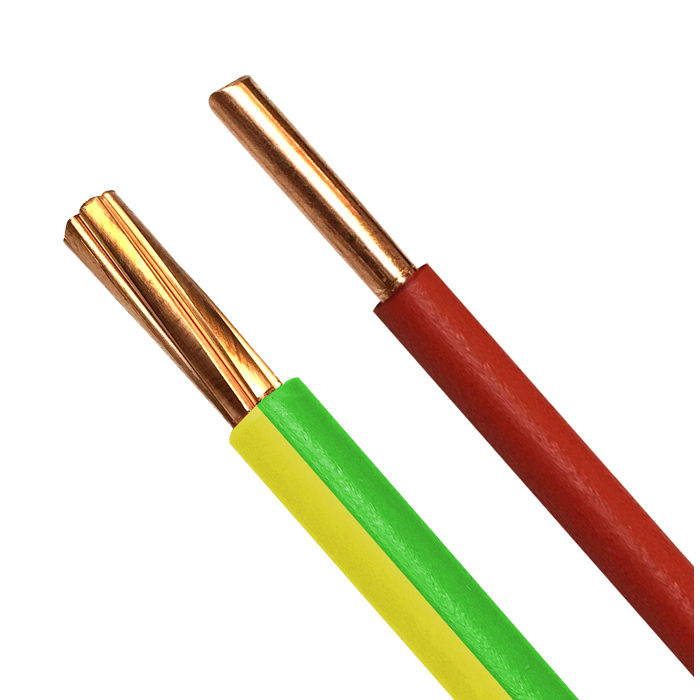

450/750V BV H05V-U H07V-R 1.5mm2 2.5mm2 4mm2 electric wire
| Price | N/A |
Product Description
PVC insulated wires and cables with rated voltage of 450 / 750V and below
This product is suitable for power, household appliances, instruments, small electric tools, power lighting, etc. with AC rated
ground voltage (UO / U) of 450 / 750V and below.
Usage characteristics:
1. Cable laying temperature ≥ 0 ℃
2. Working temperature of cable: except that the maximum working temperature of 60227iec07 (BV-90) and 60227IEC08 (RV-90) is 90
℃, the rest are 70 ℃.
3. Allowable bending radius: if the outer diameter (D) of the cable is less than 25mm, it shall not be less than 4D; If the
outer diameter (D) of the cable is 25mm or more, it shall not be less than 6D.
Electric Wire model purchase
1. Lighting generally uses 1.5 square single core hard wire (BV1.5), divided into live wire and neutral wire according to
different colors; 2. Sockets generally use 2.5 square single-core hard wires (BV2.5), and air conditioners above 3 HP generally use 4 square (BV4)
or above single-core wires;
3. The home bus generally uses a single-core wire of 6 square meters (BV6) or more;
4. Please consult online customer service for specific configuration and quantity, but please purchase according to the
requirements of the electrician first.
Model, name and specification of PVC insulated cable with rated voltage of 450 / 750V and below

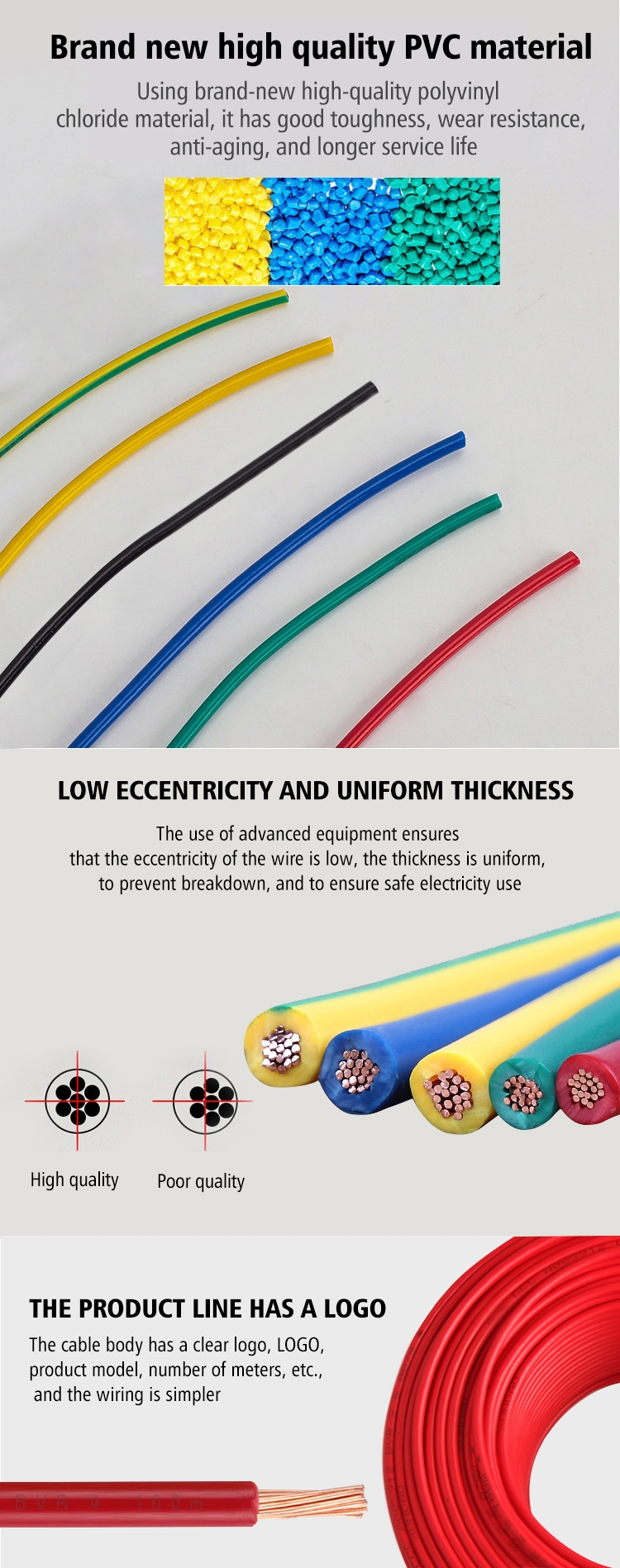

1. Softness unmatched by other ordinary cables
2. Excellent electrical insulation performance and stability
3. It has good mechanical properties and wear resistance
4. By adding special compounding agent, it can meet the high requirements of oil resistance, flame retardant, cold resistance and heat resistance.
Specification

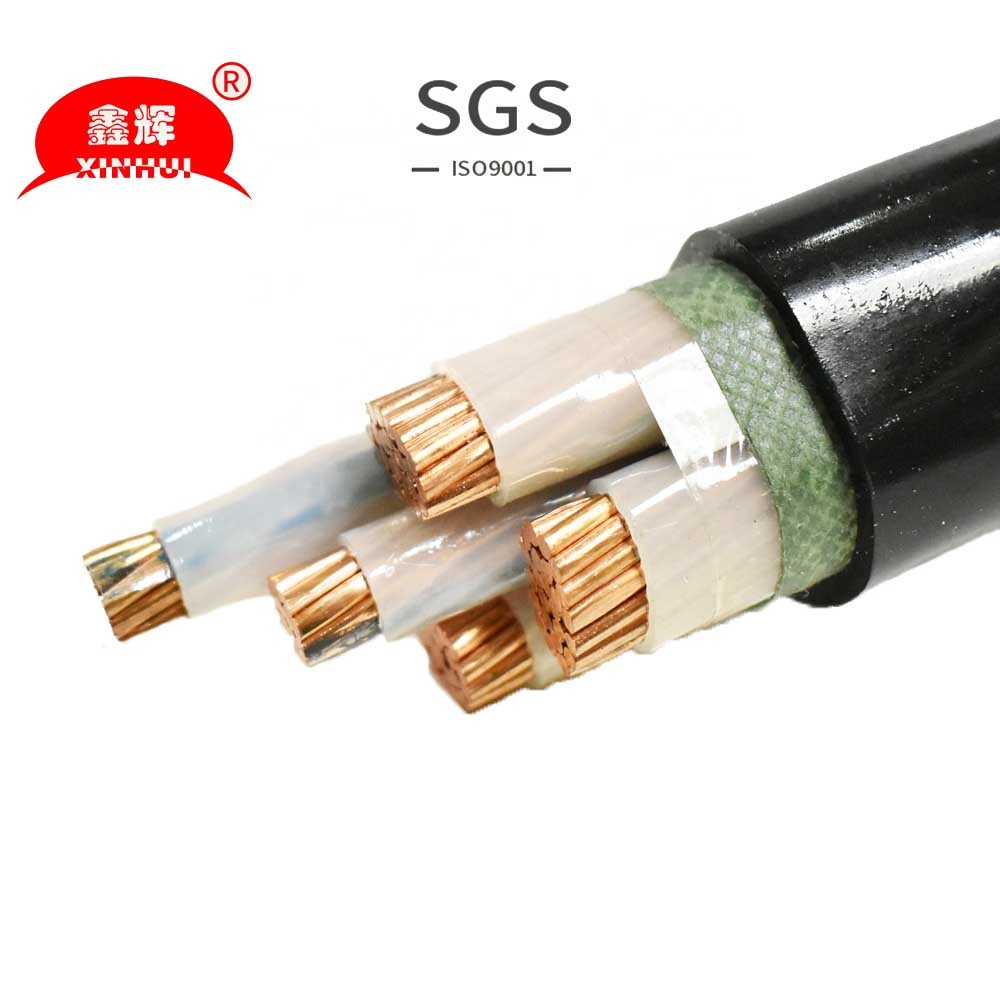

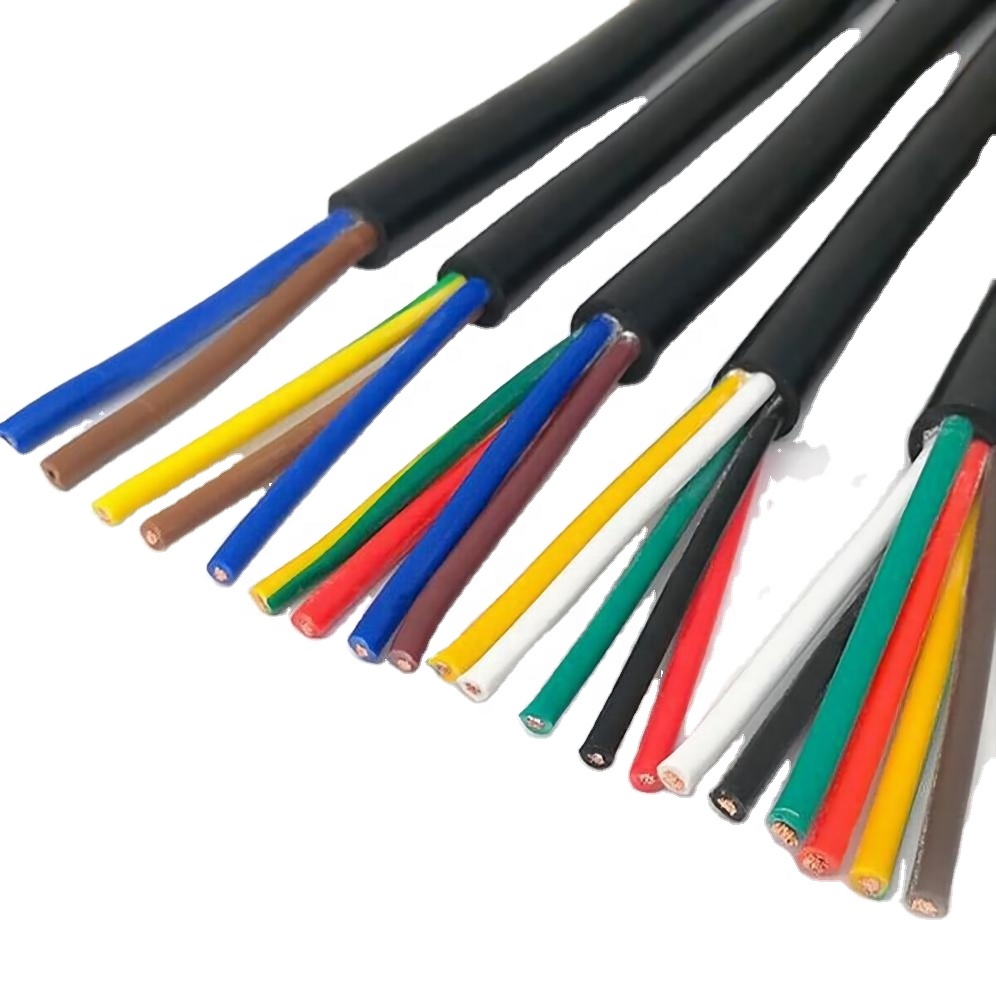

Main Products
