Jxk-10 Series 24vdc Current DC to DC 0-200A Sensor 4-20mA Analog Output 1 IN 1 OUT Current Transduce

Packaging & delivery

• Selling Units:

• Single item

• Single package size:

• 15X10X7 cm

• Single gross weight:

• 1.500 kg

• Package Type:

• Each unit has original individual box,all boxes are packed in standard packages.

• Lead time:

• Quantity(pieces)	1 - 50	51 - 200	>200
  Lead time (days)	7	15	To be negotiated

Video Description

00:00

00:45

Related Products

A Variety of Specification

To meet your requirements for current transmitting

Product Introduction

<1>Product uses: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<2>Product advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<3>Product application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
<4>The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<5>Full channel configuration,Parameter customizable.

NOTE:This link is for 1 in 1 out,DC 0-200A input,4-20mA output and 24vdc power supply.We are a manufacturer.So if you need other parameters,please contact us.

Technical Parameters

Dimension

Wiring Diagram

Selection

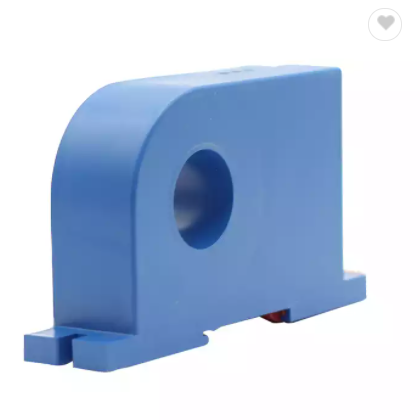

Product Display

Certifications

Company&Factory
