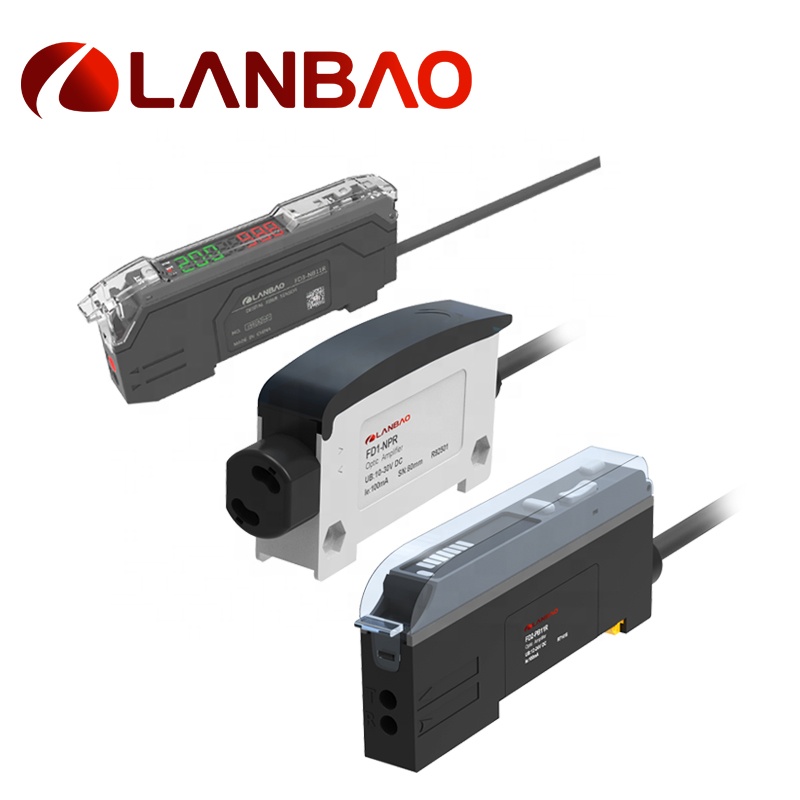

Lanbao Optical Fiber Amplifier Position Photoelectric Digital Fiber Optic Sensor

Overview

Essential details

• Model Number:

• FD2

• Type:

• Fiber Optic Senso

• Place of Origin:

• Shanghai, China

• Brand Name:

• Lanbao

• Usage:

• Positioning

• Description:

• Photoelectric sensor

• Voltage - Supply:

• 12~24VDC

• Consumption current:

• <60mA

• Voltage drop:

• <1V

• Load current:

• <100mA

• Ambient temperature:

• -10℃...+50℃(no icing)

• Protection degree:

• IP54

• Housing material:

• PC+ABS

• Insulation resistance:

• ≥50MΩ(500VDC)

Supply Ability

• Supply Ability

• 10000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

Lanbao Optical Fiber Amplifier Position Photoelectric Digital Fiber Optic Sensor
Carton box

• Port

Shanghai Guangzhou shenzheng yiwu ningbo etc

• Picture Example:

•



• Lead time:

• Quantity(pieces)	1 - 50	>50
  Lead time (days)	30	To be negotiated

Lanbao Optical Fiber Amplifier Position Photoelectric Digital Fiber Optic Sensor

● Industry leading dual monitoring mode ● Built-in high-speed digital processing chip ● Automatic and manual correction functions are optional ● Leading high-precision detection of similar products ● Exceeds the detection distance of conventional optical fibers ● Wiring system for easy installation and maintenance

Product Paramenters

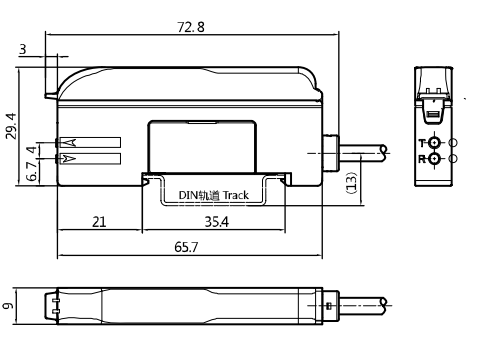

Dimension

Wiring diagram
