Lanbao New FD3 Series Proximity Fiber Amplifier Switch Photoelectric Fiber Sensor

Overview

Essential details

• Model Number:

• FD3-NB FD3-PB

• Type:

• Optical Proximity Sensor, photoelectric sensors

• Place of Origin:

• Shanghai, China

• Brand Name:

• Lanbao

• Usage:

• detection position sensor

• Output:

• PNP

• Description:

• Fiber amplifier

• Response time:

• 50μs(HIGH SPEED)/250μs(FINE)/1ms(SUPER)/16ms(MEGA)

• Output select:

• NO/NC Optional

• Supply voltage:

• 12...24VDC±10%, Ripple (P-P):≤10%

• Ambient temperature:

• -20...55℃(No freezing)

• Environment humidity:

• 35...85%RH(No condensation)

• Housing material:

• PC

Supply Ability

• Supply Ability

• 10000 Pack/Packs per Week

Packaging & delivery

• Packaging Details

Lanbao New FD3 Series Proximit Fiber Amplifier Switch Photoelectric Fiber Sensor
standard packaging

• Port

shangshai

• Lead time:

• Quantity(pieces)	1 - 1000	>1000
  Lead time (days)	15	To be negotiated

Lanbao New FD3 Series Proximit Fiber Amplifier Switch Photoelectric Fiber Sensor

Product Features
♦Sensitivity can be adjusted by simple operation and supports automatic calibration
♦ Support delayed response, increase detection stability
♦ Sensitivity one-key setting, accurate and fast setting
♦ Rich functions, easy to set up, and widely used
♦ Normally open and normally closed switchable
♦Fixed on DIN rail for easy installation and removal

Product Paramenters

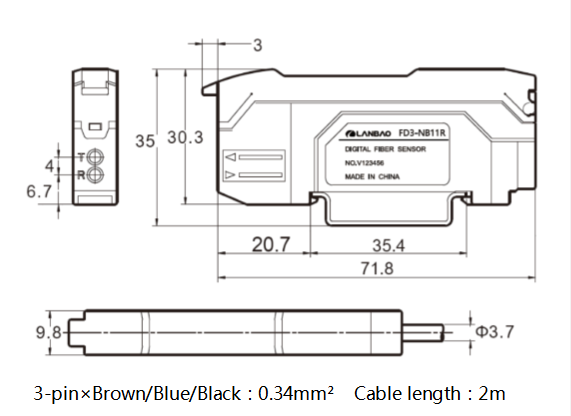

Dimension

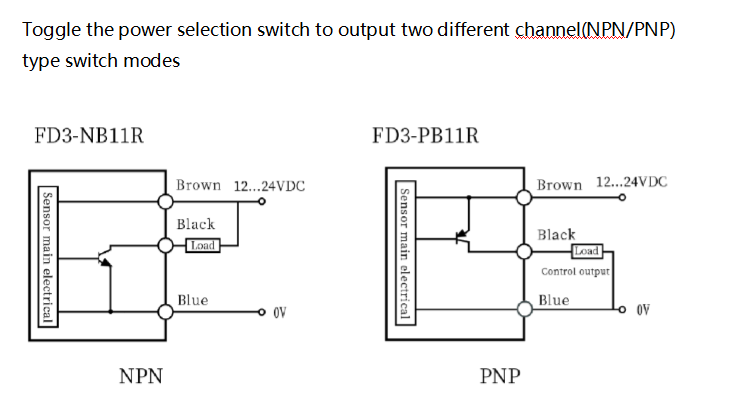

Wiring diagram

view more >>Recommended by seller

Lanbao Square 10mm NPN PNP DC 10-30V Proximity Capacitive Switch Auto Sensor With CE Certification

$13.48 - $18.87 / piece

1 piece

Lanbao NPN PNP 3 Or 4 Wires DC 10-30V M12 Auto Inductive Proximity Sensor With CE UL Certification

$6.67 - $10.67 / piece

1 piece

Lanbao PSE PNP /NPN NO/NC DC 10-30V 100mm Disuse Photoelectric proximity smart sensor

$11.44 - $18.30 / piece

1 piece

Long Distance M18 metal Dc 3 wires 4 Wires Inductive Proximity Switch Sensor With M12 Connector CE

$8.03 - $12.85 / piece

1 piece

LANBAO Small 3 Wire Good Quality Inductive Distance Sensor with Cylindrical Shape

$16.80 - $33.50 / piece

1 piece

LANBAO 5-24VDC Slot Photoelectric Optical Proximity Position Sensor with U Shape

$3.27 - $6.25 / piece

1 piece

Certifications

Our standard products already obtained ISO9001, ISO14001, ISO45001, OHSAS18001, CE, UL ,CCC,
ROHS certificates.

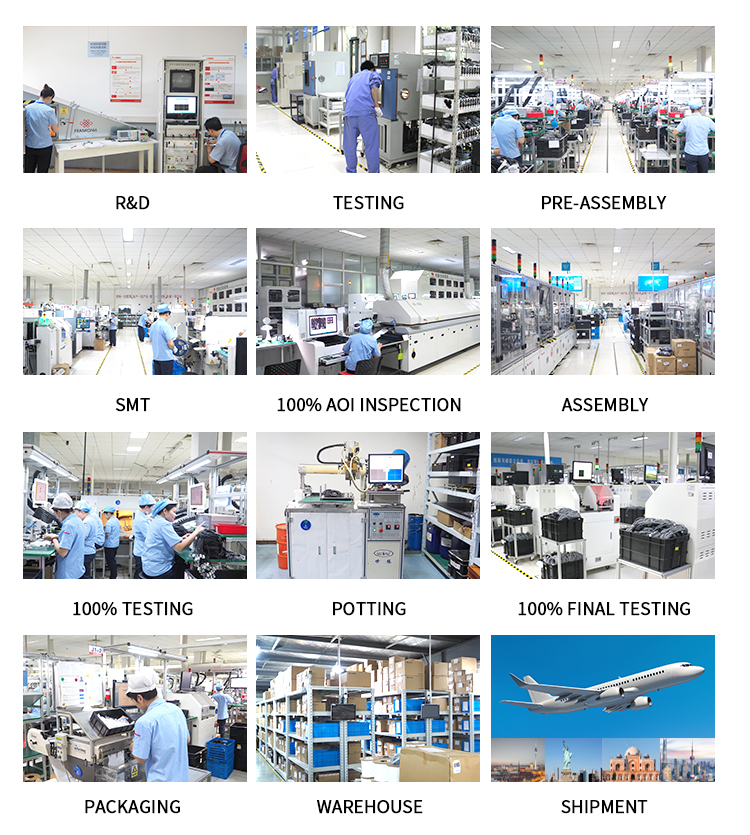

Factory Show
