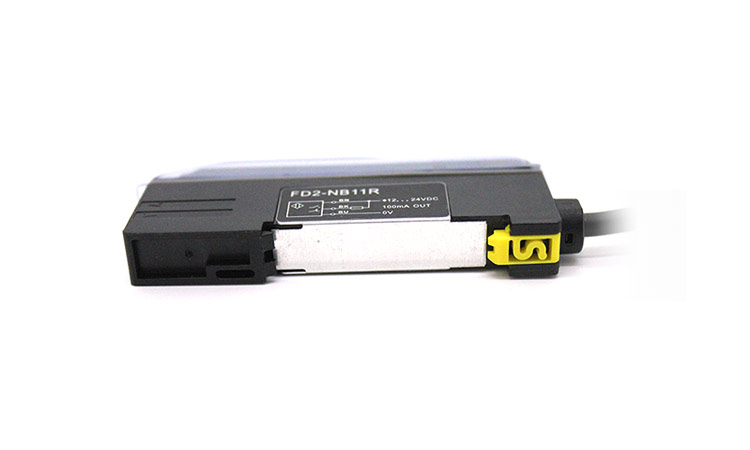

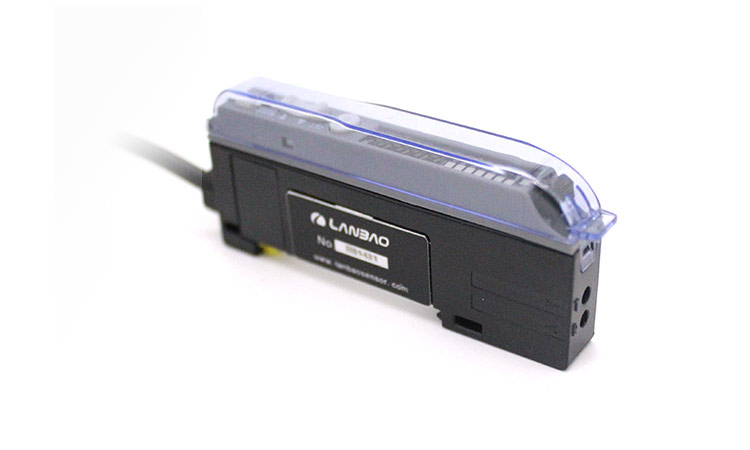

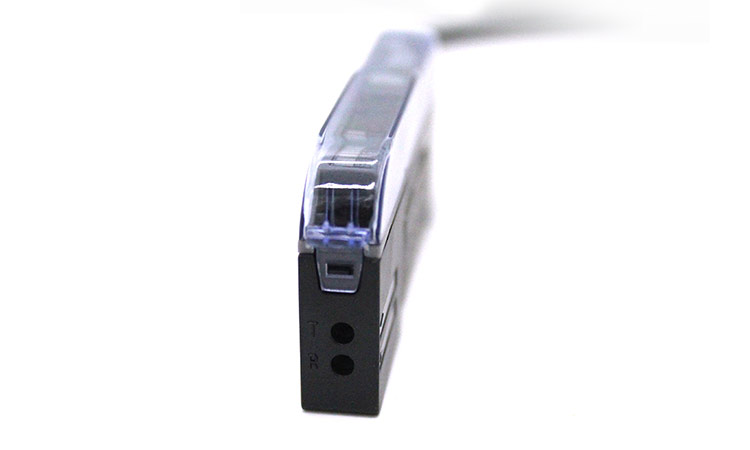

LANBAO Digital display fiber optic amplifier Chip missing detection object detection sensor FD2-PB12
| Price | ￥25.00/Piece |
| Min quantity | 1Piece |
| Quantity | 999Piece |
| Deliver | In 7 days |
Overview
Essential details
Model Number:
FD2-PB11R
Place of Origin:
China
Brand Name:
Lanbao
Usage:
Diigital display optical fiber Sensors
Theory:
Automatic and manual correction and
Output:
NPN NO/NC PNP NO/NC
Circuitprotection:
Surge,reverse polarity and Overload
Light source:
660nm red visible light
Function:
Emitter power optional Output time delay optional
Protection degree:
IP64
Supply Ability
Supply Ability
5000 Piece/Pieces per Week
Packaging & delivery
Packaging Details
Standards packing by carton
Port
Shanghai Guangzhou shenzheng yiwu ningbo etc
Video Description
NPN NC | FD2-NB11R |
NPN NC | FD2-NB12R |
NPN NC | FD2-NB10R |
PNP NC | FD2-PB11R |
PNP NC | FD2-PB12R |
♦ Lesding dual monitor mode |
♦ Build-in high-speed digital processing chip |
♦ Automatic and manual correction and calibration optional |
♦ High-precision detection |
♦ Super long sensing distance |
♦ Reasonable design wiring wiring system,easy to install and maintain |
Item Code | FD2 |
Power supply | 12~24VDC |
Current consumption | <60mA |
Voltage drop | <1V |
Response time | <200us(FINE) <400us(TURBO) <800us(SUPER) 410us~1.7ms |
Load current | <100mA |
Circuitprotection | Surge,reverse polarity and Overload protection |
Light source | 660nm red visible light |
Output indicate | 4LEDdigital display LED bar display |
Ambient temperature | -10~+50C(Doesnot freeze) |
Ambient light | Incandescent lamp3000lux sunlight100000lux |
Detection accuracy | >0.01mm(Depends on specific) |
Function | Emitter power optional Output time delay optional |
High voltage resistance | 1,000V/AC 50/60HZ 60s |
Insulationresistance | <50MΩ |
Anti-vibration | Amplitude : 0.5mm frequency:10...50Hz |
Anti-shock | 500m/s2(50G)for 3 times of ,X.Y,Z direction |
Protection degree | IP64 |
Housing material | PC+ABS |
Connection | 2M PVC cable |
