FD2-NB12R LANBAO Amplifier Type Photoelectric Sensors Digital Display Optical Fiber Sensor

Overview

Essential details

• Model Number:

• FD2-NB11R

• Type:

• Photoelectric Sensor

• Place of Origin:

• Shanghai, China

• Brand Name:

• LANBAO

• Output:

• NPN NO+NC, NPN NO/NC PNP NO/NC

• Description:

• Fiber Optic Sensor

• Output indicate:

• 4LEDdigital display

• Function:

• Emitter power optional

• Protection degree:

• IP54

• Sensing distance:

• Depand on fiber type

• Supply voltage:

• 12-24v

• Withstanding voltage:

• Ac1000v 1 minute 50/60hz

• Ambient temperature:

• -10--50

• Ambient humidity:

• 35-85%RH

• House material:

• PC+ABS

Supply Ability

• Supply Ability

• 50000 Piece/Pieces per Week

Packaging & delivery

• Packaging Details

FD2-NB12R LANBAO Amplifier Type Photoelectric Sensors Digital Display Optical Fiber Sensor
Standards packing by carton

• Port

Shanghai Ningbo Guangzhou Xiamen Shenzhen and so on

• Picture Example:

•



• Lead time:

• Quantity(pieces)	1 - 1000	>1000
  Lead time (days)	15	To be negotiated

Video Description

00:00

00:00

FD2-NB12R LANBAO Amplifier Type Photoelectric Sensors Digital Display Optical Fiber Sensor

*  Industry leading dual monitoring mode
*  Built-in high-speed digital processing chip
*  Automatic and manual correction functions are optional
*  Leading high-precision detection of similar products
*  Exceeds the detection distance of conventional optical fibers
*  Wiring system for easy installation and maintenance

Product Paramenters

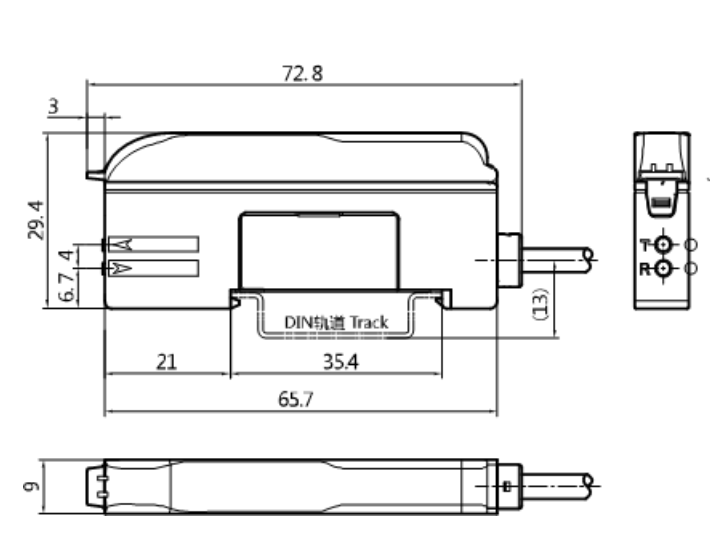

Dimension

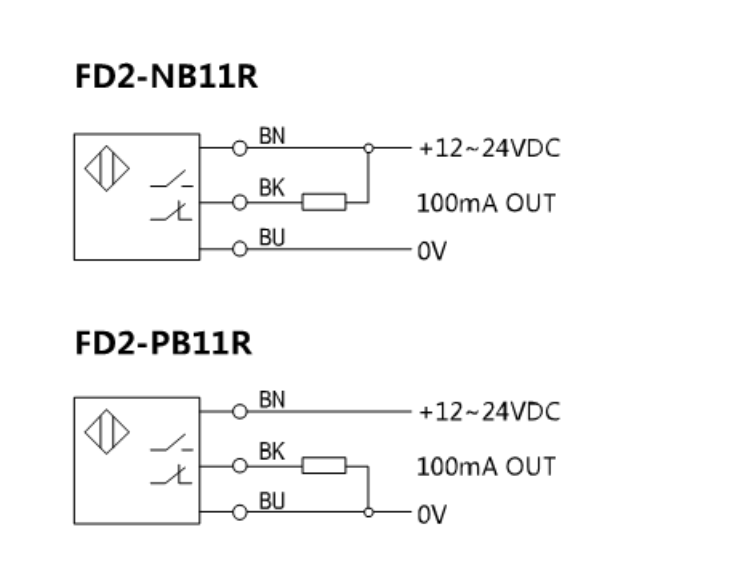

Wiring diagram
