Lanbao Plastic Laser Displacement Photoelectric Sensor Laser Sensor With Ip67 24vdc 4...20ma 50mm

Overview

Essential details

• Model Number:

• PDB-CR50TGI

• Type:

• Distance Laser Sensor

• Place of Origin:

• Shanghai, China

• Brand Name:

• LANBAO

• Usage:

• poistioning

• Theory:

• Laser Sensor

• Output:

• RS-485:10...30VDC;4...20mA:12...24VDC, Digital Sensor

• Description:

• PDB laser displacement sensor

• Rated distance:

• 50mm(adjustable)

• Full scale(F.S.):

• 30mm

• Load current:

• 200mA

• Voltage - Max:

• 24V

• Output Type:

• Push-pull output + RS485

• Size:

• Photoelectric sensors

• Size / Dimension:

• 65*51*23mm

• Voltage - Supply:

• RS-485:10...30VDC;4...20mA:12...24VDC

• Application:

• Suitable for various industrial occasions

Supply Ability

• Supply Ability

• 5000 Piece/Pieces per Week

Packaging & delivery

• Packaging Details

Lanbao Plastic Laser Displacement Photoelectric Sensor Laser Sensor With Ip67 24vdc 4...20ma 50mm
Standards packing by carton

• Port

Shanghai Guangzhou Ningbo Hangzhou

• Picture Example:

•



• Lead time:

• Quantity(pieces)	1 - 1000	>1000
  Lead time (days)	30	To be negotiated

Video Description

00:00

02:47

 Lanbao Plastic Laser Displacement Photoelectric Sensor 24vdc 4...20ma 50mm Laser Sensor With Ip67

 Product Features

♦Exquisite appearance and light plastichousing, easy to mount and dismount

♦only by pressing Long and short combination of two keys S, T to com-plete all function settings fastly

♦0.5mm diameter light spot to accurately measure very tiny objects

♦Key or remote teach-in to easily set response time for different applica-tions

♦Powerful function setting and flexible output way

♦Completeshieldeddesgin,strongeranti-interferenceperfomance

♦IP67 protection degree, able to work in water or dusty environment

Specifications

Part number

Technical specifications

Remark:

A Test conditions:Standard data at 23 ± 5 °C;Supply voltage 24VDC;30 minutes' warmup before test;Sampling

period 2ms;Average sampling times 100;Standard sensing object 90% white card

B The statistical data follows the 3σ criteria

C Repeat accuracy:23 ± 5 °Cenvironment,90% reflectivity white card,100 test data results

D Slave address,baud rate setting only for RS-485 series

E Protecion circuit only for switch output

F Product operation steps and precautions in "Operation manual"

Dimension                                                                                                                    unit:mm

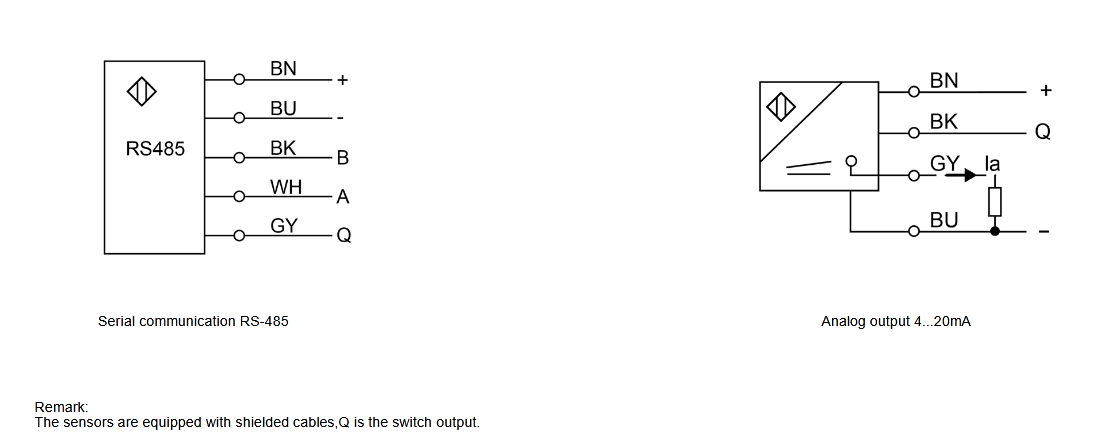

Wiring diagram

Packaging & Shipping

Packing

Packaging is designed according to specific products for better protection.

Company Information

about Lanbao

Shanghai Lanbao sensing technology Co.,Ltd, member of China Instruments Manufacturers AssociationGoverning Units,

established in 1998 in Shanghai, a leading domestic industrial automation product supplier,specializing in the research,

development, production, sale and service of industrial sensors, sensor measurement  and control systems.

Our products cover over 30 series, 5000 specifications, including inductive sensor, photoelectric sensor,capacitive

sensor,light curtain,laser distance measuring sensors. Our products are widely used in warehouse logistics, parking,

elevator,packaging,semi conductor, drone, textile, construction machinery, rail transportation,chemical, robot industry.

Our advantage

1 day shipping guarantee for stock item

20+ years OEM & ODM history with global top sensor brands

20+ years sensor manufacturing experience

90+ global R&D patents and copyrights

500+ employees(100+in R&D)

5000+ specification products

33000 sqm factory

3,000,000 pcs products per year

Factory show

Factory show

We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40 products lines

including complete production lines which worked with Mitsubishi (Japan). 200 staffsin production line and 3 million

products  per year.

Why choose us

Our certificates

Our standard products already obtained  ISO9001, ISO14001, OHSAS18001, CE, UL ,CCC,ROHS certificates.

International Exhibitions

We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US), SPS(Germany),SPS

(Guangzhou) and other  industrial shows  (textile, robot, elevator, logistic etc.) .As a professional sensor manufacturer

with core  competitiveness and complete value chain, our products sell well in more than 100 countries in the world,

allowing more customers to appreciate the charm of “passing the world, sensing the future”.

Our partners

Specializing  in  precision,Lanbao always adheres to the business philosophy  of”Quality First,Reasonable  Price, prompt

Delivery, and  Attentive  Service", maximize the needs and continuously create long-term value and potential growth for

customers.With comprehensive and efficient services Lanbao's footprint has now spread to more than 100 countries and

regions around the world such as US, Canada, Germany Thailand etc.

Our customers

Specializing in precision, Lanbao always adheres to the business philosophy of “Quality First, Reasonable Price, prompt

Delivery, and Attentive Service”, maximize the needs and continuously create long-term value and potential growth for

customers. With comprehensive and efficient services, Lanbao’s footprint has now spread to more than 100 countries

and regions around the world ……

Our team

Before-sales Services

1.24-hours online service;is available here. once you have any questions, just contact us and our professional staff

will reply very quickly. Email, Skype, Whatsapp or online Message are acceptable;

2.Market information;also will be provided. Since we are an experienced manufacturer of sensor, the market information

about sensors will be offered as long as you need.

On-purchase Services:

1.The information of sensors that we provided is fully presented including product details, pictures, delivery and so on;

2.All your problems or worries will be solved quickly by our sales. It is worth noting that the;prices of our; sensors;are

quite;negotiable. We have large discount for big quantity;

After-sales Services

1. The;warranty periodis 12 months.;

2. If we send the;wrong parts;to you, free replacement will be available.

3. As for the;installation of the parts, if you have any questions, do not hesitate to contact us at any time.

FAQ

FAQ

Q : What is the MOQ?

A : 1pcs for our own available designs

Q : Can I customize a special sensor?

A : Sure

Q : Can I get a lower price if I order large quantities?

A : Yes, Cheaper prices with bigger size orders

Q : Can I get a sample?

A : Of course, but you need to pay the minimum sample fee

Q : When will you ship my order?

A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items.

Q : How about the quality guarantee period ?

A : Our warranty period is one year since from shipping date.

Q : Can I add or delete items from my order if I change mind?

A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.

Q : How can you guarantee the production quality?

A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional

sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.
