Lanbao 100000lx Ambient Light 850nm Infrared LED Infrared Distance Measuring Laser Sensor

Overview

Essential details

• Model Number:

• PSK-CM10JL55-BC4

• Place of Origin:

• Shanghai, China

• Brand Name:

• LANBAO

• Brand:

• Halios Infrared Distance Measuring Sensor

• Output mode:

• UART-TTL

• Response time:

• 40ms or 20ms

• Repeat accuracy:

• 5% or 10%

• Detection accuracy:

• 5% or 10%

• Current consumption:

• ≤120mA ≤70mA

• Supply voltage:

• 5VDC

• Light source:

• Infrared LED (850nm)

• Ambient light:

• 100,000lx

• Divergence angle:

• ±1.8°

• Output interface:

• UART-TTL/IIC

Supply Ability

• Supply Ability

• 5000000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

Standards packing by carton

• Port

Shanghai HongKong Guangzhou Shenzhen Ningbo,etc.

• Lead time:

• Quantity(pieces)	1 - 1000	>1000
  Lead time (days)	35	To be negotiated

Video Description

00:00

01:37

Lanbao 100000lx Ambient Light 850nm Infrared LED Infrared Distance Measuring Laser Sensor

Product Features

1 The measurement principle is by detecting the phase difference of pulsed light. The resolution
is as high as millimeters;

2 based on patent HALIOS photoelectric technology, the ambient light anti-jamming property
contributes to powerful outdoor performance with tiny drifts under wide temperature range;
3 Barely no change would be caused in read-out data by the target diversity such as colors,
roughness or material types;

4 Enable to do the long-distance measurement and the detective range is up to 10m.

1,PSK-CM10Jx55-C1/PSK-CM10Jx04-C1 is the world's first-class infrared photoelectric distance sensor. The reliable

measurement distance can reach 10m, and it is insensitive to the color or flatness of the object. The unique HALIOS
technology and photoelectric phase distance measurement technology can achieve high accuracy distance measurement

and greatly improve the stability, which can be used in many severe environments.
2,The PSK is integrated with a high power 850nm infrared LED transmitter and a highly sensitive photodiode receiver.

The professional optical design allows to minimize the product volume while taking the optical properties into account .
The internal optical lenses use special materials that are sensitive to infrared light only, which can significantly improve

the product immunity against ambient light with negligible effect on returned signal
3,In addition, the advanced compensation mechanism and data processing algorithm for the internal configuration of the

sensor have greatly improved the reliability and stability of the sen

Specifications

Part number

Technical specifications

 Note:

♥Detected distance is 0.8 Sn (Max detecting distance) when applying white card with 90% reflection rate.
♣Detected distance is 0.8 Sn (Max detecting distance). Detected distance difference when applying black card and white card

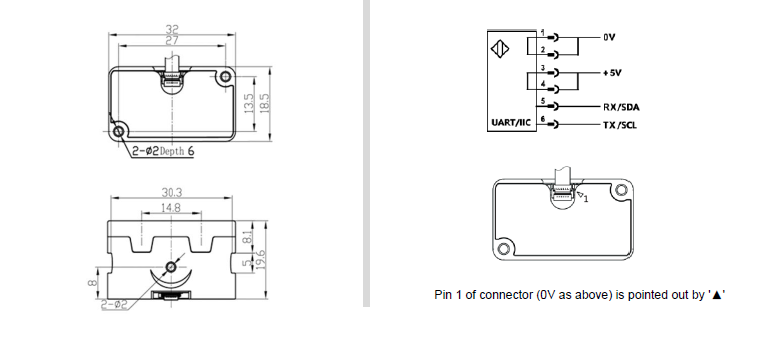

Dimension                                                                        Wiring diagram

Packaging & Shipping

Packing

Packaging is designed according to specific products for better protection.
