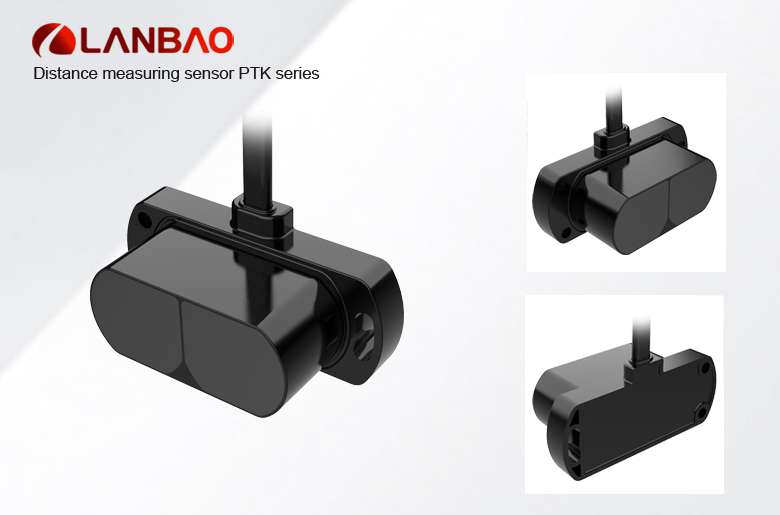

Lanbao Adjustable 12m Range Rs485 Tof Infrared Distance Laser Measuring Sensor

Overview

Essential details

• Model Number:

• PTK

• Type:

• Photoelectric Sensor

• Place of Origin:

• Shanghai, China

• Brand Name:

• LANBAO

• Usage:

• Positioning, Position Sensor

• Output:

• Rs485, Digital Sensor

• Description:

• Distance Laser Measuring Sensor

• Measuring range:

• 0.15...12m

• Light source:

• Infrared LED

• Output ways:

• RS485/Push pull

• IP degree:

• IP67

• Resolution:

• 1mm

• Housing material:

• ABS

• Theory:

• Optical sensor

Supply Ability

• Supply Ability

• 5000 Piece/Pieces per Month

Packaging & delivery

• Packaging Details

Package: 100pcs/CTN,
Gross weight: 9kgs/CTN,
Volume: 0.01CBM/CTN.

• Port

Shanghai

• Picture Example:

•

• Lead time:

• Quantity(pieces)	1 - 100	101 - 1000	1001 - 10000	>10000
  Lead time (days)	7	15	30	To be negotiated

Video Description

00:00

03:12

Lanbao  Adjustable 12m Range Rs485  Tof Infrared Distance Laser Measuring Sensor

Product Features

♦The measurement principle is by detecting the phase difference of pulsed light. The resolution is as high as millimeters;
♦based on patent HALIOS photoelectric technology, the ambient light anti-jamming property contributes to powerful outdoor performance with tiny drifts under wide temperature range;
♦Barely no change would be caused in read-out data by the target diversity such as colors, roughness or material types;
♦Enable to do the long-distance measurement and the detective range is up to 12m.

♦Electromagnetic compatibility and high degree of protection for industrial applications.

Specifications
