Photoelectric Sensor, Distance measuring sensor
Place of Origin:
Shanghai, China
Description:
photoelectric sensor
Detection distance:
80...500mm
Supply voltage:
RS-485:10...30VDC; 4...20mA: 12...24VDC
Light source:
Red laser(650nm);Laser level:Class 2
Linear accuracy:
RS-485:±0.3%F.S. 4...20mA: 12...24VDC
Supply Ability
Supply Ability
10000 Piece/Pieces per Week
Packaging & delivery
Packaging Details
standard packaging
Port
Lead time:
| Quantity(pieces) | 1 - 1000 | >1000 |
| Lead time (days) | 15 | To be negotiated |
Video Description
00:00
03:00

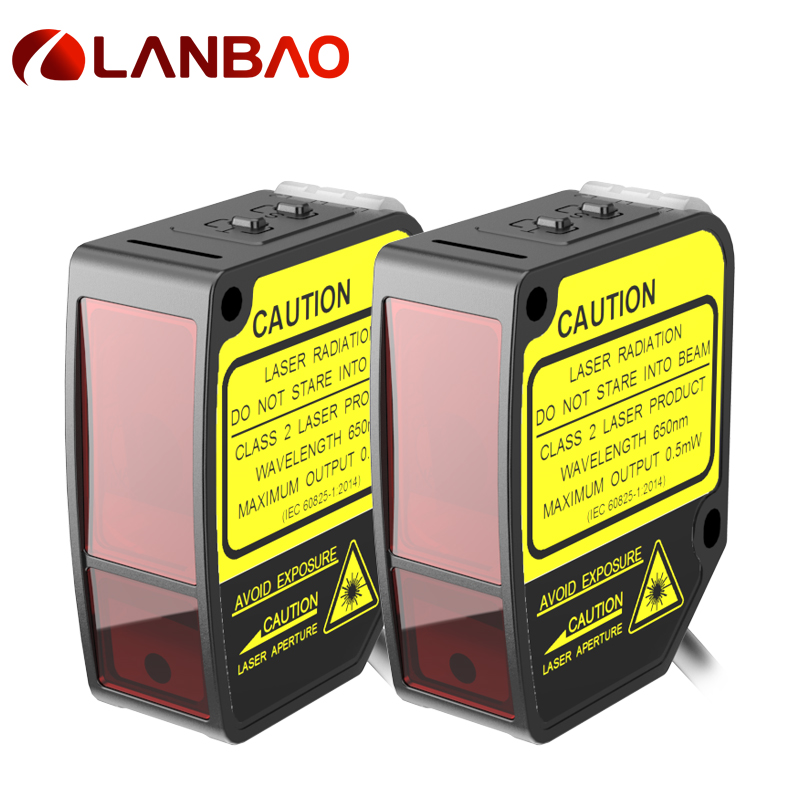

LANBAO IP67 Plastic Laser Distance Measuring Sensor with OLED Display CE
♦Exquisite appearance and light aluminum housing, easy to mount and dismount
♦Convenient operation panel with visualized OLED display to complete all function settings fastly
♦Small dismeter light spot to accurately measure very tiny objects
♦Key or remote teach-in to easily set response time for different applications
♦Powerful function setting and flexible output way
♦Complete shielded design, stronger anti-interference performance
♦IP67 protection degree, able to work in water or dusty environment
Product Paramenters
Part number |
RS-485 | PDB-CC50DGR | 4...20mA | PDB-CC50TGI |
Technical specifications |
Measuring range | 80...500mm | Temperature drift | ±0.02%F.S./°C |
Supply voltage | RS-485:10...30VDC 4...20mA:12...24VDC | Indicator | Power indicator:Green LED Action indicator:Yellow LED
Alarm indicator:Yellow LED |
Consumption power | ≤700mW | Accessory | Screw(M4×35mm)×2,Nut×2, Washer×2,Mounting bracket,Operation manual |
Load current | 200mA | Protection circuit4. | Short circuit, reverse polarity, overload protection |
Voltage drop | <2.5V | Built-in function5. | Slave address&Port rate setting; Average setting; Product self-check |
Light source | Red laser(650nm);Laser level: Class 2 |
| Analog map settings; Output setting; Restore factory settings |
Light spot | φ2.5mm@500mm |
| Single point teach; Window teach; Parameter query |
Resolution | 15um@80mm;500um@500mm | Service environment | Operation temperature:-10...+50°C |
Linear accuracy1.2. | ±0.3%F.S. |
| Storage temperature:-20...+70°C |
Repeat accuracy1.2.3. | 30um@80mm;250um@250mm;1000um@500mm |
| Ambient temperature:35...85%RH(No condensation) |
Output1 | RS-485(Support Modbus protocol) | Anti ambient light | Incandescent light:<3,000lux |
Output2 | PUSH-PULL/NPN/PNP And NO/NC Settable | Protection degree | IP67 |
Distance setting | RS-485: Keypress 4...20mA: Keypress setting | Material | Housing:ABS; Lens cover:PMMA |
Response time | 2ms/16ms/40ms Settable | Vibration resistance | 10...55Hz Double amplitude 1mm,2H each in X, Y, Z directions |
Dimension | 65*51*23mm | Impulse resistance | 500m/s²(about 50G)3 times each in X,Y,Z directions |
Display | OLED Display(size:14*10.7mm) | Connection way | RS-485:2m 5pins PVC cable 4...20mA: 2m pins PVC cable |
Remark:
1.Test conditions:Standard data at 23 ± 5 ℃ ;Supply voltage 24VDC;30 minutes' warmup before test;Sampling period 2ms;Average
sampling times 100;Standard sensing object 90% white card
2.The statistical data follows the 3σ criteria
3.Repeat accuracy:23 ± 5 ℃ environment,90% reflectivity white card,100 test data results
4.Slave address,baud rate setting only for RS-485 series
5.Protecion circuit only for switch output
6.Product operation steps and precautions in "Operation manual" |

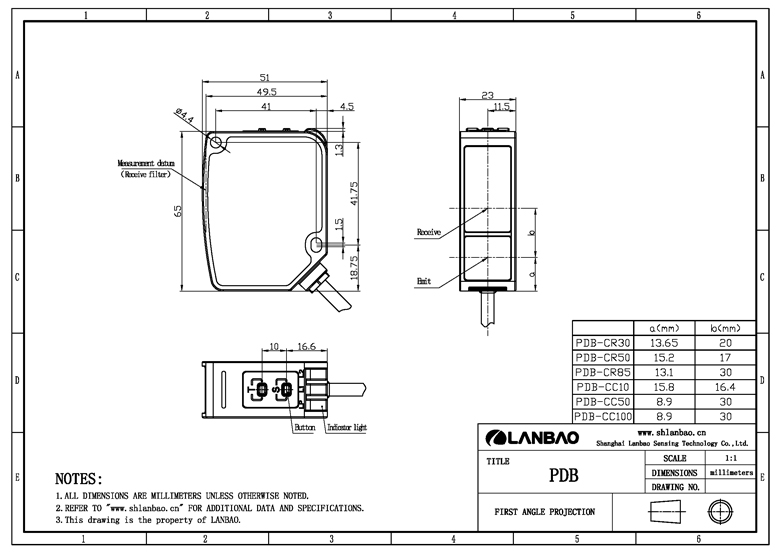

Dimension
