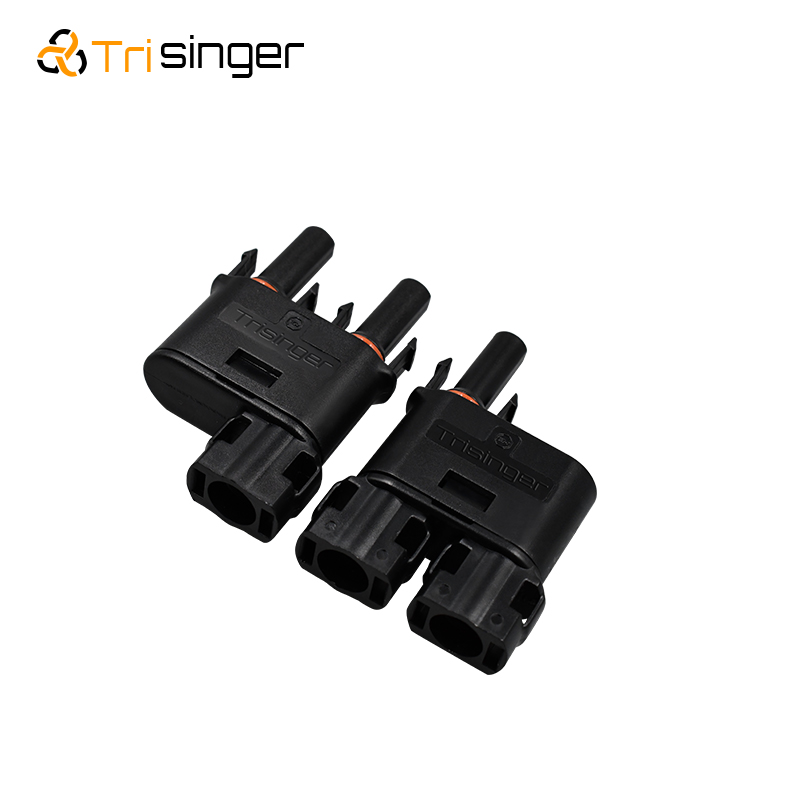

Trisinger good quality TUV certified IP68 waterproof 2o1 3 to1 1500v branch solar cable connector
2022-11-18 16:0310260
| Price | ￥2.68/Piece |
| Min quantity | 1000Piece |
| Quantity | 10000000Piece |
Advantages of 2 to 1 solar Y branch connector
Simple on-site processing.
Mating safety provided by keyed housings.
Mutiple plugging and unplugging cycles.
Accomodates PV cable with different insulation diamaters.
High voltage and current carrying capacity.
TUV and CE approved.
Crimp connection.
IP68 strongly waterproof
Technical Data
Technical Data
Insulation material: | PPO | Rated current: | 50A |
Test voltage: | 8000V(50Hz,1min) | Rated voltage: | 1000V DC/1500V DC |
| Contact resistance: | <1mΩ | Degree of protection: | IP2X/IP68 |
| Overvoltage category: | CATIII/2 | Contact material: | Copper,tin plated |
Safety class: | II | Flame class: | UL94-V0 |
| Temperature range: | -40℃ ~ +85℃ | Insertion force/ withdrawal force: | ≤50N / ≥50N |

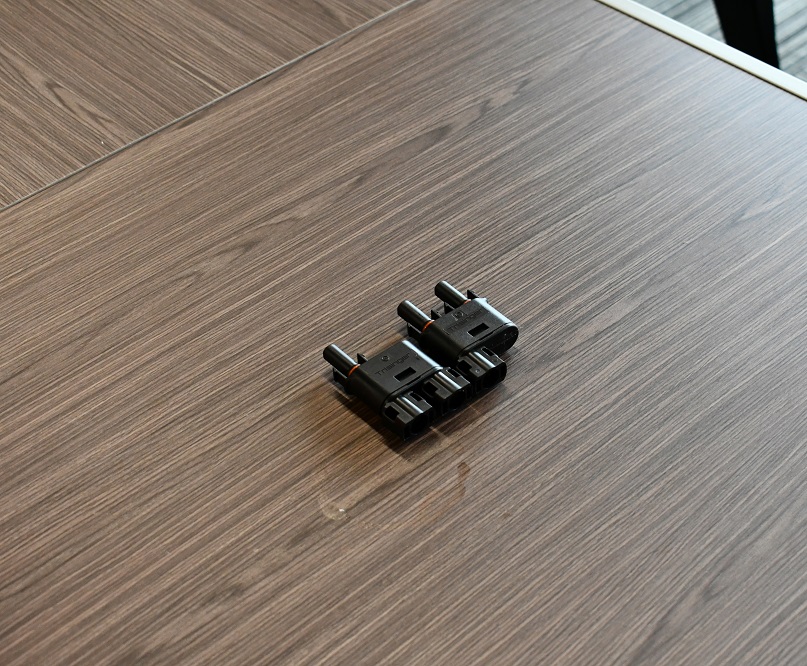

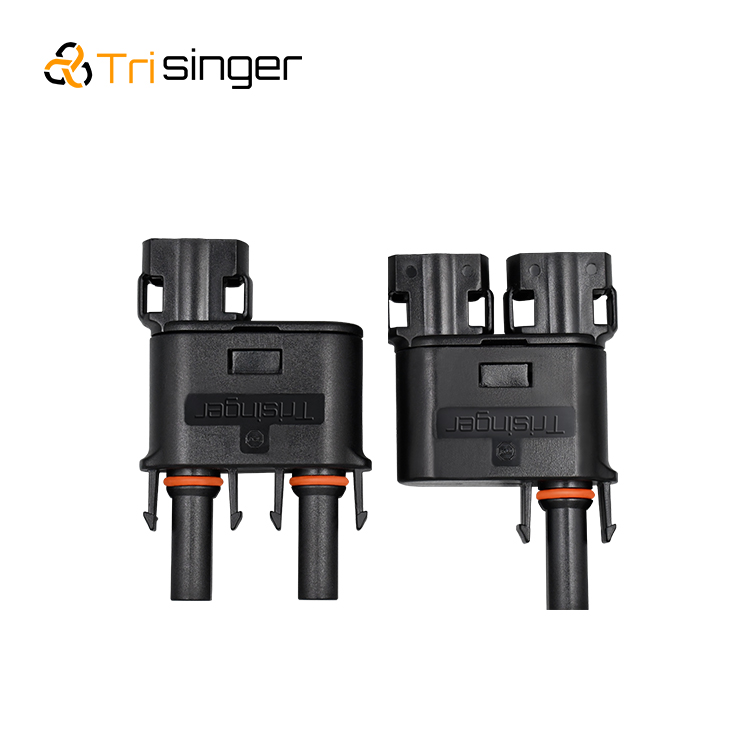

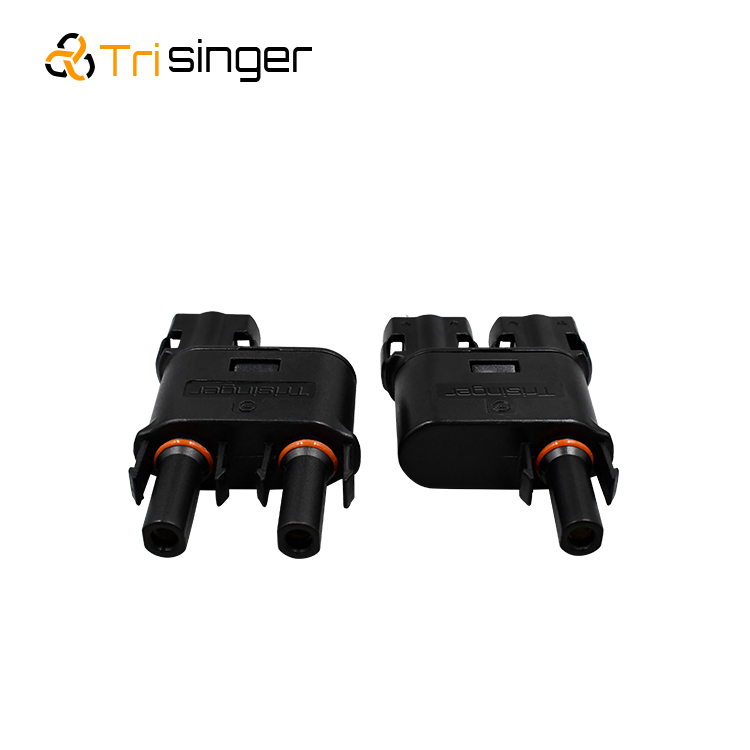

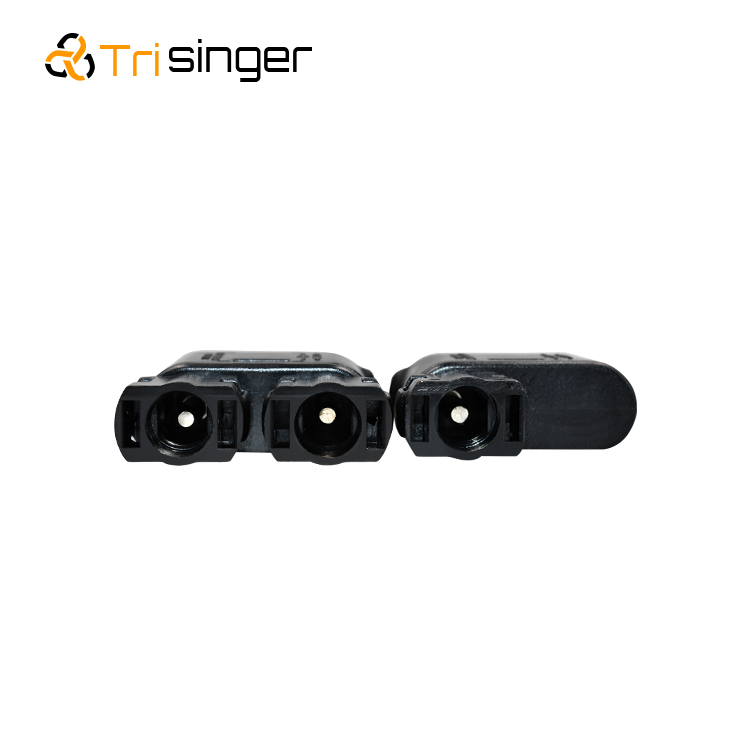

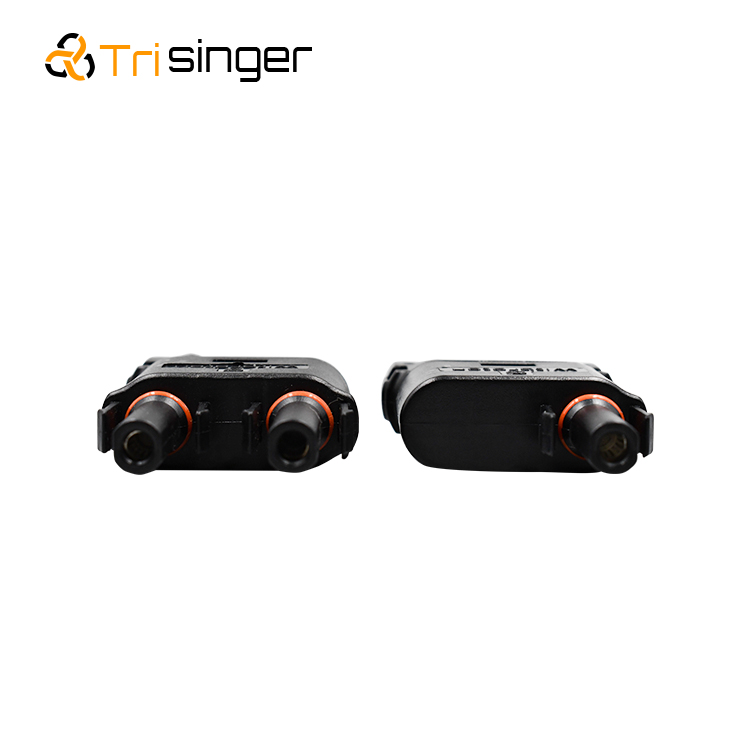

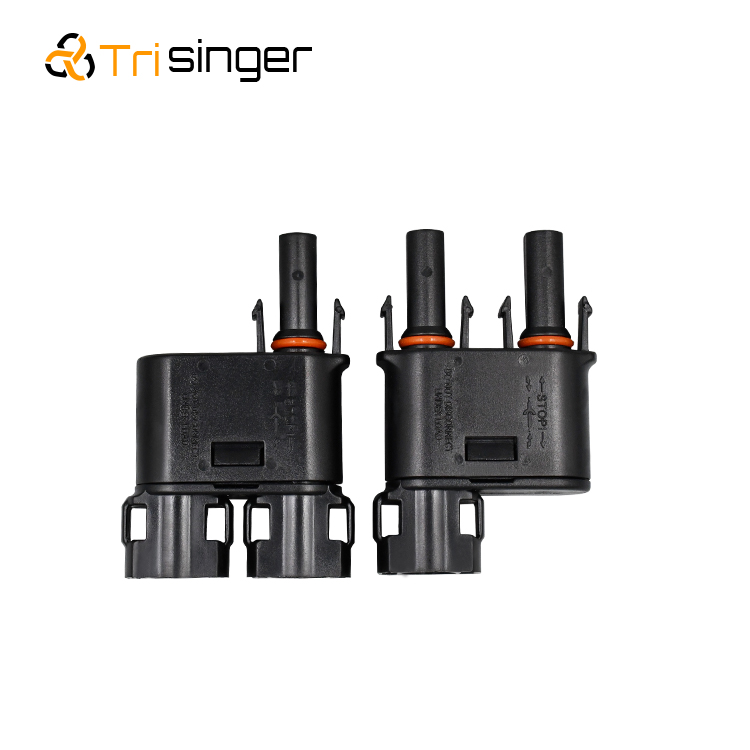

Detailed Images
Detailed Images
Application
Company Information
Packaging & Shipping
Cooperation Case
