2022 best factory high quality fashion xlpe dual core wire solid 4mm for solar panel collecting cabl
2022-11-18 16:119640
| Price | ￥0.80/Piece |
| Min quantity | 100Piece |
| Quantity | 10000000Piece |
2022 best factory high quality fashion xlpe dual core wire solid 4mm for solar panel collecting cable
Product Description
TYPE | Cross Section | Wire Strand | Conductor Diameter | Outer Diameter | Conductor Resistance | Rated Voltage | Rated Current |
mm2 | No.OD (mm) | mm | mm | Ω/Km | V DC | A | |
2X2.5mm2 | 2.5 | 48XΦ0.25 | 2.0 | 6.2*9.90 | 8.06 | 1500 | 30 |
2X4.0mm2 | 4.0 | 56XΦ0.30 | 2.6 | 6.9*11.30 | 4.97 | 1500 | 50 |
2X6.0mm2 | 6.0 | 81XΦ0.30 | 3.3 | 7.1*14.50 | 3.52 | 1500 | 70 |

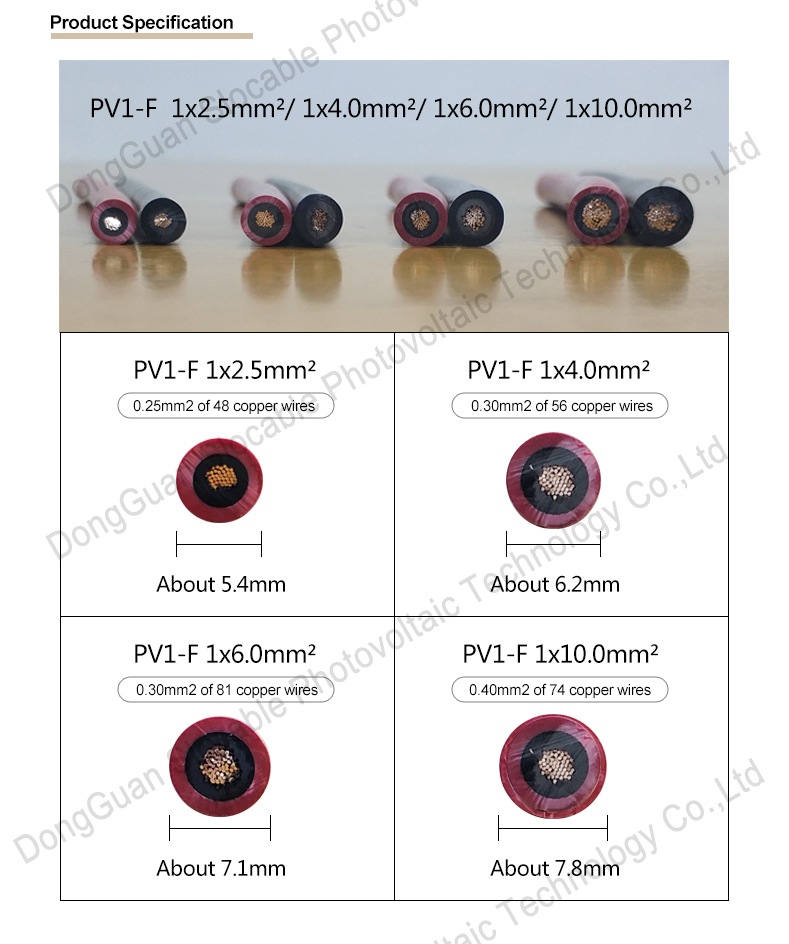

Technical Date of Electrical Solar Cable
(We also produce twin core of 4mm2, 6mm2, as well as single core,please consult me directly if necessary)
Double Cores 4mm Cable:

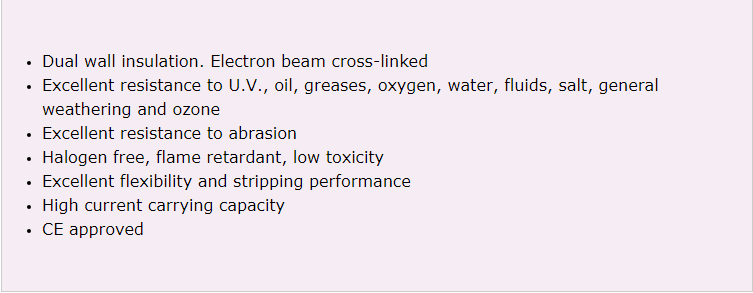

Advantages
Customer feedback
Certifications
Company Information
